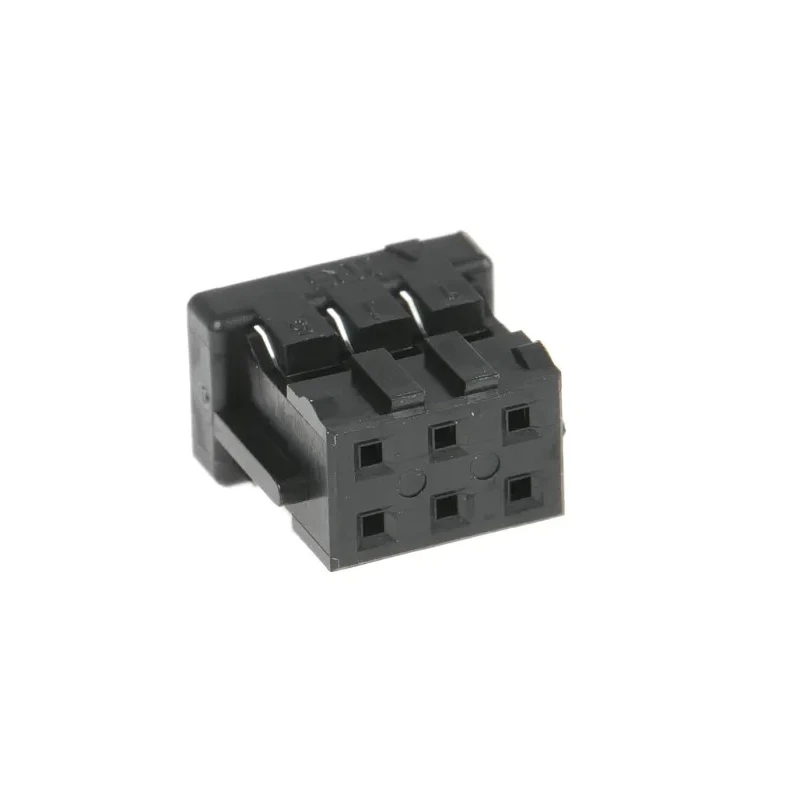

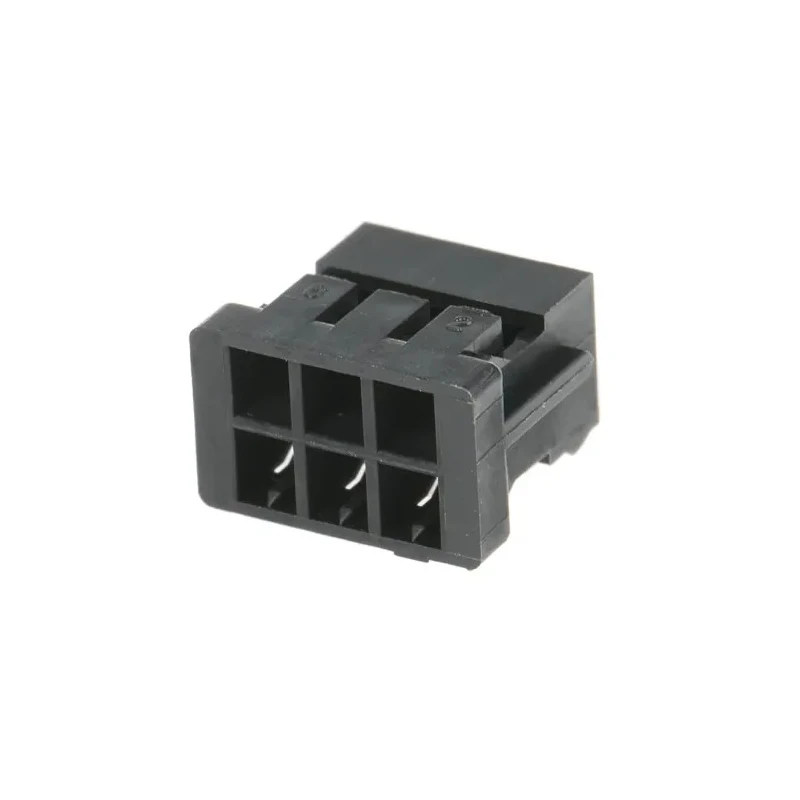

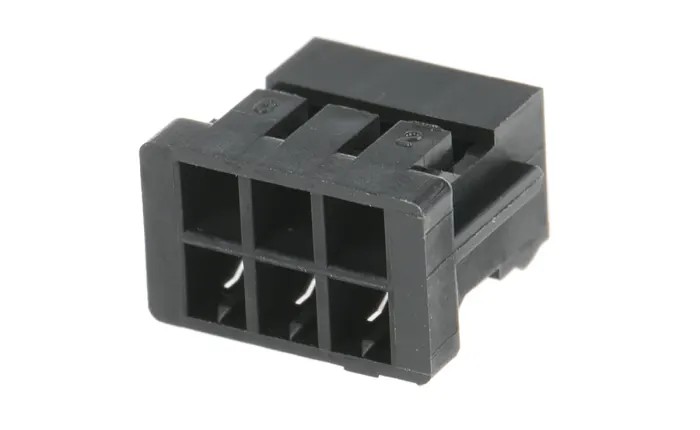

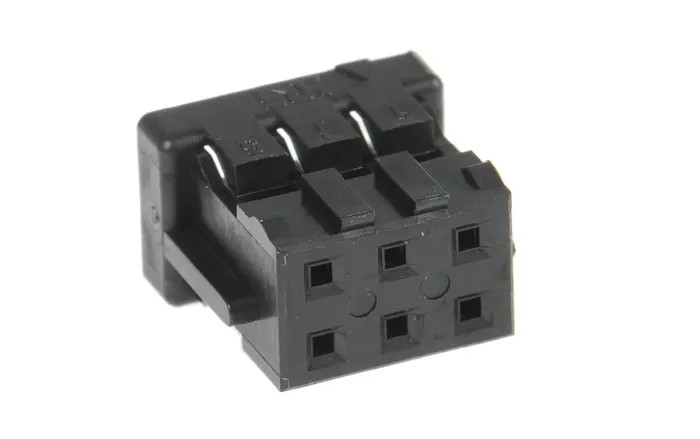

Hirose DF11 Female Connector Housing 2 mm Pitch 6 Way 2 Row Straight DF11
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Hirose |
| Orientation | Straight |
| Length | 8mm |
| Model | DF11 |
| Width | 5mm |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Series | DF11 |
| Number of Rows | 2 |
| Pitch | 2mm |
| For Use With | DF11 Series |
| Number of Contacts | 6 |
| Connector Gender | Female |
Key Features
- Compact double row design with less than 5 mm depth for space saving.
- Features guide ribs to prevent incorrect insertion and mating.
- Locking mechanism ensures secure connection with mating header.
- Compatible with DF11 series 2.00 mm PCB header connectors.
- Suitable for use in digital cameras, LCD displays, and measurement devices.
- Constructed from durable polyamide housing material.
- Designed for portable devices requiring multiple signals in limited space.
- Manufactured in Japan ensuring high-quality standards.
Product Description
Hirose DF11 Female Connector Housing DF11 is a specialized connector housing with 2 mm pitch, featuring 6 ways and 2 rows arranged straight for cable mounting applications. This compact connector housing has a depth under 5 mm, enabling a double row contact configuration within the footprint space of a single row housing.
The housing incorporates guide ribs to prevent incorrect insertion and twisting during mating, enhancing reliable connections. It also features a locking mechanism that secures the housing firmly with compatible DF11 series PCB header connectors.
Constructed with polyamide material, this housing offers high durability suitable for a variety of industrial and commercial applications including portable electronic devices, digital cameras, LCD displays, digital video recorders, car navigation systems, access control units, and measurement equipment.
These connector housings require separately purchased crimp contacts compatible with the DF11 series, facilitating flexible assembly options. With a length of 8 mm and width of 5 mm, this connector housing meets the needs of compact electronic designs where space efficiency and secure electrical contact are paramount.
Compact double row design with under 5 mm depth maximizes space efficiency. Guide ribs prevent misalignment and incorrect insertion. Locking mechanism guarantees secure mating connection. Compatible with DF11 series 2.00 mm PCB header connectors.
Durable polyamide housing material offers robust protection. Ideal for portable and compact electronic devices. Japanese manufacture ensures quality and consistency. Suitable for digital cameras, LCD displays, and measurement devices.
Explore our comprehensive range of Connector Housings and accessories for your industrial and electronic component applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2 mm.
It supports 6 contacts in a double row configuration.
The orientation of this model is straight.
The housing has a length of 8 mm and a width of 5 mm.
It is constructed from durable polyamide material.
It is compatible with the DF11 series 2.00 mm PCB header connectors.
The housing incorporates guide ribs that prevent misalignment and incorrect insertion during mating.
It features a locking mechanism that ensures a secure connection with the mating header.
It is suitable for use in digital cameras, LCD displays, and measurement devices, among others.
It is manufactured in Japan, ensuring high-quality standards.
The mounting type for this model is cable.
No, crimp contacts must be purchased separately for use with this housing.
