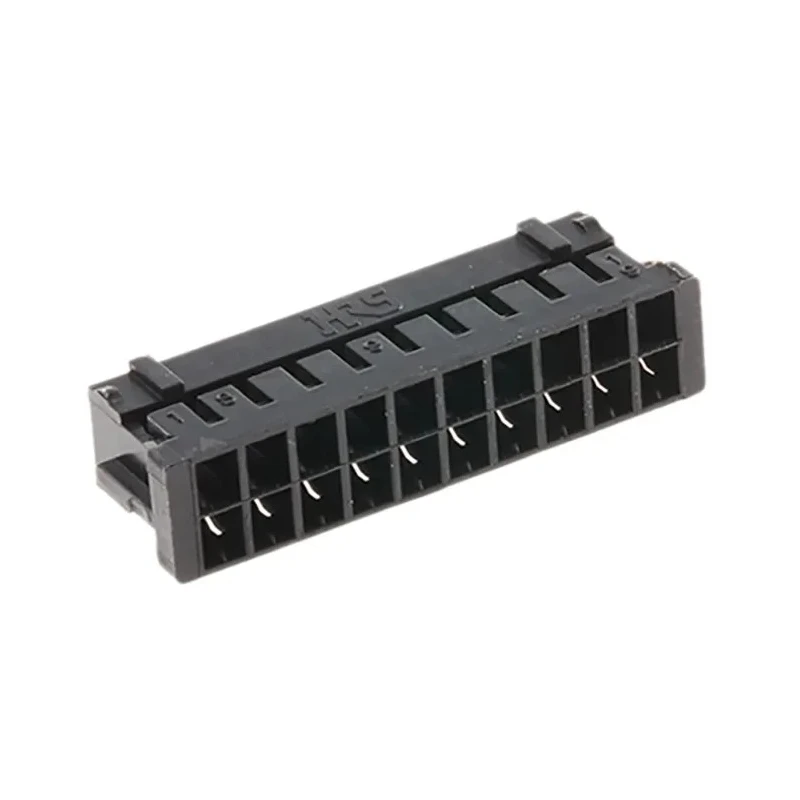

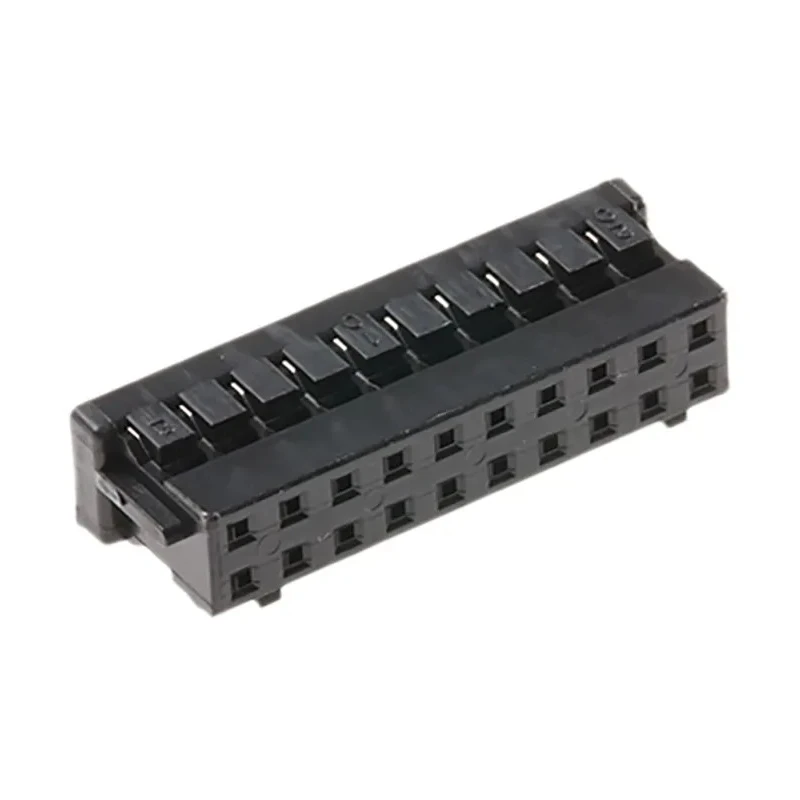

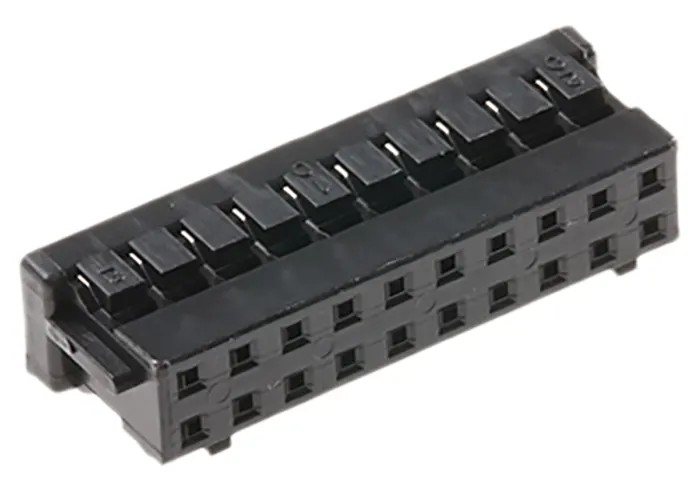

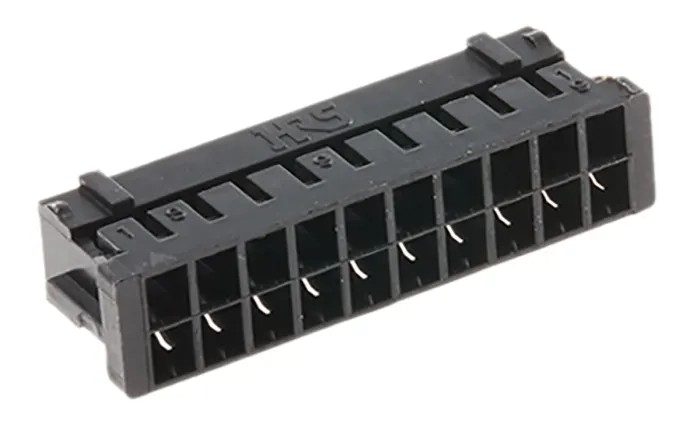

Hirose DF11 Female Connector Housing 2 mm Pitch 20 Way 2 Row Straight

Hirose DF11-20DS-2C is a female connector housing designed with a 2.00 mm pitch and 20 way contacts arranged in two rows straight configuration. This connector housing utilizes polyamide material for enhanced durability and insulation. The compact depth of 5 mm allows a double row configuration in the space typical for a single row, providing efficient PCB space utilization.

The connector housing features guide ribs to prevent mis-mating and twisting, increasing connection reliability during assembly and use. An integrated locking mechanism secures the housing firmly to the mating header, essential for stable electrical and mechanical connections.

It is intended for cable mounting applications and mates with the Hirose DF11 series 2.00 mm pitch PCB header connectors. This product suits a wide range of applications including portable electronic devices, digital cameras, LCD display units, digital video recorders, automotive navigation systems, access control units, and precision measurement instruments.

The housing is manufactured in Japan, ensuring strict quality control and adherence to manufacturing standards. Note that contacts for this housing (crimp terminals) are sold separately under separate stock references.

The compact double row design saves space with less than 5 mm depth. Locking mechanism ensures secure mating connection to matching PCB headers. Polyamide housing material provides durable insulation and mechanical strength.

Guide ribs prevent incorrect insertion and twisting during mating. Designed for cable mount with straight orientation for versatility. Ideal for portable devices, digital cameras, LCD displays, and measurement instruments.

Compatible with DF11 series 2.00 mm PCB header connectors. Manufactured in Japan ensuring high-quality standards.
