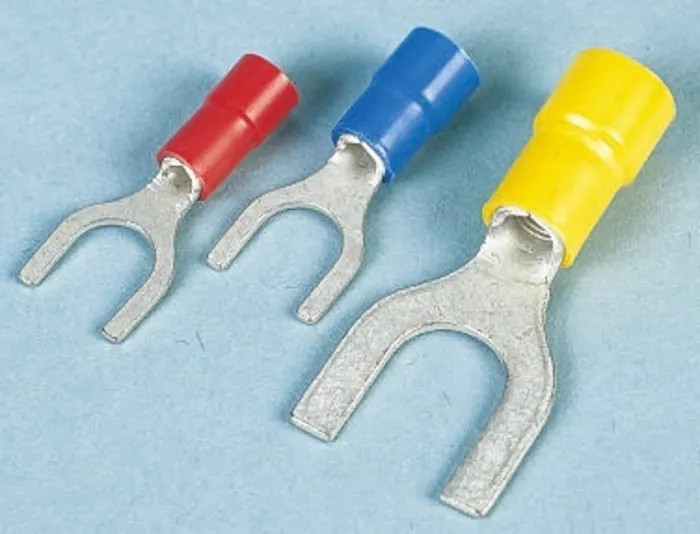

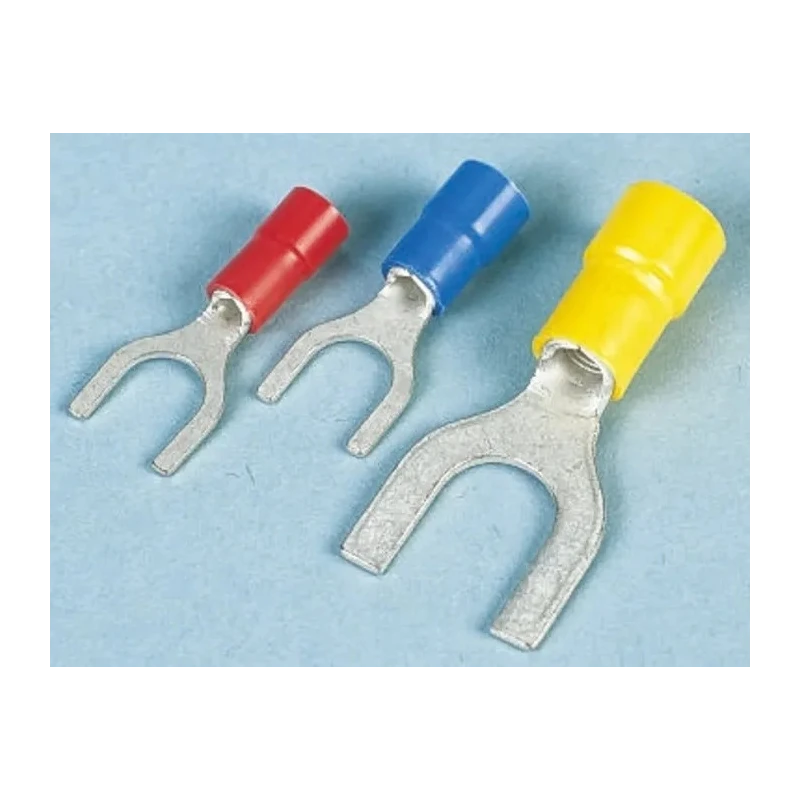

JST Insulated Fork Terminal 22 AWG to 16 AWG M4 Stud Size Vinyl Red FVWS1.25-S4A(LF)
Specifications
| Country of Origin | India |
|---|---|
| Brand | JST |
| Colour | Red |
| THICKNESS | 0.8mm |
| Model | FVWS1.25-S4A(LF) |
| Width | 7.2mm |
| Insulation | Insulated |
| Overall Length | 20mm |
| Series | FVWS1.25 |
| Insulation Material | Vinyl |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Stud Size | M4 |
Key Features
- Suitable for wire sizes from 22 AWG to 16 AWG.
- Features M4 stud size for secure connections.
- Vinyl insulation ensures electrical safety and durability.
- Constructed from tin-plated oxygen-free copper for excellent conductivity.
- Overall length of 20 mm for compact installation.
- Thickness of 0.8 mm to meet mechanical stability requirements.
- Flared-entry terminal design with butted seams for reliable crimps.
- Red color coding for easy identification.
Product Description
JST FVWS1.25-S4A(LF) insulated fork terminal is specifically designed for wire gauges ranging from 22 AWG to 16 AWG, with a compact M4 stud size. Featuring vinyl insulation in a vivid red color, this terminal is built to deliver excellent electrical insulation and mechanical protection in various industrial and electronic environments.
Manufactured from tin-plated oxygen-free copper, these fork terminals provide high conductivity and corrosion resistance, ensuring reliable electrical connections over extended use. The flared-entry design with butted seams enhances the mechanical retention of the wire, reducing the risk of damage and ensuring consistent crimps.
The terminal measures 20 mm in overall length and has a thickness of 0.8 mm, making it suitable for tight spaces while maintaining mechanical robustness. It is engineered for use in electronic components, power connectors, and wiring harness assemblies, offering dependable performance in industrial automation, electrical distribution, and commercial equipment.
The red vinyl insulation aids in quick wire size identification and electrical safety, reducing short circuits and protecting against environmental factors. This product is RoHS compliant, aligning with environmental directives for hazardous substances.
Suitable for wire sizes from 22 AWG to 16 AWG. Features M4 stud size for secure connections. Vinyl insulation ensures electrical safety and durability. Constructed from tin-plated oxygen-free copper for excellent conductivity.
Overall length of 20 mm for compact installation. Thickness of 0.8 mm to meet mechanical stability requirements. Flared-entry terminal design with butted seams for reliable crimps. Red color coding for easy identification.
Ideal for electronic, power, and connector applications. Meets RoHS compliance standards for environmental safety.
This JST insulated fork terminal is ideal for use in electronic assembly, industrial manufacturing, power equipment wiring, and HVAC systems, ensuring reliable wire connections compliant with international standards. Browse more products in the Fork Terminal category for compatible connectors and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is suitable for wire sizes ranging from 22 AWG to 16 AWG.
It features an M4 stud size for secure connections.
The terminal is insulated with vinyl, which ensures electrical safety and durability.
The overall length of this terminal is 20 mm, making it suitable for compact installations.
The thickness of this terminal is 0.8 mm, providing mechanical stability.
It is constructed from tin-plated oxygen-free copper, which offers excellent conductivity and corrosion resistance.
The flared-entry design with butted seams enhances mechanical retention and ensures reliable crimps, reducing the risk of damage.
Yes, this terminal is RoHS compliant, aligning with environmental directives for hazardous substances.
The terminal has a width of 7.2 mm, in addition to its overall length of 20 mm and thickness of 0.8 mm.
This model is suitable for electronic assembly, industrial manufacturing, power equipment wiring, and HVAC systems.
The terminal features red color coding for easy identification of wire sizes.
The maximum wire size that this terminal can accommodate is 1.65 mm².
