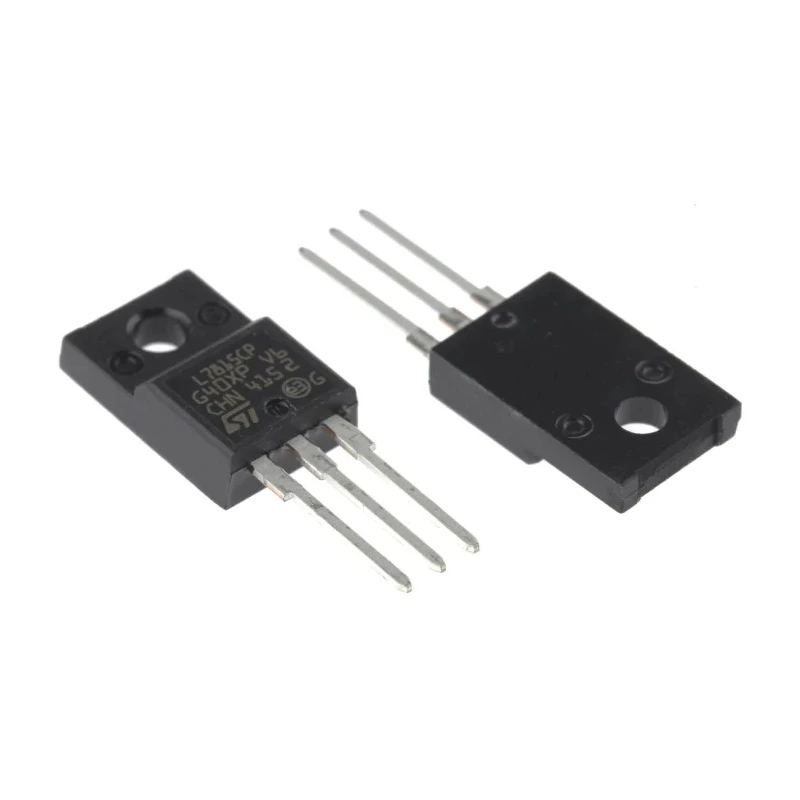

STMicroelectronics Voltage Regulator 35V 1.5A TO-220FP 3-Pin L7815CP

STMicroelectronics L7815CP is a fixed output voltage linear regulator designed for a wide range of applications in the electronics industry. This 3-pin device in a TO-220FP package delivers a stable 15V output voltage with a maximum input voltage rating of 35V. It supports output currents up to 1.5A, making it suitable for power management solutions in industrial, laboratory, and commercial electronic systems.

The L7815CP provides robust protection features including thermal overload protection and safe operating area (SOA) protection. Its low quiescent current of 8mA reduces power dissipation, enhancing overall efficiency. The compact TO-220FP plastic package enables easy through-hole mounting on printed circuit boards ensuring reliable mechanical and electrical connections.

Featuring a maximum operating temperature of 150°C, this voltage regulator maintains performance in challenging thermal environments. It is part of the well-known L78xx series, which includes a range of fixed voltage regulators for positive polarity applications. These regulators are designed to solve issues related to single point regulation by enabling local on-card regulation in systems.

Typical applications include power supplies for industrial control, instrumentation, communications equipment, and automotive electronics (though this particular part is not automotive standard approved). The built-in current limiting and thermal shutdown functions protect the device from damage during fault conditions, contributing to system reliability and durability.

Maximum input voltage of 35V suitable for various electronics applications. Thermal overload and safe operating area protection ensures reliable operation. Low quiescent current of 8mA minimizes power losses. Package designed for through hole mounting with 3 pins.

Compact dimensions of 10.4mm length, 9.3mm height, and 4.6mm width. Maximum operating temperature up to 150°C for high temperature environments. Positive polarity voltage regulator from the L78xx series offering fixed output voltages.

Ideal for power management and linear voltage regulation in industrial and electronic equipment. Includes internal current limiting and thermal shutdown for safety.

Enabling reliable and efficient voltage regulation, STMicroelectronics L7815CP is highly suitable for diverse industrial electronics, laboratory power supplies, and manufacturing automation systems. Browse the Voltage Regulator category on EnvMart for related STMicroelectronics products and alternatives.
