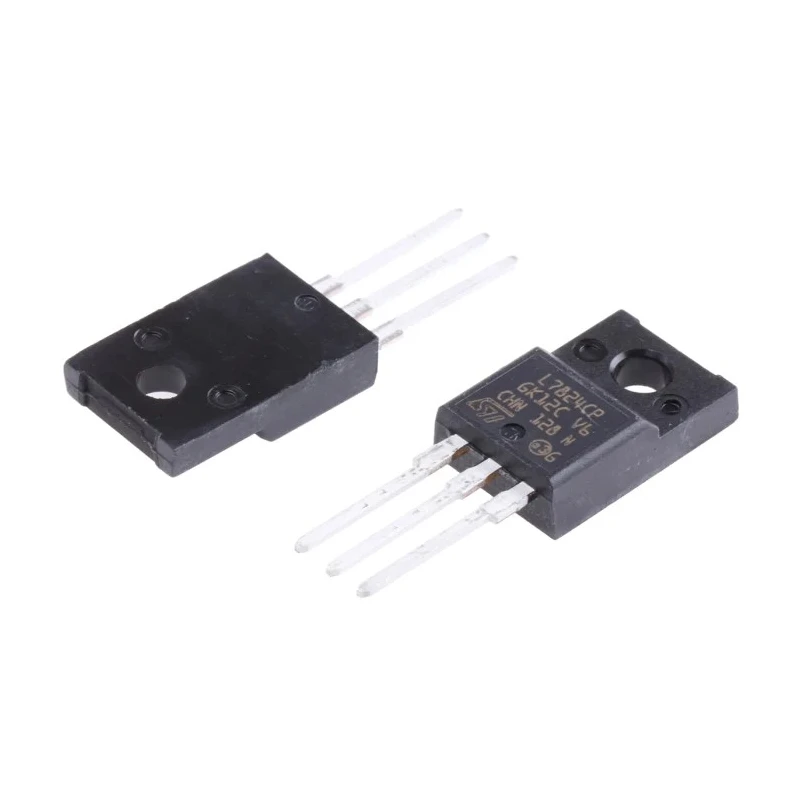

STMicroelectronics Linear Voltage Regulator 40V TO-220FP 3-Pin 1.5A L7824CP
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators STMicroelectronics, Voltage Regulator 40V TO-220FP 3-Pin RS Stock No |
| Brand | STMicroelectronics |
| Height | 9.3mm |
| Length | 10.4mm |
| Model | L7824CP |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Series | L78xx |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220FP |
| Polarity | Positive |
| Maximum Input Voltage | 40V |
| Quiescent Current | 8mA |
| Pin Count | 3 |
Key Features
- Provides fixed output voltages between 5V and 24V suitable for numerous applications.
- Incorporates thermal overload and output transition Safe Operating Area protection.
- Designed for through-hole mounting with a compact TO-220FP package.
- Wide operating temperature range up to 150°C for reliable performance.
- Features low quiescent current of 8mA ensuring energy efficiency.
- Offers positive polarity regulation ideal for power management circuits.
- Effective for local on-card voltage regulation improving circuit stability.
- Widely used in industrial, consumer electronics, and instrumentation applications.
Product Description
STMicroelectronics L7824CP is a fixed voltage linear regulator from the L78xx series designed to provide reliable and efficient power management solutions. It supports output voltages ranging from 5V up to 24V with a maximum load current of 1.5A, making it highly versatile for various electronic applications.
This regulator is packaged in a TO-220FP 3-pin through-hole mount style, offering ease of integration on printed circuit boards. Its compact dimensions of 10.4 mm length, 4.6 mm width, and 9.3 mm height facilitate designing compact power supply circuits.
The device includes built-in thermal overload protection and output transition Safe Operating Area (SOA) protection, improving reliability and protecting against damage under stress. It maintains a low quiescent current of 8mA, reducing power dissipation in standby conditions.
Operating reliably up to a maximum input voltage of 40V and a maximum operating temperature of 150°C, the L7824CP regulator is suited for industrial, consumer, and instrumentation applications requiring stable positive voltage regulation.
Fixed output voltages from 5V to 24V available in the L78xx series. Up to 1.5A continuous output current capability. Thermal shutdown and current limiting protection included. TO-220FP 3-pin package for through-hole mounting.
Low quiescent current of 8mA. Maximum input voltage compatibility up to 40V. Operating temperature range up to 150°C. Suitable for power management in electronics industry, instrumentation, and consumer devices.
This Voltage Regulator facilitates stable and efficient power supply solutions with protection features enhancing durability in demanding electrical environments. Ideal for engineers designing power regulation circuits requiring a compact and robust solution, L7824CP from STMicroelectronics is a dependable component.
Explore more power management ICs and related semiconductor products at EnvMart for your industrial and commercial electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The L7824CP voltage regulator has a maximum output current capability of 1.5A.
This model operates reliably within a temperature range up to 150°C.
The maximum input voltage for the L7824CP is 40V.
It comes in a TO-220FP package designed for through-hole mounting.
The quiescent current of the L7824CP is 8mA, which helps in reducing power dissipation in standby conditions.
The L7824CP supports fixed output voltages ranging from 5V to 24V.
It includes built-in thermal overload protection and output transition Safe Operating Area (SOA) protection.
The height of the L7824CP is 9.3mm.
The width of the L7824CP is 4.6mm.
This model is widely used in industrial, consumer electronics, and instrumentation applications requiring stable positive voltage regulation.
The L7824CP has a pin count of 3.
The L7824CP is part of the L78xx series of voltage regulators.
