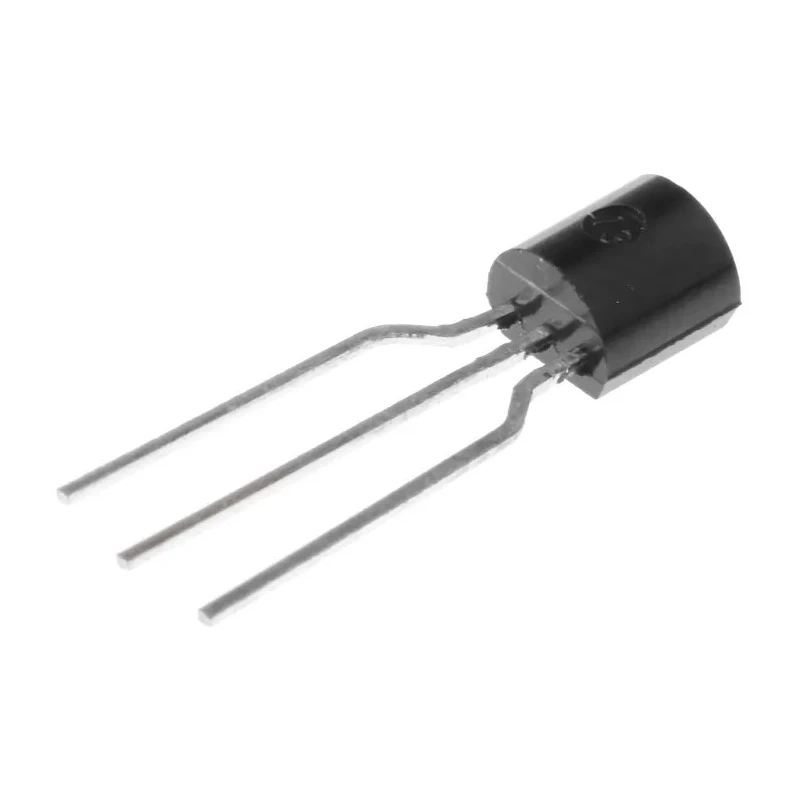

STMicroelectronics Negative Linear Voltage Regulator TO-92 Package 3-Pin -30V Max Input Voltage L79L05ABZ-AP
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators STMicroelectronics, Voltage Regulator -30V TO-92 3-Pin RS Stock No |
| Brand | STMicroelectronics |
| Height | 4.95mm |
| Length | 4.95mm |
| Model | L79L05ABZ-AP |
| Width | 3.94mm |
| Mount Type | Through Hole |
| Series | L79Lxx |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Polarity | Negative |
| Maximum Input Voltage | -30V |
| Quiescent Current | 6mA |
| Pin Count | 3 |
Key Features
- Maximum input voltage of -30V ensures reliable performance in negative voltage applications.
- Compact TO-92 through hole mounting package measuring 4.95mm length, 4.95mm height, and 3.94mm width.
- Operates with low quiescent current of 6mA, improving energy efficiency.
- Provides short circuit and thermal overload protection for safe operation.
- Rated for maximum operating temperature of 125°C supporting durability in demanding conditions.
- Designed for negative polarity voltage regulation applications in electronic circuits.
- Suitable for industrial, laboratory, and power management applications.
Product Description
STMicroelectronics L79L05ABZ-AP is a negative linear voltage regulator designed to provide highly stable and reliable voltage regulation in electronic applications. Enclosed in a compact TO-92 package with three pins, it supports through-hole mounting and is optimized for negative polarity voltage regulation.
With a maximum input voltage rating of -30V and a quiescent current of only 6mA, this regulator balances power efficiency with robust performance. Its small dimensions of 4.95mm length, 4.95mm height, and 3.94mm width allow for efficient use in space-constrained circuit designs.
The L79L05ABZ-AP includes integrated short circuit and thermal overload protection, ensuring safe operation under fault conditions, which extends device and system longevity. It can withstand operating temperatures up to 125°C, making it suitable for demanding industrial and commercial environments.
This voltage regulator is widely used in power management IC applications in electronics manufacturing, laboratory instrumentation, and industrial control systems requiring negative voltage stabilization.
Maximum input voltage of -30V for negative voltage regulation. Low quiescent current of 6mA for energy-efficient operation. TO-92 through-hole package suitable for standard PCB assembly. Thermal overload and short circuit protection for device safety.
Maximum operating temperature up to 125°C for high temperature environments. Compact size with 4.95mm length and height, 3.94mm width. Ideal for industrial, laboratory, power management, and electronic component applications.
The product is part of STMicroelectronics’ series of reliable negative linear regulators designed for precise voltage control. Ideal for integration into a variety of circuits, this model ensures consistent voltage output for powering sensitive electronic components.
Explore our range of Voltage Regulators at EnvMart for all your semiconductor and power management needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for the L79L05ABZ-AP is -30V, making it suitable for negative voltage regulation applications.
This voltage regulator operates with a low quiescent current of 6mA, which enhances energy efficiency in applications.
The TO-92 package of this model measures 4.95mm in length, 4.95mm in height, and 3.94mm in width.
It supports through-hole mounting, making it suitable for standard PCB assembly.
The L79L05ABZ-AP is rated for a maximum operating temperature of 125°C, allowing it to function in high-temperature environments.
Yes, it includes integrated short circuit and thermal overload protection to ensure safe operation under fault conditions.
This model is part of the L79Lxx series of negative linear voltage regulators from STMicroelectronics.
It is widely used in power management IC applications, laboratory instrumentation, and industrial control systems requiring negative voltage stabilization.
The L79L05ABZ-AP features a pin count of 3, which is standard for its TO-92 package.
This model is designed for negative polarity voltage regulation, making it suitable for specific electronic circuit requirements.
The country of origin for this voltage regulator is India.
The low quiescent current of 6mA contributes to improved energy efficiency, which is crucial in various electronic applications.
