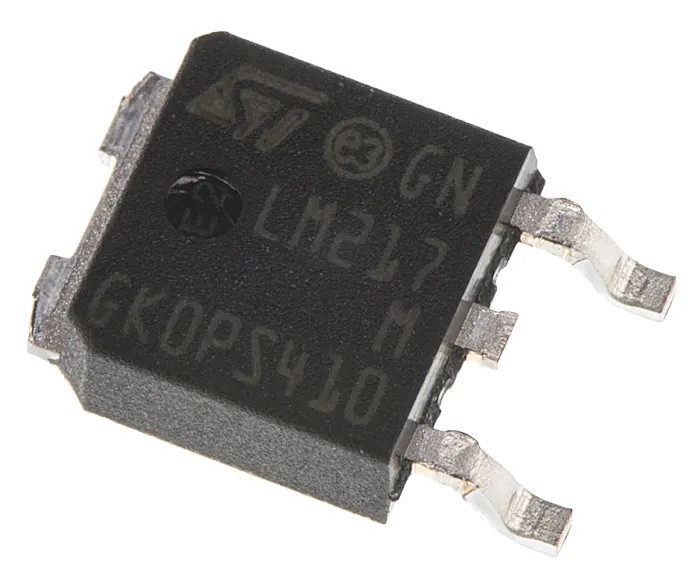

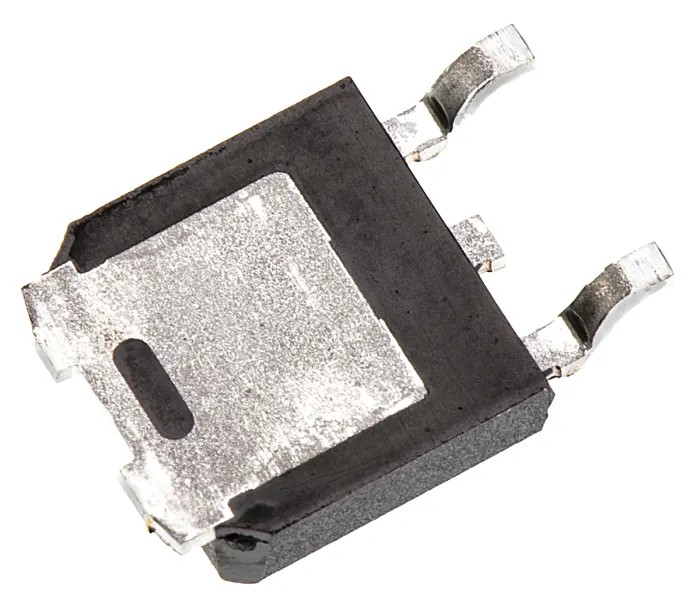

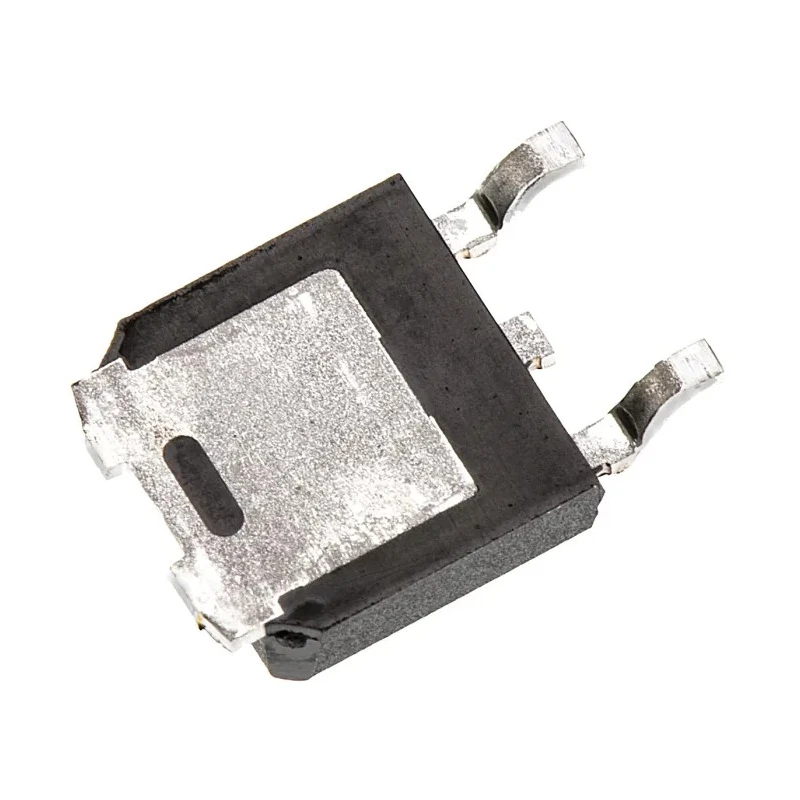

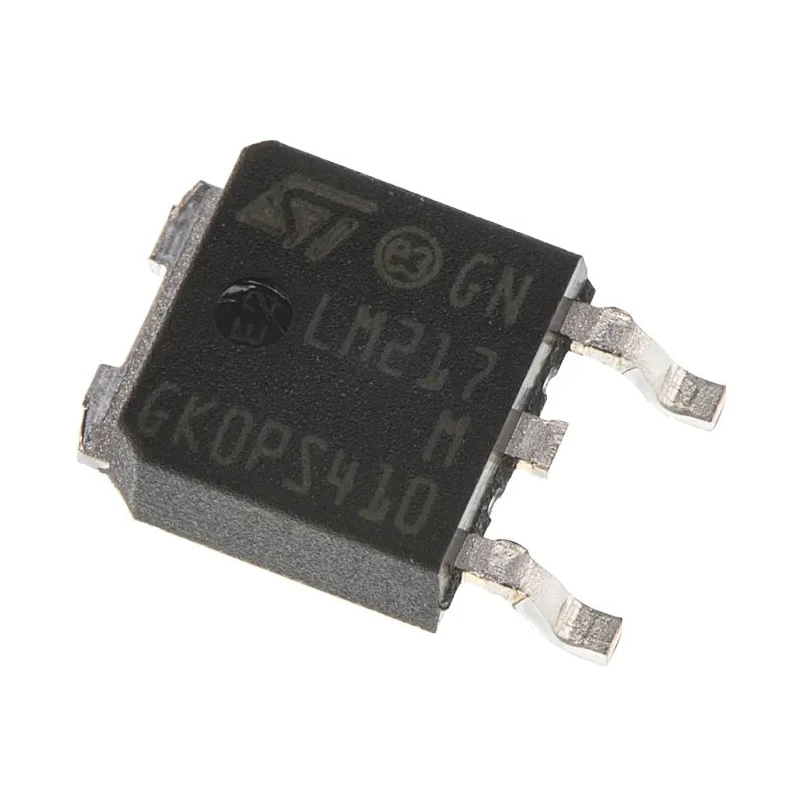

STMicroelectronics Linear Voltage Regulator 3-Pin Surface Mount 40V Max Operating Voltage LM217MDT-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators STMicroelectronics LM217MDT-TR, Voltage Regulator 40V 3-Pin RS Stock |
| Brand | STMicroelectronics |
| Height | 2.4mm |
| Length | 6.6mm |
| Model | LM217MDT-TR |
| Width | 6.2mm |
| Mount Type | Surface |
| Series | LM217 |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 40V |
| Output Voltage Range | 1.2 V to 37 V at 500 mA |
| Standards/Approvals | ECOPACK |
| Minimum Input Voltage | 3V |
| Pin Count | 3 |
Key Features
- Adjusts output voltage from 1.2 V to 37 V at 500 mA load current.
- Features precise line regulation of 0.01% and load regulation of 0.1%.
- Equipped with thermal overload, short circuit protection, and safe area compensation.
- Supports floating operation suited for high-voltage applications.
- Compact surface mount design with 3 pins for easy PCB integration.
- Operates reliably up to a maximum temperature of 125°C.
- Complies with ECOPACK environmental standards for safer disposal and reduced hazardous substances.
Product Description
STMicroelectronics LM217MDT-TR is a high performance linear voltage regulator designed for applications requiring a stable adjustable output voltage within the range of 1.2 V to 37 V supplying up to 500 mA load current. This device comes in a compact 3-pin surface mount package, making it suitable for modern printed circuit board designs where space saving is essential.
The regulator integrates multiple protective features including thermal overload protection, short circuit protection, and safe area compensation to ensure reliability and durability in demanding environments. It supports floating operation, making it ideal for high-voltage circuits where traditional regulators might fail.
Operating temperature capability reaches up to 125°C, ensuring performance in industrial or automotive-grade applications, despite this particular model not being automotive certified. Its positive polarity and precise line and load regulation characteristics make it a preferred choice in power management IC portfolios.
Compliant with ECOPACK standards, the LM217MDT-TR meets environmental regulations aimed at reducing hazardous substances and enhancing product recyclability. Adjustable output voltage from 1.2 V to 37 V at 500 mA. Enhanced line regulation of 0.01% and load regulation of 0.1% for stable voltage output.
Robust thermal and short circuit protection mechanisms. Floating operation for compatibility with high-voltage applications. Compact 3-pin surface mount package facilitating efficient PCB layout. Wide operating temperature up to 125°C.
Complies with ECOPACK environmental directives. Device dimensions: 6.6 mm length, 6.2 mm width, 2.4 mm height.
This Voltage Regulator is widely used in electronics manufacturing, power supply design, and industrial control systems. It is particularly suitable for applications in embedded systems, instrumentation, and portable electronic equipment requiring compact, reliable voltage regulation solutions.
Explore more products and components from STMicroelectronics on EnvMart to support your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LM217MDT-TR can adjust output voltage from 1.2 V to 37 V at a load current of 500 mA.
This model operates reliably at temperatures up to a maximum of 125°C.
It features a compact 3-pin surface mount design, suitable for efficient PCB integration.
The LM217MDT-TR includes thermal overload protection, short circuit protection, and safe area compensation.
The maximum input voltage for this voltage regulator is 40V.
The minimum input voltage required for this model is 3V.
It features a precise line regulation of 0.01%, ensuring stable voltage output.
The load regulation of the LM217MDT-TR is 0.1%, providing stable performance under varying load conditions.
This model has dimensions of 6.6 mm in length, 6.2 mm in width, and 2.4 mm in height.
It is widely used in electronics manufacturing, power supply design, and industrial control systems, particularly in embedded systems and portable electronic equipment.
Yes, it complies with ECOPACK environmental standards aimed at reducing hazardous substances.
This voltage regulator has a positive polarity.
