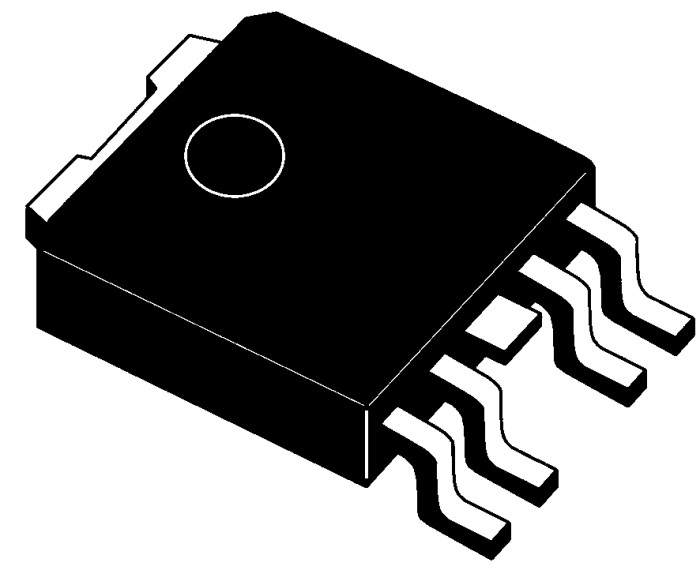

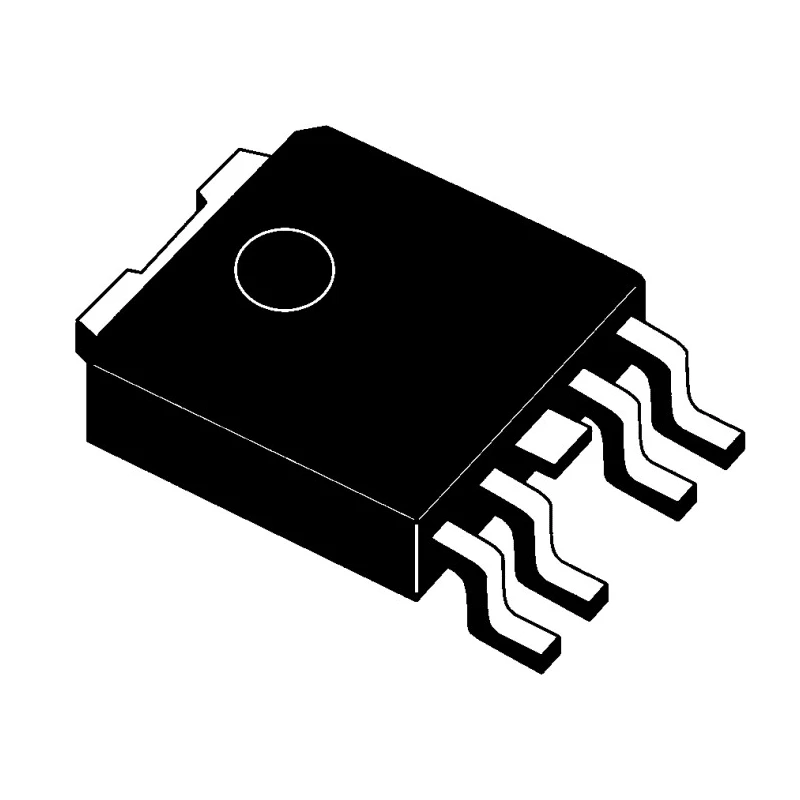

STMicroelectronics Voltage Regulator Positive Polarity Surface Mount PPAK 5-Pin 16V 700μA Quiescent Current LF90CPT-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators STMicroelectronics, Voltage Regulator 16V PPAK 5-Pin RS Stock No |
| Brand | STMicroelectronics |
| Height | 2.4mm |
| Length | 6.6mm |
| Model | LF90CPT-TR |
| Width | 6.2mm |
| Mount Type | Surface |
| Series | LF90 |
| Maximum Operating Temperature | 125°C |
| Package Type | PPAK |
| Polarity | Positive |
| Maximum Input Voltage | 16V |
| Quiescent Current | 700μA |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
Key Features
- Operates with a maximum input voltage of 16V for flexible power management.
- Features low dropout linear regulator technology with a quiescent current of 700μA for efficient operation.
- Provides robust performance up to a maximum operating temperature of 125°C.
- Compact dimensions with a length of 6.6mm, width of 6.2mm, and height of 2.4mm suitable for space-constrained applications.
- Meets automotive standard AEC-Q100 ensuring reliability in automotive environments.
- Surface mount device allowing easy PCB assembly and automation.
- Five-pin configuration designed for positive polarity voltage regulation.
Product Description
STMicroelectronics LF90CPT-TR is a precision Low Dropout (LDO) linear voltage regulator designed to provide a stable and efficient voltage regulation with a maximum input voltage of 16 volts. Packaged in a compact 5-pin PPAK surface mount configuration, this device offers a low quiescent current of 700μA, making it suitable for battery-powered and low power applications.
The regulator supports a maximum operating temperature of 125°C, ensuring stable operation under demanding conditions. It boasts compact physical dimensions of 6.6mm in length, 6.2mm in width, and 2.4mm in height, allowing implementation in densely packed electronic circuits.
This voltage regulator complies with the automotive grade AEC-Q100 standard, providing reliability and robustness essential for automotive and industrial applications. Its surface mount PPAK package with 5 pins supports a positive polarity design, facilitating easy integration on printed circuit boards and automated assembly lines.
The LF90CPT-TR features fast transient response and low noise operation with high power supply rejection ratio (PSRR), suitable for use in power management ICs, consumer electronics, industrial control, and automotive electronic systems.
Operates with a maximum input voltage of 16V for flexible power management. Features low dropout linear regulator technology with a quiescent current of 700μA for efficient operation. Provides robust performance up to a maximum operating temperature of 125°C.
Compact dimensions with a length of 6.6mm, width of 6.2mm, and height of 2.4mm suitable for space-constrained applications. Meets automotive standard AEC-Q100 ensuring reliability in automotive environments. Surface mount device allowing easy PCB assembly and automation.
Five-pin configuration designed for positive polarity voltage regulation.
This Voltage Regulator is ideal for applications including automotive electronics, power management circuits, industrial devices, and consumer electronic products requiring stable and efficient voltage regulation with minimal power loss.
Explore our extensive range of electronic components at EnvMart for industrial, automotive, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LF90CPT-TR voltage regulator operates with a maximum input voltage of 16V.
This model features a low quiescent current of 700μA, making it efficient for low power applications.
The dimensions of the LF90CPT-TR are 6.6mm in length, 6.2mm in width, and 2.4mm in height.
It can operate at a maximum temperature of 125°C, ensuring stable performance under demanding conditions.
The LF90CPT-TR is packaged in a PPAK surface mount configuration, which facilitates easy PCB assembly.
Yes, it meets the automotive standard AEC-Q100, ensuring reliability in automotive environments.
This voltage regulator has a five-pin configuration designed for positive polarity voltage regulation.
This voltage regulator is suitable for automotive electronics, power management circuits, industrial devices, and consumer electronic products.
It provides low dropout linear voltage regulation, ensuring efficient operation with minimal power loss.
This model is beneficial for battery-powered and low power applications due to its low quiescent current.
The low dropout feature allows for efficient voltage regulation even when the input voltage is close to the output voltage, minimizing power loss.
The LF90CPT-TR is manufactured in India.
