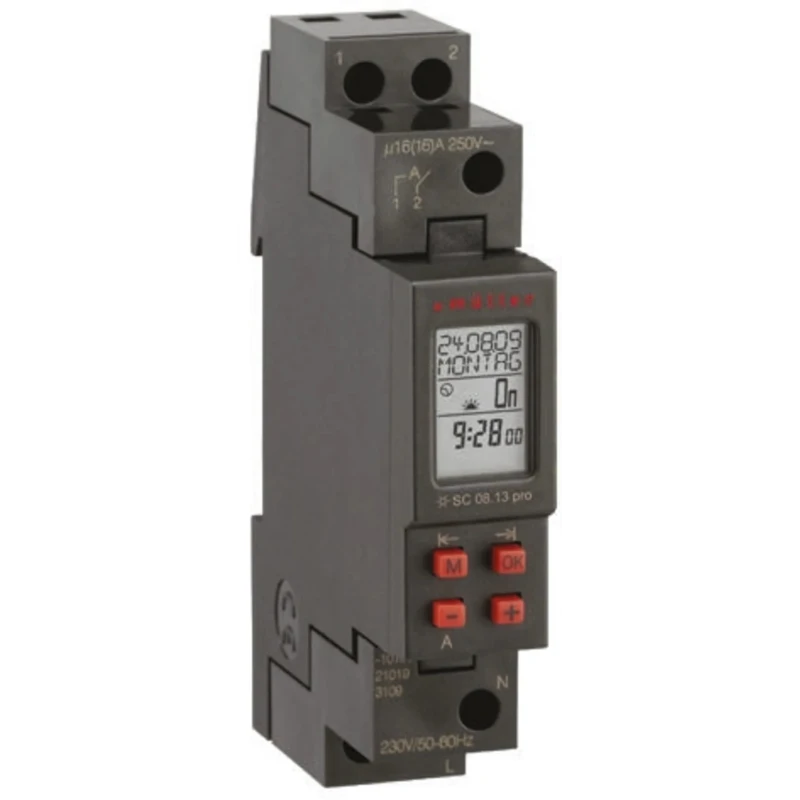

Muller Digital DIN Rail Time Switch 230V AC, 1 Channel, 60 Memory Spaces SC 08.13 PRO 230V 50-60HZ

The Muller SC 08.13 PRO 230V 50-60HZ Digital DIN Rail Time Switch is a specialized automation component designed for precise time control in industrial, commercial, and electrical panel applications. Operating on a 230V AC supply, it features one configurable channel for managing electrical circuits efficiently.

This DIN rail-mountable device has a compact form factor measuring 90mm in height and 63mm in depth, conserving space in control enclosures. Its digital interface offers advanced programming options including Astro astronomical time scheduling, permanent date and holiday functions, manual override, and a manual permanent mode for user convenience.

The time switch supports 60 memory spaces with unrestricted block programming, allowing users to set complex on/off sequences. Additional features include an elapsed time and pulse counter for operational tracking. The device's security is ensured with a PIN-code lock to prevent unauthorized tampering.

For enhanced configuration, it is compatible with PC programming modules and data keys (sold separately), facilitating easy and flexible programming. The contact configuration is SPNO (Single Pole Normally Open), which is common for switching applications in automation systems.

Designed according to DIN EN 60730-1 and DIN EN 60730-2-7 standards and compliant with RoHS and ISO 15693, this product ensures high reliability and environmental safety. The internal battery offers a lifespan of 6 years, reducing maintenance requirements.

This Muller Digital DIN Rail Time Switch is ideal for industrial automation systems including manufacturing process control, HVAC systems, lighting, and other time-dependent control applications.

Operates on 230V AC supply voltage ensuring compatibility with standard electrical systems. Features digital programming with Astro and permanent date/holiday functions. Equipped with manual override and manual permanent mode for flexible operation.

Security enhanced with PIN-code protection to prevent unauthorized changes. Includes elapsed time and pulse counter for accurate monitoring. 60 memory spaces and unrestricted block programming capability allow complex scheduling.

Supports PC programming via separate modules for easy setup and data management. Complies with DIN EN 60730-1/DIN EN 60730-2-7 standards and RoHS for safety and environmental compliance. Compact dimensions: height 90mm, depth 63mm, suitable for DIN rail mounting.

Built for long life with a 6-year battery lifespan and reliable SPNO contact configuration. Explore a wide range of digital Time Switches and DIN rail automation products on EnvMart for enhanced industrial control solutions.
