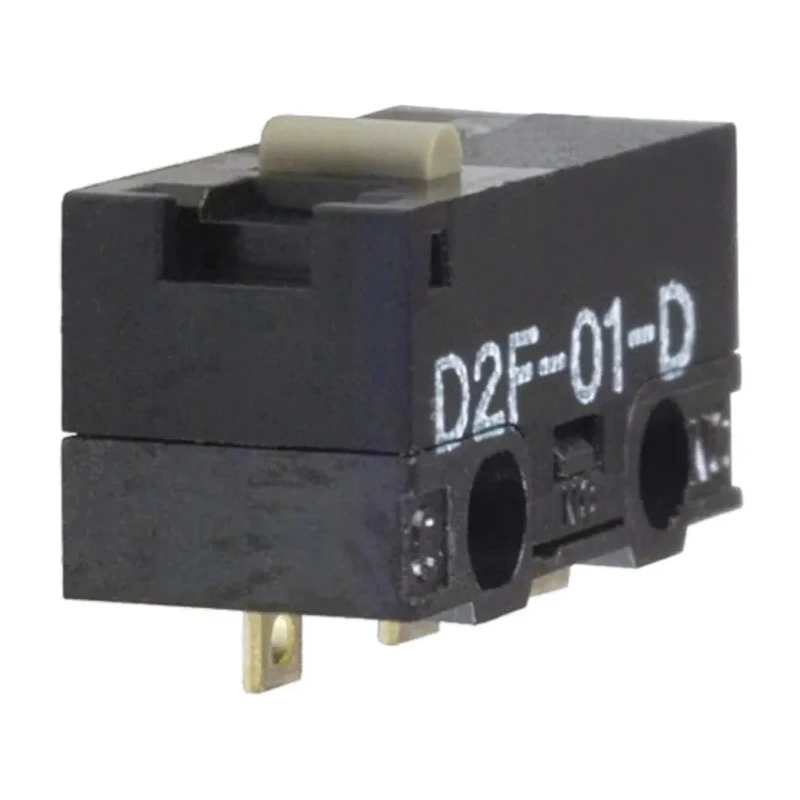

Omron Pin Plunger Ultra Subminiature Micro Switch, Solder Terminal, 3A @125Vac Silver Contacts, 0.1A @30Vdc Gold D2F-D
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Model | D2F-D |
| IP Rating | IP40 |
| Approvals | UL & CSA |
| Series | D2F |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SPDT |
| Actuator Type | Pin Plunger |
| Contact Rating | 3A @125Vac with silver contacts and 0.1A @ 30Vdc with gold contacts |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 3A |
| Operating Force | 1.47N |
| Mechanical Life | 1000000Operations |
| Microswitch Type | Ultra Subminiature |
Key Features
- The switch features a pin plunger actuator suitable for home appliances, audio and communications equipment.
- It has a solder terminal type allowing reliable PCB connections.
- Contact rating supports 3A at 125Vac with silver contacts and 0.1A at 30Vdc with gold contacts.
- Configured as SPDT providing single-pole double-throw contact arrangement.
- The switch offers an ingress protection rating of IP40 for protection against solid objects above 1mm.
- Operating force is 1.47N providing a balanced actuation effort.
- The temperature range spans from -25°C minimum to 65°C maximum for versatile environmental use.
- Mechanical life is rated at one million operations, ensuring long-term durability.
Product Description
Omron D2F-D Pin Plunger Ultra Subminiature Micro Switch with solder terminals provides reliable snap action switching with a compact form factor. Ideal for use in home appliances, audio equipment, and communication devices, this micro switch delivers precise electrical control with SPDT contact configuration.
The device supports a contact current rating of 3A at 125Vac (silver contacts) and a lower DC current rating of 0.1A at 30Vdc (gold contacts), ensuring both AC and DC application compatibility.
Its pin plunger actuator facilitates accurate and consistent switch actuation while maintaining a moderate operating force of 1.47N. The switch features an IP40 ingress protection rating, suitable for environments free from dust particles larger than 1mm but not fully sealed against liquids.
With a temperature operating range from -25°C to 65°C, it suits a variety of indoor industrial and commercial applications. Designed for durability, the mechanical lifespan is rated at one million operations, supporting extensive operational cycles.
Manufactured in Japan, the switch complies with RoHS standards and holds UL and CSA approvals, assuring quality and safety compliance. The switch is equipped with silver and gold contacts to optimize performance for different electrical loads.
Solder terminal type ensures secure mounting on printed circuit boards or machinery interfaces. SPDT contact configuration allows flexible circuit design with single-pole double-throw switching. The pin plunger actuator supports precise mechanical response and reliable snap action.
IP40 rating provides protection suitable for clean indoor environments common in automation and instrumentation. Operating force of 1.47N balances ease of actuation with resistant feedback. Temperature tolerance allows operating in typical ambient conditions encountered in household and commercial equipment.
Durability supports high-cycle applications in industrial control and monitoring systems.
This Omron micro switch series D2F-D is optimized for integration into electrical and electronic systems requiring compact, reliable switching components with proven safety certifications.
Explore the Electronics & Electricals category on EnvMart for a wide range of Micro Switches and precise actuation devices suitable for industrial automation, manufacturing, and commercial equipment maintenance needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact rating supports 3A at 125Vac with silver contacts and 0.1A at 30Vdc with gold contacts.
It features a pin plunger actuator, which facilitates accurate and consistent switch actuation.
The switch has an ingress protection rating of IP40, providing protection against solid objects larger than 1mm.
The mechanical life is rated at one million operations, ensuring long-term durability.
The operating force is 1.47N, providing a balanced actuation effort.
It operates within a temperature range of -25°C to 65°C, suitable for various indoor applications.
This model features a solder terminal type, allowing reliable PCB connections.
The switch is configured as SPDT, providing a single-pole double-throw contact arrangement.
It holds UL and CSA approvals and complies with RoHS standards, assuring quality and safety compliance.
The switch is manufactured in Japan.
It is ideal for use in home appliances, audio equipment, and communication devices.
It is designed for indoor use, with an IP40 rating suitable for clean environments and a wide temperature range.
