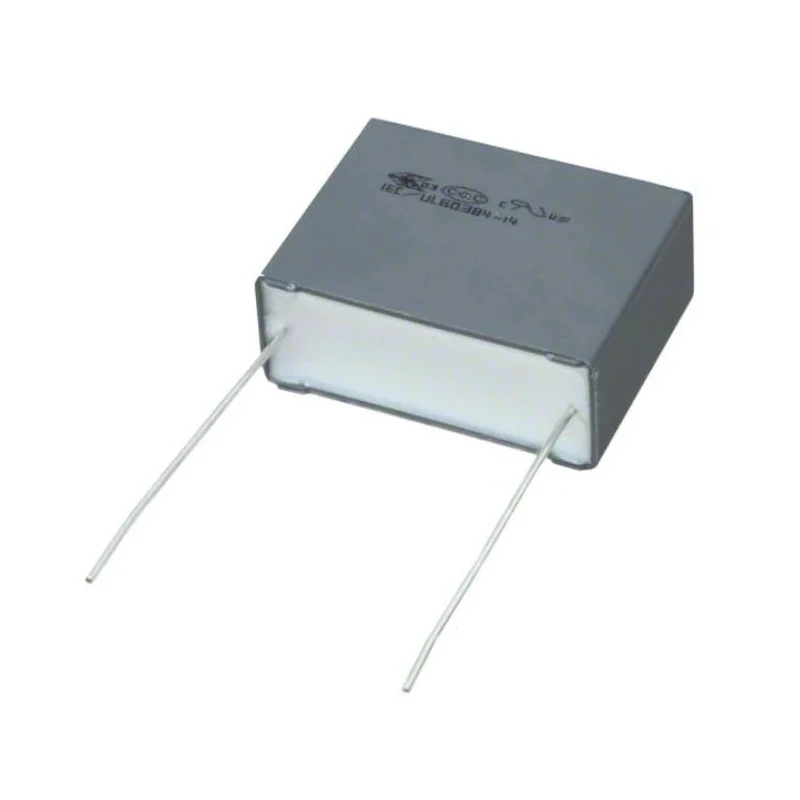

KEMET F863 Film Capacitor X2 100nF ±10% 630V DC 310V AC Through Hole Radial Lead F863BC104K310Z

Free Delivery in India | Lowest Global Shipping Charges

KEMET F863 Film Capacitor X2 100nF ±10% 630V DC 310V AC Through Hole Radial Lead F863BC104K310Z

Name: KEMET F863 Film Capacitor X2 100nF ±10% 630V DC 310V AC Through Hole Radial Lead F863BC104K310Z
Brand: KEMET
SKU: 211380
Price: 0.27 USD
Availability: InStock



Category Film Capacitor Brand KEMET Condition New

Specifications

Country of Origin	China
Capacitance Range	0.1 - 10.0 μF
Display	screen
Brand	KEMET
Height	11mm
Length	18mm
Model	F863BC104K310Z
Approvals	ENEC, UL, cUL, CQC
Packaging	Pizza Pack
Width	5mm
Mount Type	Through Hole
Series	F863
Maximum Operating Temperature	110°C
Tolerance	±10 %
Capacitance	100nF
Minimum Operating Temperature	-40°C
Terminal type	Radial
Dissipation Factor	0.3%
Lead Length	4mm
Standards/Approvals	CQC, cUL, ENEC, UL
Pin Count	2
Rated AC Voltage	310V ac
Rated DC Voltage	630V dc
Lead Pitch	15mm
Lead Diameter	0.6mm
Automotive Standard	AEC-Q200
Suppression Class	X2
Capacitance tolerance	±20%, ±10%
Lead Spacing	15.0 - 37.5 mm

Key Features

Constructed with metallized polypropylene film for durability and performance.
Radial lead through-hole mount type suitable for PCB assembly.
Rated at 630 V DC and 310 V AC voltage for robust operation.
Compliant with Automotive Electronics Council AEC-Q200 standards for harsh environments.
Operates reliably within a temperature range of -40°C to 110°C.
Features self-extinguishing resin encapsulation meeting UL 94 V-0 requirements.
Pin pitch of 15mm and lead length of 4mm optimized for installation.
Capacitance tolerance ensures precision in filtering and suppression applications.

Product Description

KEMET F863BC104K310Z is a high-quality film capacitor from the F863 series, designed for EMI suppression in electronic applications requiring stable and reliable capacitance. This capacitor features a 100nF capacitance with a ±10% tolerance and is rated for a DC voltage of 630 V and an AC voltage of 310 V. It is equipped with radial leads and a through-hole mount style, facilitating secure PCB installation.

Built with metallized polypropylene film and encapsulated in a self-extinguishing resin compliant with UL 94 V-0, this film capacitor is ideal for demanding industrial and automotive environments. Its AEC-Q200 qualification certifies robustness and durability in harsh ambient conditions. The operating temperature range from -40°C to 110°C makes it suitable for a wide range of applications including power supply filtering, capacitive power supplies, and EMI suppression in sensitive automotive electronics.

Dimensionally, it has a lead pitch of 15mm, a length of 18mm, a width of 5mm, and a height of 11mm with lead diameter of 0.6mm and lead length of 4mm, ensuring fitment in compact designs. The component also complies with multiple international standards and approvals including ENEC, UL, cUL, and CQC. Its dissipation factor is 0.3%, ensuring low power loss in operation.

Constructed from metallized polypropylene film for enhanced reliability. Rated for 630 V DC and 310 V AC voltages with X2 suppression class. Meets strict automotive standards (AEC-Q200) for demanding environments. Operating temperature range from -40°C to 110°C suits various industrial applications.

Self-extinguishing resin encapsulation ensures safety and durability. Pin count of 2 with radial lead terminal type for secure mounting. Dimensionally compact with 15mm lead pitch and 4mm lead length. Suitable for EMI suppression in automotive and industrial electronics.

This KEMET film capacitor is an ideal component for industrial, automotive, and electronic manufacturing environments requiring reliable EMI suppression. It is suitable for use in power supplies, capacitive power circuits, and other electronic assemblies. Browse the Electronics Components category at EnvMart for more advanced Film Capacitors and related components.
