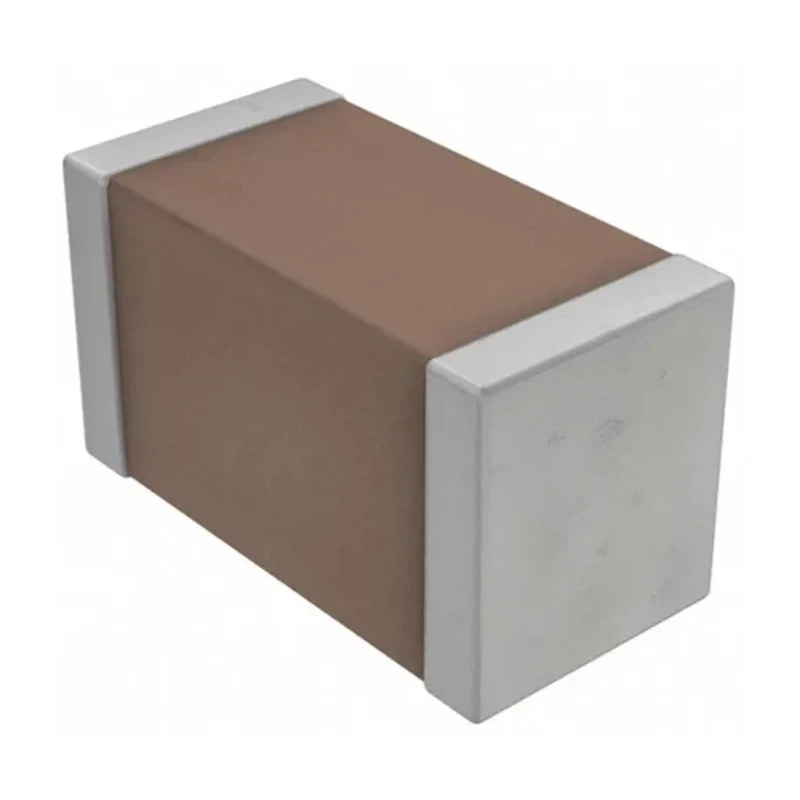

TDK 470 nF Multilayer Ceramic Capacitor, 50V DC, ±10 % Tolerance, Surface Mount, 0603 Case CGA3E3X5R1H474K080AB

TDK CGA3E3X5R1H474K080AB is a 470 nF multilayer ceramic capacitor (MLCC) designed for surface mounting. It exhibits a voltage rating of 50V DC and ±10 % capacitance tolerance, making it suitable for diverse electronics applications. The component uses X5R dielectric material, providing stable electrical properties over a wide temperature range from -55°C to 85°C.

Manufactured under stringent quality controls, this capacitor complies with the AEC-Q200 automotive standard, ensuring durability and reliability for automotive and harsh environment usage. Its low equivalent series inductance (ESL) and resistance (ESR) contribute to minimal self-heating and enhanced ripple current handling capability.

The compact 0603 case size with precise dimensions of 1.6 mm length, 0.8 mm width, and 0.8 mm height allows for dense PCB layouts. It is supplied in tape and reel packaging facilitating surface mount technology (SMT) assembly processes with solder termination.

Applications include automotive battery line smoothing, sensor modules, engine control units, anti-lock braking systems, infotainment systems, smart meters, smart grids, solar inverters, and AC-DC battery chargers. Its excellent frequency characteristics and low stray capacitance enhance circuit performance in precision electronics.

Constructed with multiple thin ceramic dielectric layers for high capacitance. Designed with X5R dielectric providing stable temperature characteristics. Automotive standard AEC-Q200 qualified for reliable performance. Operates between -55°C and 85°C ambient temperatures.

Low equivalent series inductance (ESL) and equivalent series resistance (ESR) ensure high ripple resistance. Surface mount termination with solder type for automated assembly. Compact dimensions of 1.6 mm length, 0.8 mm width, and 0.8 mm height.

Class II suppression suitable for various industrial and automotive applications.

This Multilayer Ceramic Capacitor is manufactured in Japan, guaranteeing high-quality production standards. It is an essential component for industrial, automotive, telecommunications, and consumer electronics implementations requiring reliable capacitance and temperature stability.
