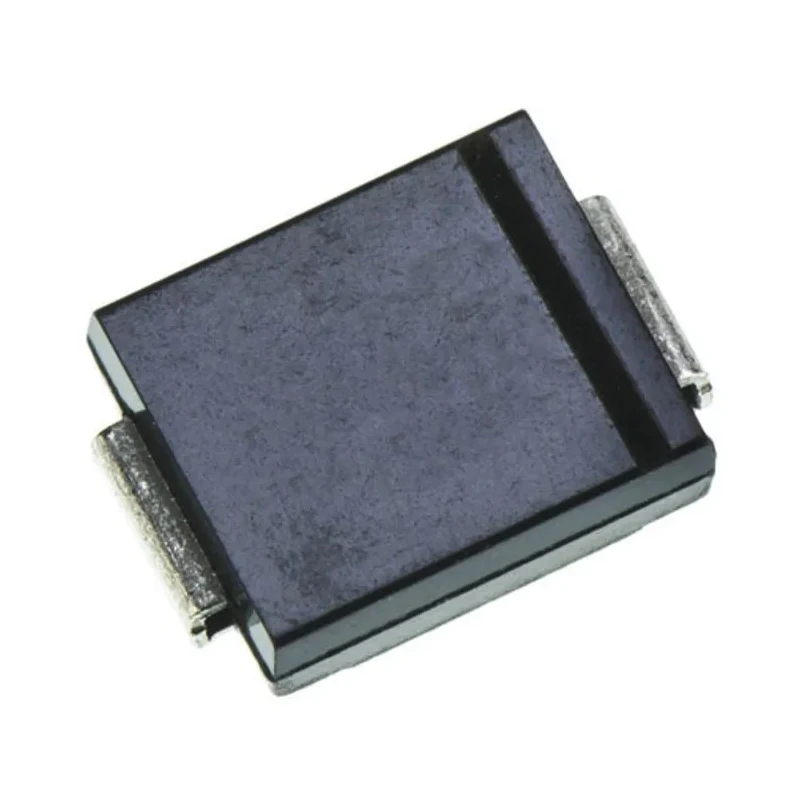

Littelfuse Uni-Directional 1-Element TVS Diode 5 kW, 2-Pin Surface Mount DO-214 Package 5.0SMDJ12A

Littelfuse model 5.0SMDJ12A is a high performance one-element uni-directional TVS Diode featuring a 5 kW peak pulse power dissipation for robust protection against voltage transients caused by lightning and similar events. This diode is optimized for surface mount applications with a compact DO-214 package, providing a low profile design to save circuit board space.

The device has a minimum breakdown voltage of 13.3 V and a maximum reverse stand-off voltage of 12 V, ensuring precise operation within specified parameters. It delivers a clamping voltage of 19.9 V, limiting excessive voltage spikes to protect sensitive semiconductor components effectively.

Its fast response time of less than 1.0 picosecond from 0 V to breakdown voltage minimum makes it highly efficient in transient voltage suppression. The device features low maximum reverse leakage current of 800 μA and low incremental surge resistance, improving performance reliability in demanding applications.

This diode is built with a glass passivated chip junction and halogen-free materials, supporting high temperature soldering conditions up to 260°C for 40 seconds at terminals. The temperature operating range spans from -65°C to 150°C, making it suitable for a broad range of industrial, automotive, and electronics manufacturing environments.

The 2-pin DO-214 surface mount package with dimensions 7.11 mm length, 6.22 mm width, and 2.41 mm height facilitates easy integration into printed circuit boards. Typical applications include ESD protection in electronic assemblies, surge suppression in power supply circuits, and safeguarding industrial control equipment.

This product is made in China and aligns with robust specifications for reliable transient voltage suppression performance. Single diode configuration provides accurate transient voltage protection. Uni-directional operation suitable for sensitive electronics.

5 kW peak pulse power capability ensures handling of significant voltage spikes. Fast response time and low leakage current enhance device efficiency and reliability. Surface mount DO-214 package saves space on circuit boards.

Halogen-free, lead-free plating promotes environmental compliance. Wide operating temperature range supports diverse industrial uses. High temperature soldering guarantee ensures durability during assembly. Explore our range of Littelfuse semiconductor components for industrial, electronic, and manufacturing applications on EnvMart.
