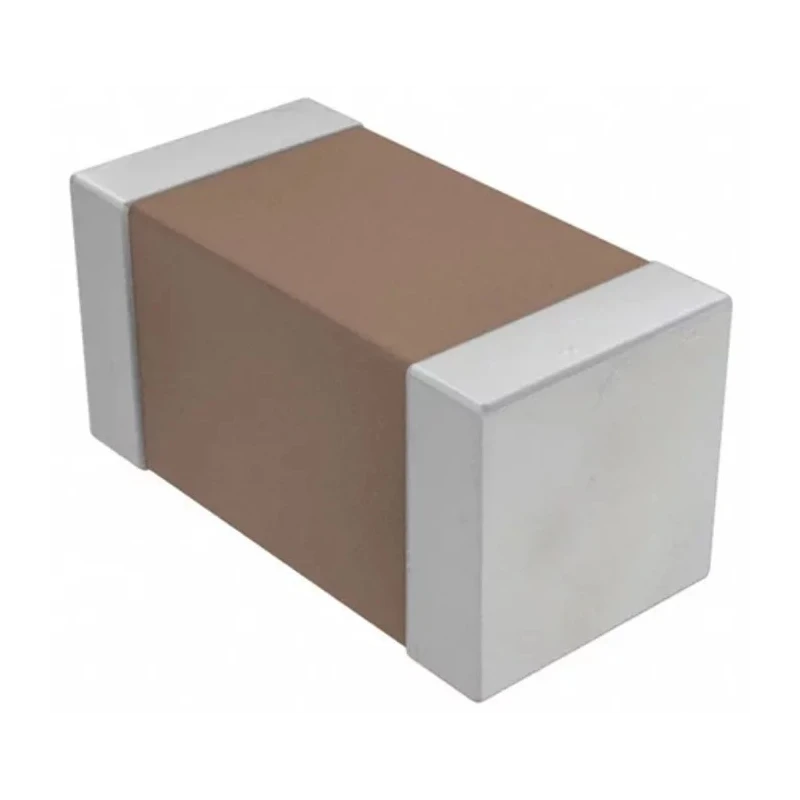

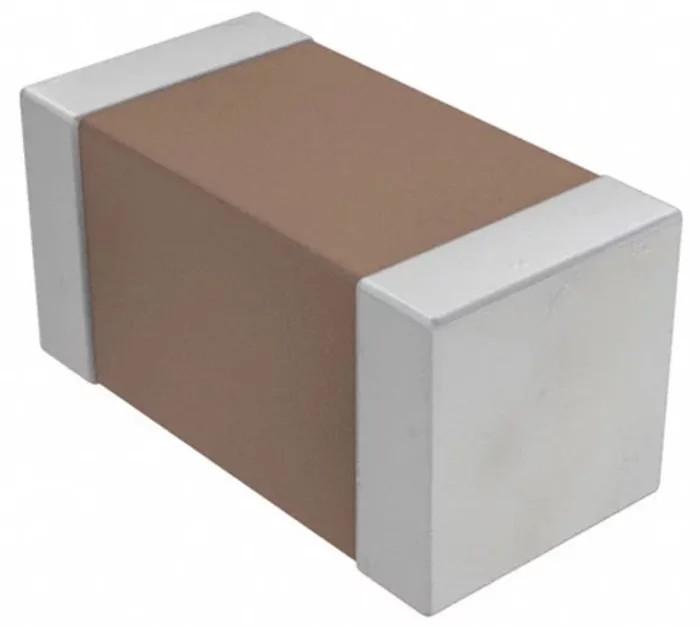

TDK 47 pF 25V DC ±5% Multilayer Ceramic Capacitor, Surface Mount 0603 Package CGA1A2C0G1E470J030BA

TDK model CGA1A2C0G1E470J030BA is a precision 47 pF multilayer ceramic capacitor with a voltage rating of 25V DC and a tolerance of ±5%. This surface mount device comes in a standard 0603 package, making it suitable for high-density electronic assemblies.

The capacitor employs the C0G (Class I) dielectric, known for excellent temperature stability and low loss, delivering consistent performance across a wide temperature range from -55°C to 125°C. Featuring nickel barrier solder terminations plated with tin, it ensures mechanical robustness and reliable solder joints.

Certified to the automotive standard AEC-Q200, these capacitors are engineered to meet demanding automotive electronics requirements including battery line smoothing, sensor modules, and engine control units. They also find extensive use in smart grid devices, solar power inverters, AC-DC battery chargers, and transportation electronics due to their low equivalent series resistance (ESR) and low equivalent series inductance (ESL).

TDK's mature manufacturing process guarantees superior reliability and mechanical strength, suitable for high accuracy automatic mounting systems. The compact 0603 package dimensions allow integration into space-constrained applications without sacrificing performance.

This capacitor features a stable C0G dielectric type ensuring minimal capacitance variation. It operates reliably within a temperature range of -55°C to 125°C. The device complies with automotive standard AEC-Q200, suitable for automotive use.

Packaging is provided as tape and reel facilitating automated mounting. The capacitor offers low ESR and low ESL for excellent frequency characteristics. Cadmium-free nickel barrier terminations with plated tin solder coating provide durability.

Ideal applications include automotive battery line smoothing, sensor modules, and engine control units. Also fits smart meters, solar inverters, AC-DC battery chargers and other industrial electronic circuits. Compact dimensions of 0.6mm length, 0.3mm width, and 0.3mm height suit high-density PCB layouts.
