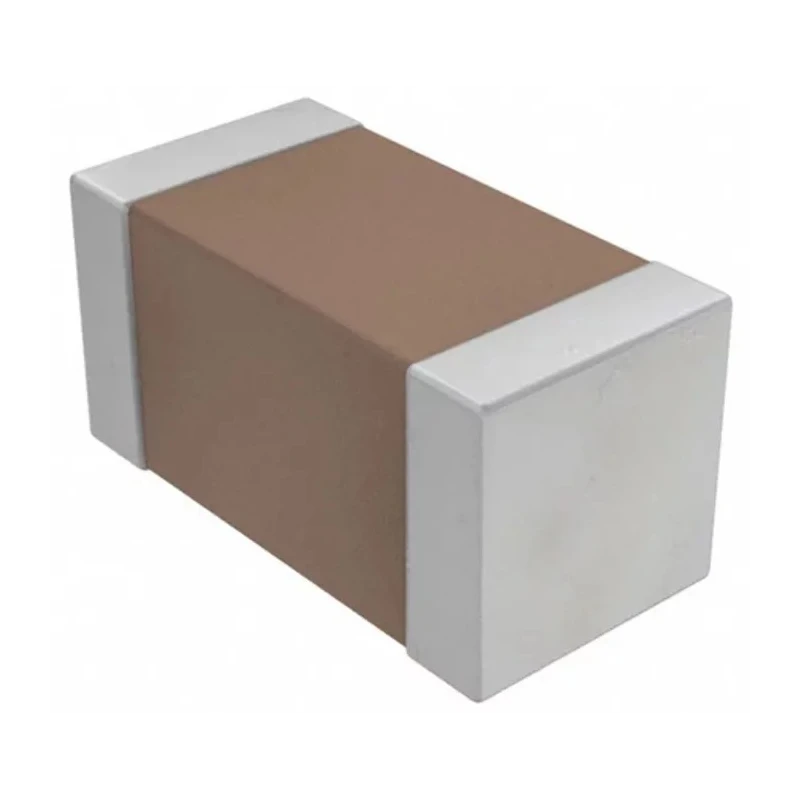

TDK 68 pF Multilayer Ceramic Capacitor, 50V DC, ±5 % Tolerance, Surface Mount 0603 Package CGA1A2C0G1H680J030BA

Free Delivery in India | Lowest Global Shipping Charges

TDK 68 pF Multilayer Ceramic Capacitor, 50V DC, ±5 % Tolerance, Surface Mount 0603 Package CGA1A2C0G1H680J030BA



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Voltage	50V dc
Brand	TDK
Height	0.3mm
Length	0.6mm
Model	CGA1A2C0G1H680J030BA
Packaging	Tape & Reel
Width	0.3mm
Mount Type	Surface
Series	CGA
Termination Type	Solder
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	68pF
Minimum Operating Temperature	-55°C
Package/Case	0603
Dielectric	C0G
Automotive Standard	AEC-Q200
Suppression Class	Class I

Key Features

This capacitor features a surface mount 0603 package ensuring compact PCB integration.
It uses a stable C0G dielectric with superior temperature characteristics suited for high accuracy.
The component is AEC-Q200 certified, making it reliable for automotive electronic systems.
Low Equivalent Series Resistance (ESR) enhances ripple current handling and thermal performance.
Designed for automotive battery line smoothing, sensor modules, and engine control units.
Supports operation from -55°C up to 125°C, allowing use in harsh environments.
It is supplied in tape and reel packaging optimizing automated assembly efficiency.

Product Description

The TDK CGA1A2C0G1H680J030BA is a highly reliable 68 pF multilayer ceramic capacitor designed for demanding electronic applications. Featuring a compact 0603 surface mount package with dimensions of 0.6 mm length, 0.3 mm width, and 0.3 mm height, it supports a voltage rating of 50V DC with a tolerance of ±5 %. This component utilizes a C0G dielectric known for excellent thermal stability and low dielectric losses.

This capacitor meets the AEC-Q200 automotive quality standard, ensuring robust operation in automotive environments. It is widely used in automotive battery line smoothing, sensor interface circuits, anti-lock braking systems, infotainment modules, and engine control units. The device supports a broad operating temperature range from -55°C to 125°C.

The CGA Series capacitors from TDK are manufactured with precision multilayer technology, enabling low Equivalent Series Resistance (ESR) and minimal self-heating. Their high ripple current tolerance and superior frequency response make them ideal for high-performance applications in automotive, industrial, and consumer electronics.

The product is supplied in tape and reel packaging enabling efficient pick-and-place assembly for automated manufacturing processes. Nickel barrier terminations covered with plated tin ensure reliable solderability.

Compact 0603 surface mount case for space-constrained designs. Stable C0G dielectric ensures high accuracy and low loss. AEC-Q200 certification for automotive reliability. Wide temperature operation from -55°C to 125°C. Low ESR and excellent frequency characteristics.

Tape and reel packaging for automated assembly.

This TDK Multilayer Ceramic Capacitor is an ideal choice for a range of electronic, automotive, and industrial applications requiring stable capacitance, durability, and precise performance. Discover more capacitors and electronic components in the Electronics & Electricals category at EnvMart.
