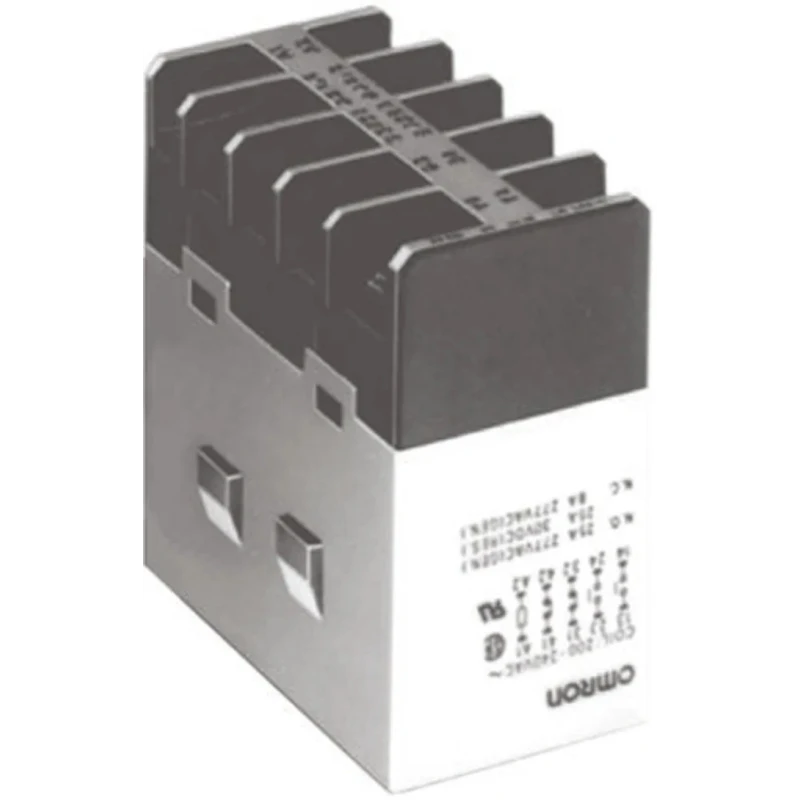

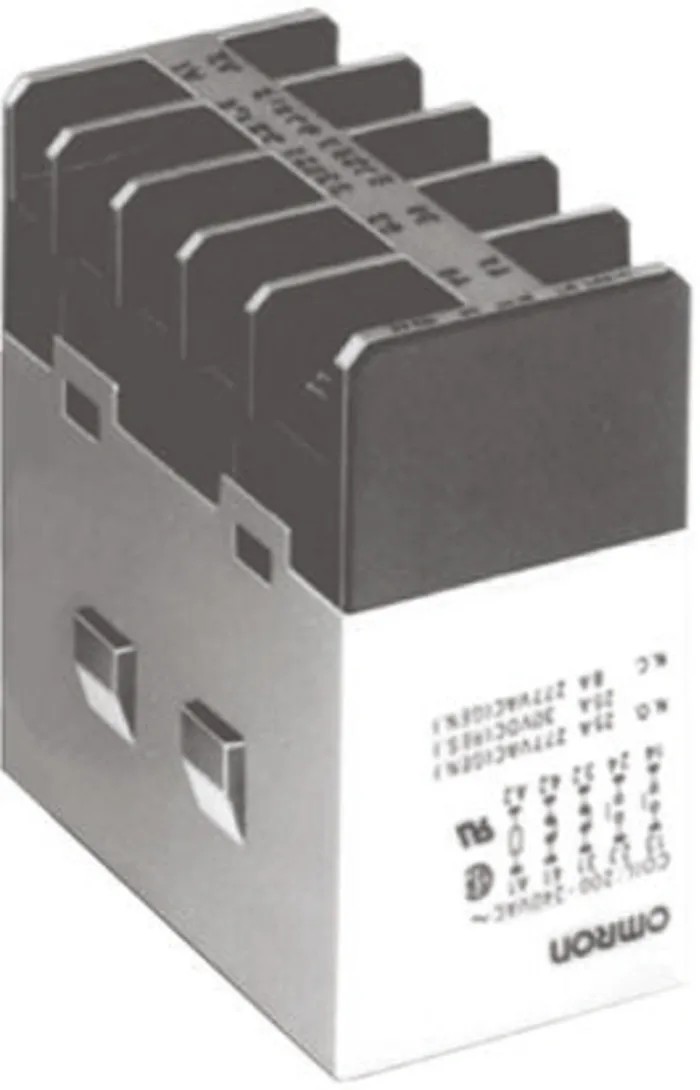

Omron Panel Power Relay 240V Coil Voltage 25A Switching Current 3PDT G7J-3A1B-B DC24
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 64mm |
| Length | 51.5mm |
| Model | G7J-3A1B-B DC24 |
| Width | 34.5mm |
| Mount Type | Panel |
| Series | G7J |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | 3PDT |
| Minimum Operating Temperature | -25°C |
| Switching Current | 25A |
| Terminal type | Screw |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CSA, UL |
| Coil Resistance | 288Ω |
| Coil Voltage | 240V |
| Switching DC Voltage | 100V |
| Switching AC Voltage | 250V |
| Coil Power | 2.6W |
Key Features
- Features a three-pole double-throw contact configuration supporting 25A load capacity.
- Operates with coil voltage of 240V and coil power consumption of 2.6W.
- Coil resistance measures 288 ohms ensuring stable drive characteristics.
- Provides screw terminal connections for secure panel mounting and high-current wiring.
- Supports AC switching voltage up to 250V and DC switching voltage up to 100V.
- Operates reliably within ambient temperature range of -25°C to 60°C.
- Complies with recognized CSA and UL safety standards for industrial use.
- Compact dimensions with length 51.5mm, width 34.5mm, and height 64mm enable panel installation.
Product Description
Omron G7J-3A1B-B DC24 Panel Power Relay is an electromechanical switching device engineered for industrial control and automation panels. It features a 240V coil voltage and can switch currents up to 25A using a 3-pole double-throw (3PDT) contact configuration, providing versatile circuit switching capabilities.
Designed for panel mounting, the relay utilizes screw terminal connections for secure wiring and adherence to industrial electrical standards. Its coil resistance of 288 ohms and coil power consumption of 2.6W afford predictable and efficient coil operation.
The relay supports switching AC voltages up to 250V and DC voltages up to 100V, suitable for a range of industrial electrical control applications including motor control and power distribution switching. Its reliable operation across a temperature range of -25°C to 60°C makes it ideal for indoor industrial environments.
Safety and compliance are assured through adherence to CSA and UL certifications ensuring tested and reliable performance in demanding industrial settings. Three-pole double-throw contact configuration supports multi-circuit control.
25A switching current capacity for moderate to high current applications. Stable coil operation with 240V voltage, 2.6W power, and 288Ω resistance. Screw terminal mounting enables secure and easy panel installation. Wide operating temperature range from -25°C to 60°C for robust industrial use.
CSA and UL approvals confirm adherence to safety standards. Compact dimensions facilitate integration into control panels.
This power relay is widely used in industrial automation panels, motor control circuits, contactor interlock schemes, and electrical control systems requiring reliable multi-circuit switching. Its panel mounting capability and secure screw terminals make it suitable for fixed installations within control enclosures.
Explore more on EnvMart for high-quality Power Relays and other industrial electrical components designed for durable performance and compliance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 240V.
This model can switch currents up to 25A.
It features a three-pole double-throw (3PDT) contact configuration.
The relay has dimensions of 51.5mm in length, 34.5mm in width, and 64mm in height.
The coil power consumption is 2.6W.
It supports AC switching voltage up to 250V and DC switching voltage up to 100V.
The coil resistance measures 288 ohms.
It operates reliably within an ambient temperature range of -25°C to 60°C.
This unit utilizes screw terminal connections for secure wiring.
It complies with CSA and UL safety standards for industrial use.
The country of origin for this power relay is Japan.
It is suitable for applications in industrial automation panels, motor control circuits, and electrical control systems requiring reliable multi-circuit switching.
