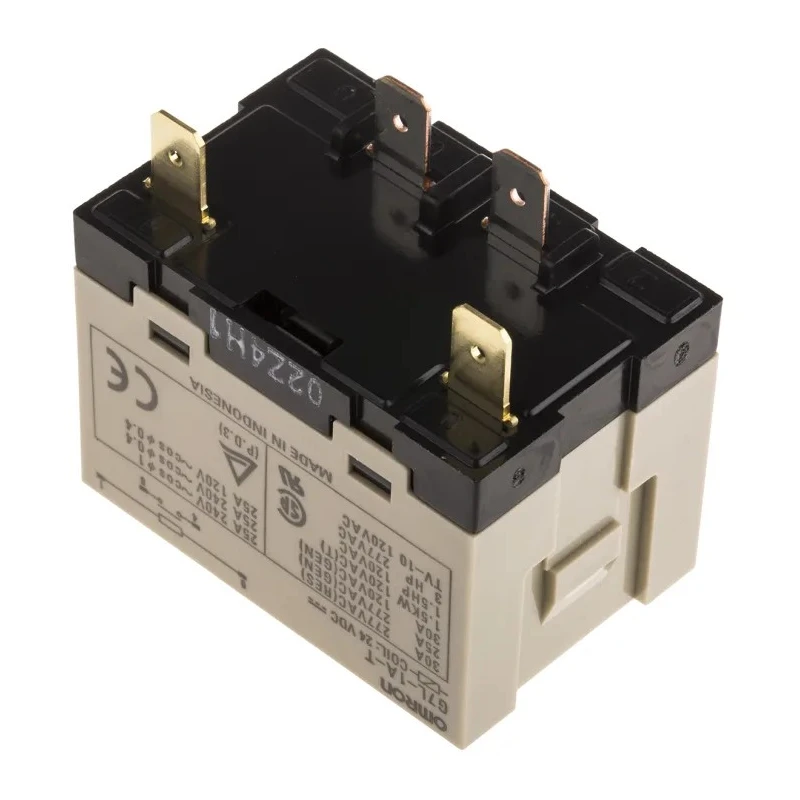

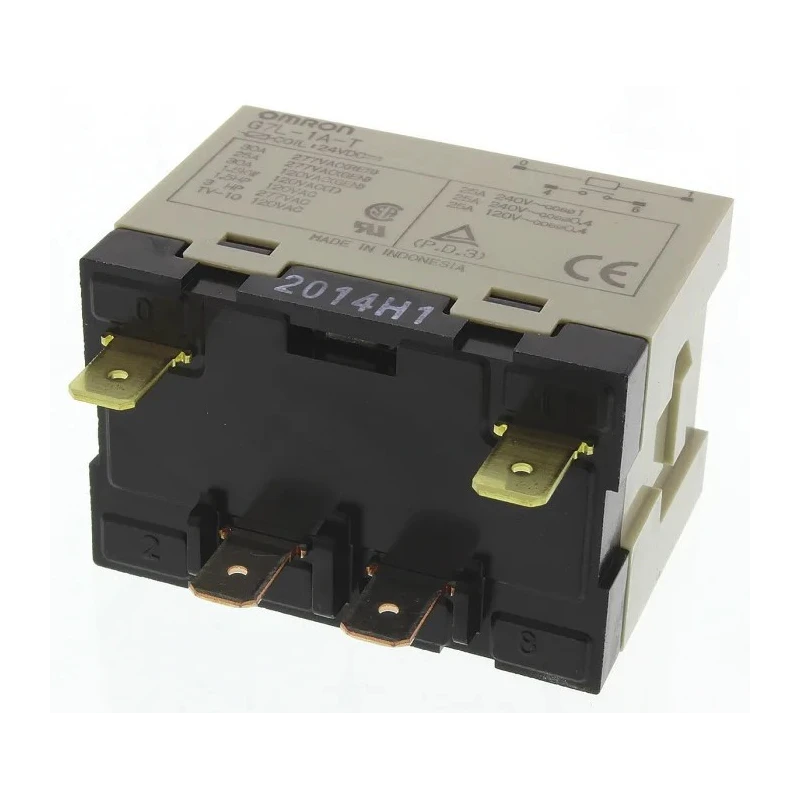

Omron Panel Power Relay 24V DC Coil, 30A Switching Current, SPST, Quick Connect, G7L-1A-T DC24

The Omron G7L-1A-T DC24 panel power relay is a high-performance switching solution for panel-based automation, engineered for applications requiring significant current handling and reliable control. Featuring a 24V DC coil and a maximum switching current of 30A, this relay is well-suited for industrial, commercial, and building management scenarios.

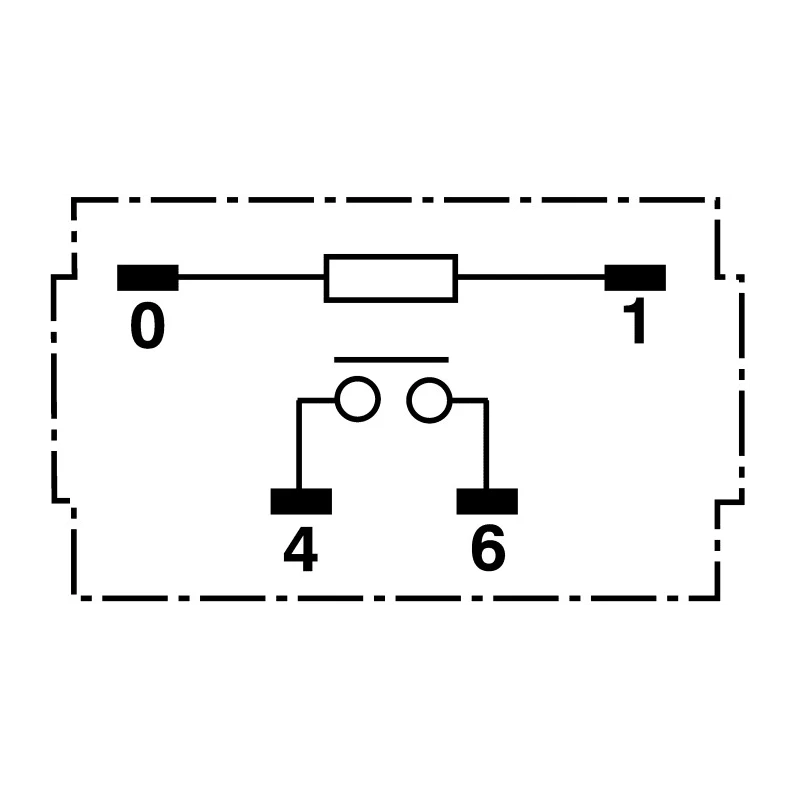

Its SPST (Single Pole Single Throw) contact configuration provides straightforward, robust switching, making it ideal for controlling heating elements, motors, and lighting systems. Quick connect terminals facilitate fast, secure panel installation, minimizing downtime and maintenance complexity. The relay's insulation materials are flame-resistant, ensuring safety and longevity in environments where electrical integrity is critical.

With a coil resistance of 303 ohms and coil power rated at 1.9W, the relay maintains stable operation even during transient voltage drops, supporting up to 50% loss of rated voltage. The 250V AC switching voltage and 6.6kVA switching power extend its utility for high-voltage circuits in water heaters and dryers, as well as controllers for power tools, magnetron control in microwaves, copy machine lamp controls, motor drivers, and power supply switching in office equipment.

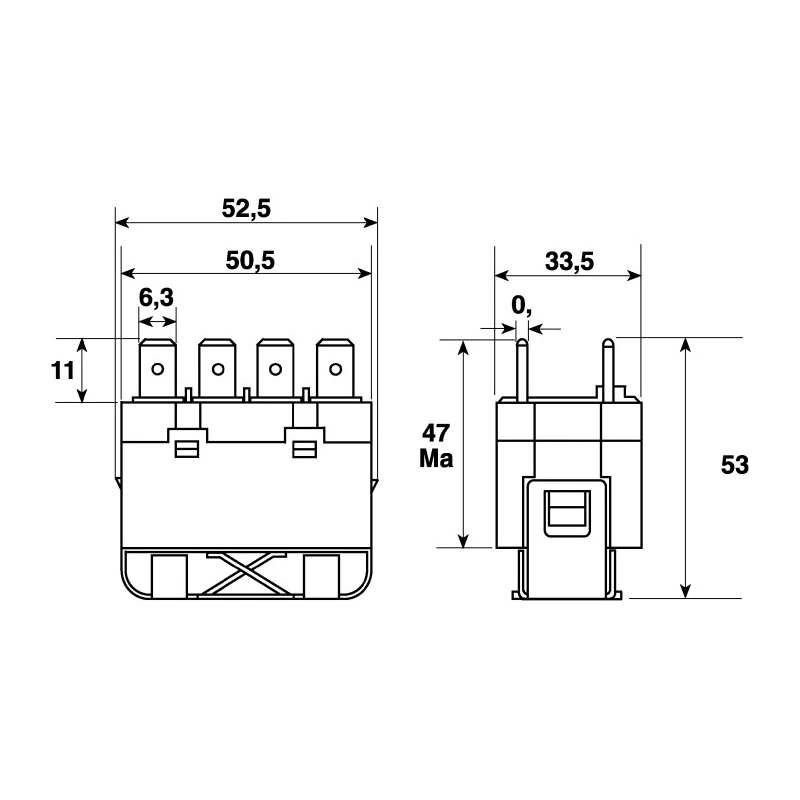

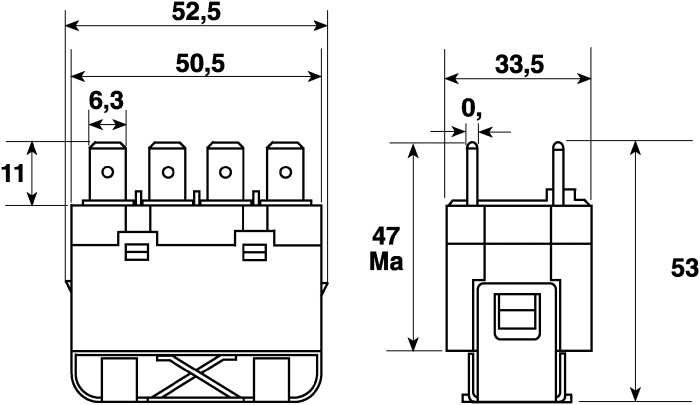

The G7L-1A-T DC24 relay offers an operating temperature range from -25°C to 60°C, making it reliable for both low and high ambient conditions. Its compact size - Length 52.5mm, Width 33.5mm, Height 53mm - allows for efficient panel layout without sacrificing performance. Contact resistance of 50 milliohms assures efficient conductivity and operational accuracy.

Standard compliance includes RoHS, and the device is structurally designed to support industrial and commercial safety standards. Its versatility in panel mounting and compatibility with quick connect terminals make integration into new or existing systems straightforward.

Common industrial use cases for the Omron G7L-1A-T DC24 include manufacturing, HVAC control panels, water treatment plant control, electrical distribution management, and automation in laboratories and commercial installations.

Ideal for heavy-duty panel mounting in industrial automation and control systems. Features a single-pole single-throw (SPST) contact configuration for straightforward switching. Utilizes a quick connect terminal type for fast and secure installation.

Flame-resistance insulation materials enhance durability and operational safety. Operating temperature range from -25°C to 60°C for reliability in demanding environments. Compatible with controllers for water heaters, dryers, power tools, motors, and lighting.

High dielectric strength and resistance to momentary voltage drops up to 50% of rated voltage. RoHS compliant, supporting environmental and safety requirements. Explore more industrial relays and panel mounting solutions in the Power Relay category from Omron and other trusted brands on EnvMart.
