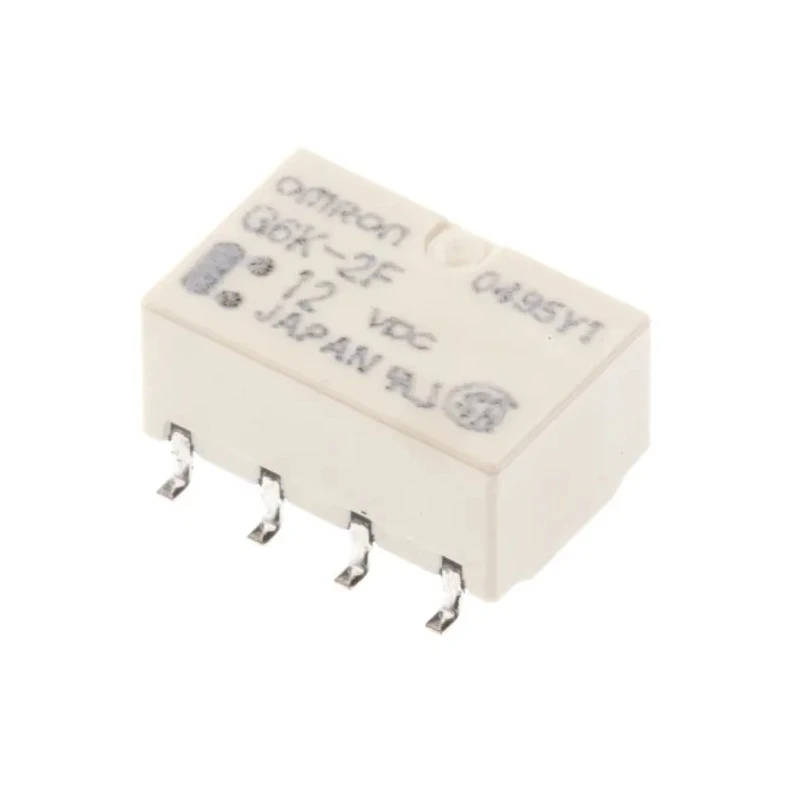

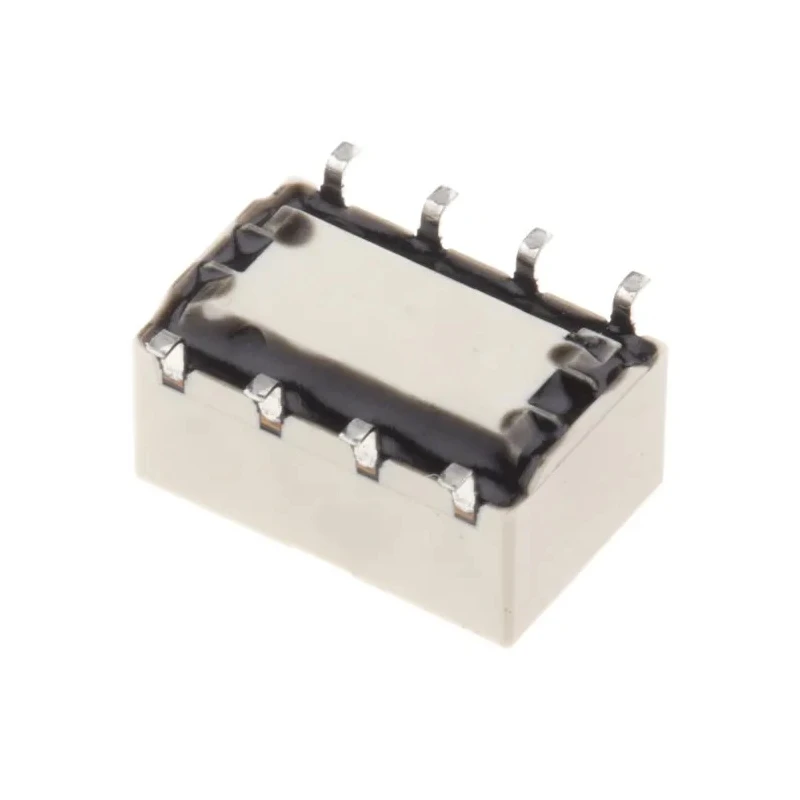

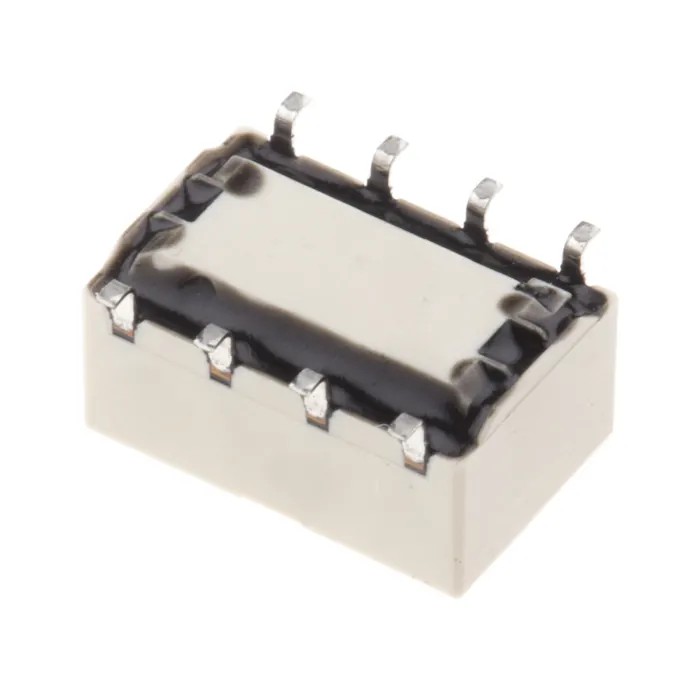

Omron Surface Signal Relay 12V DC Coil, 1A Switching Current, DPDT Contact Configuration G6K-2F 12DC
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 5.4mm |
| Length | 10.6mm |
| Model | G6K-2F 12DC |
| Width | 6.5mm |
| Mount Type | Surface |
| Contact Material | Gold Plated |
| Series | G6K |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 1A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Coil Resistance | 1300Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 60V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 100mW |
Key Features
- Low profile subminiature relay measuring 5.4mm height by 6.5mm width and 10.6mm length.
- Fully sealed construction ensures reliable performance in various industrial environments.
- Consumes low coil power of approximately 100mW for energy-efficient operation.
- Gold plated contact material guarantees high conductivity and durability.
- Operates within temperature range from -40°C to 70°C, suitable for demanding applications.
- Surface mount design with PCB terminal type allows for secure and easy installation.
- Switching AC voltage up to 125V AC and DC voltage up to 60V DC for versatile signal control.
- Meets RoHS compliance and is manufactured in Japan, assuring high quality standards.
Product Description

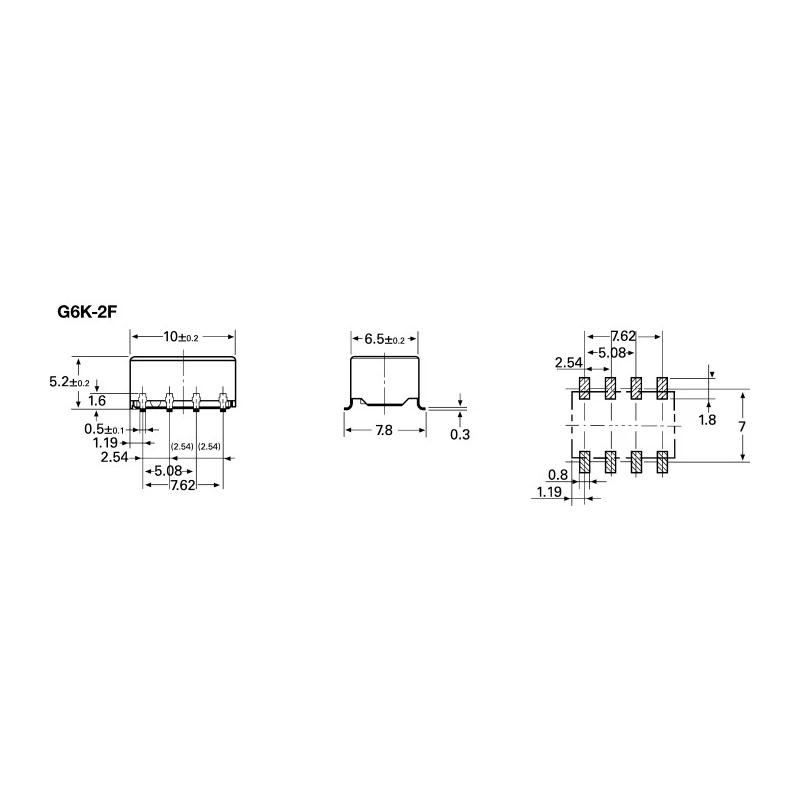

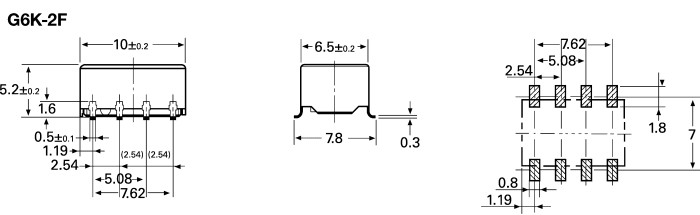

Omron G6K-2F 12DC Surface Signal Relay features a compact low profile design with dimensions of 5.4mm in height, 6.5mm in width, and 10.6mm in length, making it ideal for space-sensitive PCB applications.
This DPDT relay operates on a 12V DC coil voltage and supports a switching current of 1A, with the ability to switch AC voltages up to 125V and DC voltages up to 60V. Its fully sealed construction protects internal components against environmental factors, enhancing reliability in industrial and commercial automation systems.
With a low coil power consumption of 100mW and coil resistance of 1300Ω, it delivers energy-efficient performance. The gold plated contacts provide superior conductivity and durability, essential for signal relay applications requiring consistent performance.
The relay supports operation under a wide temperature range from -40°C to 70°C, making it suitable for varied environmental conditions including industrial, manufacturing, and automation control systems. The PCB terminal mount type ensures stable and straightforward installation on printed circuit boards.
The G6K series includes excellent soldering characteristics due to its unique terminal structure optimized for high infrared irradiation efficiency. This product conforms to RoHS standards for environmental compliance and is manufactured in Japan, reflecting reliable quality and adherence to industry standards.
The Omron Surface Signal Relay G6K-2F 12DC is commonly used in industrial automation, electrical signaling, instrumentation, and other control circuits where compact, reliable switching is required.
Low profile subminiature relay measuring 5.4mm height by 6.5mm width and 10.6mm length. Fully sealed construction ensures reliable performance in various industrial environments. Consumes low coil power of approximately 100mW for energy-efficient operation.
Gold plated contact material guarantees high conductivity and durability. Operates within temperature range from -40°C to 70°C, suitable for demanding applications. Surface mount design with PCB terminal type allows for secure and easy installation.
Switching AC voltage up to 125V AC and DC voltage up to 60V DC for versatile signal control. Meets RoHS compliance and is manufactured in Japan, assuring high quality standards. Explore more Signal Relay products and related components in the Electronics & Electricals category on EnvMart for trusted quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 12V DC.
It supports a maximum switching current of 1A.
The relay measures 5.4mm in height, 6.5mm in width, and 10.6mm in length.
The relay features a DPDT (Double Pole Double Throw) contact configuration.
It can switch AC voltage up to 125V and DC voltage up to 60V.
This model uses a surface mount design with a PCB terminal type for installation.
The coil power consumption is approximately 100mW.
It operates within a temperature range from -40°C to 70°C.
The contacts are made from gold plated material, ensuring high conductivity and durability.
Yes, this relay meets RoHS compliance standards.
It is manufactured in Japan, reflecting high quality standards.
This relay is commonly used in industrial automation, electrical signaling, instrumentation, and control circuits.
