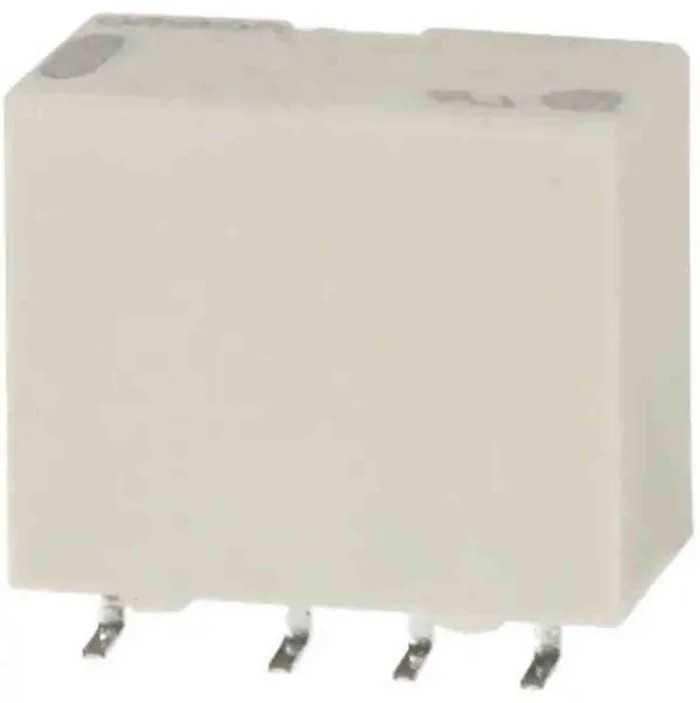

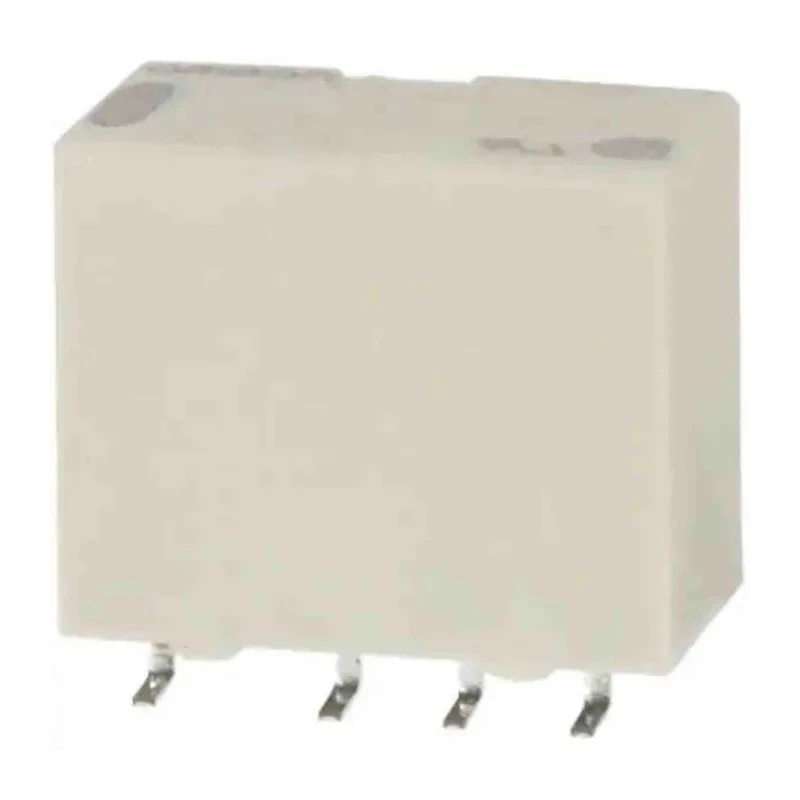

Omron Surface Signal Relay 12V DC Coil 1A DPDT G6J-2FS-Y-TR DC12

Omron G6J-2FS-Y-TR DC12 Surface Signal Relay is engineered for electronic applications requiring precise signal switching and long-term reliability. Featuring a 12V DC coil and a double pole double throw (DPDT) contact configuration, this relay provides efficient and dependable control in industrial, automation, and electrical systems.

The relay's surface mount design supports compact PCBs, allowing for dense circuit layouts. Its gold plated bifurcated crossbar contact type offers reliable conductivity and lowers contact resistance, rated at 100mΩ maximum, improving signal integrity in diverse applications.

Designed for durability, the relay operates safely over a broad temperature range of -40°C to 85°C and withstands dielectric voltages up to 1500 VAC with impulse voltages of 2500 V for transient protection. The single winding latching coil type conserves power, rated at only 140mW coil power consumption, enhancing overall system energy efficiency.

Its compact footprint measures approximately 10.6mm in length, 5.7mm in width, and 9mm in height, making it suitable for high-density electronic assemblies. The relay supports switching currents up to 1A and switching voltages up to 125V AC and 110V DC, which covers a wide range of signal relay needs.

Typical industrial use cases include automation control systems, signal conditioning in electronic devices, instrumentation, and communications equipment. The relay's high insulation resistance (minimum 1000 MΩ) and gold-plated contacts provide stable performance even in demanding environments.

Surface mounting relay for compact assembly and high-density PCB integration. Maintains high reliability with gold plated contact material and bifurcated crossbar design. Wide operating temperature range suitable for harsh industrial settings.

Single winding latching coil reduces power consumption for efficient operation. High dielectric and impulse voltage ratings ensure electrical safety and durability. Compact dimensions and 1A switching capacity accommodate diverse electronic designs.

This Omron model G6J-2FS-Y-TR DC12 relay is RoHS compliant and manufactured in China, offering quality consistent with industrial standards. It is ideal for design engineers and system integrators seeking dependable signal relay solutions.
