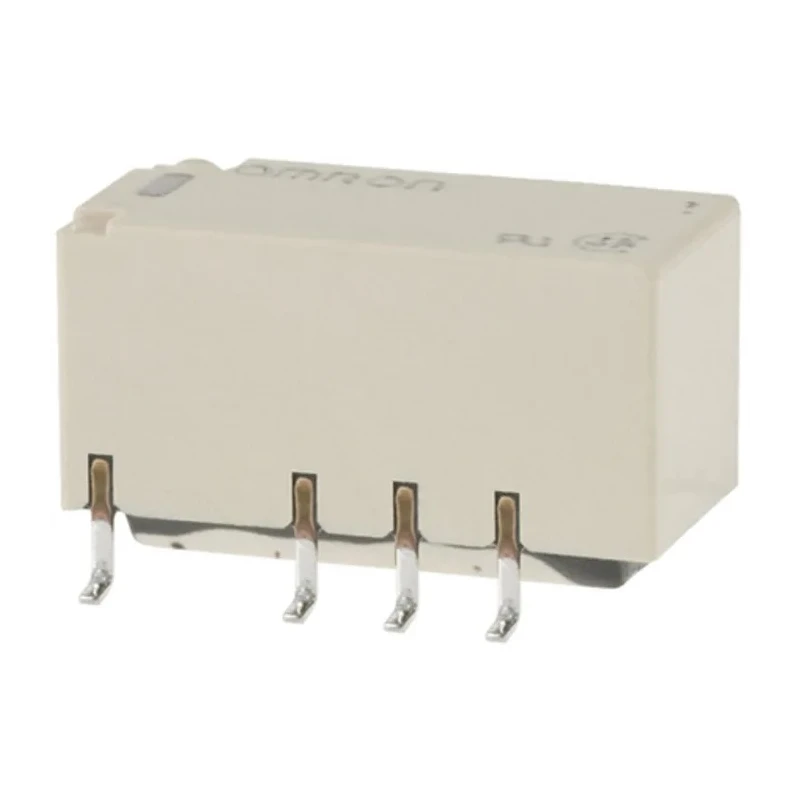

Omron Surface Signal Relay 12V DC Coil, 2A Switching Current, DPDT Contact Configuration G6S-2F DC12

Omron G6S-2F DC12 Surface Signal Relay is engineered for industrial and automation electrical applications requiring precise and reliable switching. Featuring a 12V DC coil and a double pole double throw (DPDT) contact configuration, this compact relay handles switching currents up to 2 amps efficiently.

The relay's surface mount design facilitates easy integration onto printed circuit boards, while its compact dimensions (14.8mm length x 7.3mm width x 9.2mm height) conserve space in dense electronic assemblies.

With a coil power consumption of only 140mW and a coil resistance of 1000 ohms, the relay offers high sensitivity and low power operation. The silver contacts ensure robust electrical connection and durability over long-term use.

It supports switching of AC voltages up to 250V and DC voltages up to 220V, suitable for a range of signal conditioning and control functions in automation systems. The device is RoHS compliant, meeting environmental regulatory standards.

Designed to operate reliably within a temperature range of -40°C to 85°C, this relay provides stable performance in demanding industrial environments. The fully sealed construction offers exceptional dielectric strength between coil and contacts (2000Vac) and between contacts of different polarity (1500Vac), ensuring operational safety and noise immunity.

Applications for this relay include industrial automation, control circuits, signal conditioning, HVAC systems, manufacturing equipment, and other electrical control panels requiring miniature and reliable switching components.

Operates with a coil voltage of 12V DC for efficient energy consumption. Provides double pole double throw (DPDT) contact configuration for versatile circuit control. Supports a switching current of 2A suitable for signal relay duties.

Surface mount design with dimensions of 14.8mm length, 7.3mm width, and 9.2mm height for compact PCB integration. Features a coil power rating of 140mW and coil resistance of 1000Ω for precise operation. Silver contact material ensures high conductivity and durability.

Capable of switching voltages up to 250V AC and 220V DC with reliability. Meets RoHS compliance ensuring environmental and safety standards. Wide operating temperature range from -40°C to 85°C for industrial applications.

Fully sealed construction and high dielectric strength improve operational reliability.

This Omron surface signal relay is an excellent choice for engineers and technicians designing compact, energy-efficient automation and control systems. Explore more Signal Relays from Omron and other reliability-focused brands in our Electronics & Electricals category at EnvMart.
