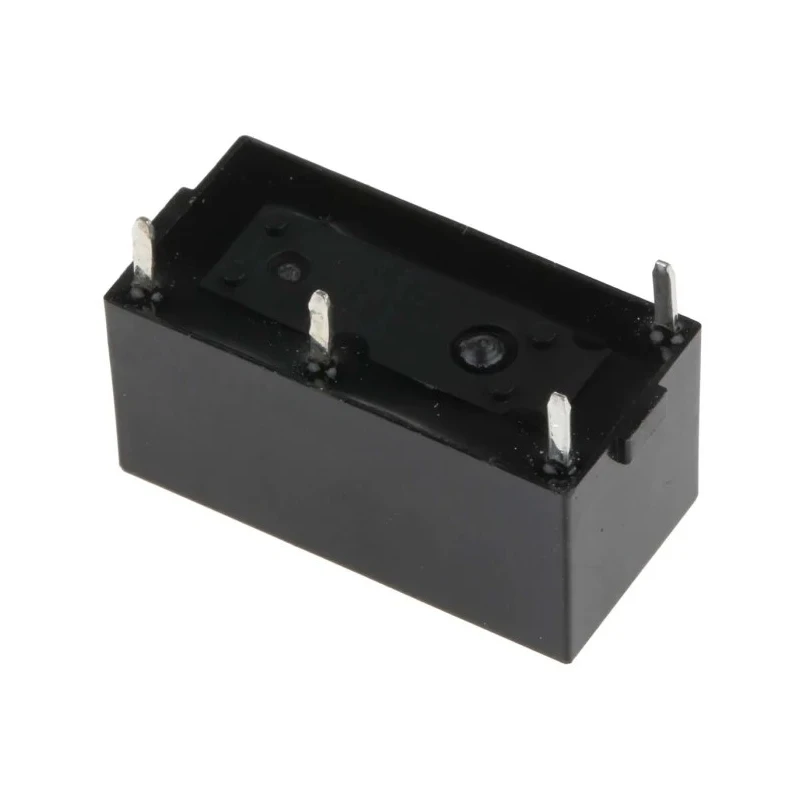

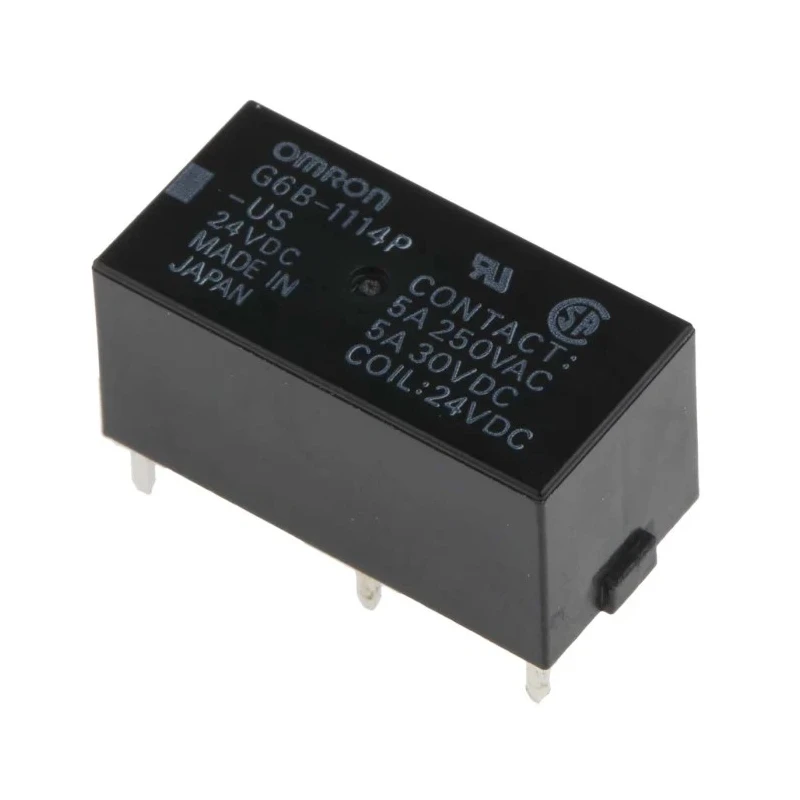

Omron PCB Power Relay 24V DC Coil 5A Switching Current SPST G6B-1114P-US 24DC
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 10mm |
| Length | 21mm |
| Model | G6B-1114P-US 24DC |
| Width | 10mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6B |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Contact Resistance | 30mΩ |
| Standards/Approvals | VDE, UL, RoHS, EN, CSA |
| Coil Resistance | 2.9kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Coil Power | 200mW |
| Switching Power | 360W |
| Omron PCB Mount Non-Latching Relay, 24V dc Coil, 5A Switching Current, SPSTBrand | Omron |
Key Features
- Features single-pole single-throw (SPST) contact configuration.
- Compact 21mm x 10mm x 10mm size for easy PCB mounting.
- Operates with 24V DC coil voltage and 5A switching current.
- Supports switching voltages of 380V AC and 125V DC.
- Silver alloy contacts with low 30mΩ contact resistance.
- Coil resistance of 2.9 kΩ and coil power consumption of 200mW.
- Suitable for operating temperatures from -25°C to +70°C.
- Complies with VDE, UL, RoHS, EN, and CSA standards.
Product Description
Omron G6B-1114P-US 24DC PCB Power Relay is a high-performance SPST relay designed for automation, industrial electrical equipment, and power control applications. Operating at a coil voltage of 24V DC with 5A switching current, this relay delivers efficient and reliable performance in compact dimensions measuring 21mm by 10mm by 10mm.
This relay features a through-hole solder terminal design for secure PCB mounting and excellent electrical connectivity.
It supports switching voltages up to 380V AC and 125V DC with a switching power rating of 360W, making it suitable for varied electronic and electrical loads including consumer products and heavy machinery control.
Operating reliably between -25°C and +70°C, the relay is built to endure demanding environmental conditions. The silver alloy contacts provide low contact resistance of 30mΩ, enhancing conductivity and reducing power losses.
The coil has a resistance of 2.9 kΩ and consumes 200mW of power ensuring low energy consumption.
Certified with VDE, UL, RoHS, EN, and CSA, this relay meets international safety and quality requirements. Its 3 kV AC isolation voltage between coil and contact adds further protection.
Applications include industrial automation systems, power control circuits, electronic load switching, consumer electrical device integration, and more. This relay features a single-pole single-throw (SPST) contact configuration.
Compact dimensions optimized for PCB mounting integration. Designed to operate over a wide temperature range from -25°C to +70°C. Complies with multiple global standards for certification and safety. Silver alloy contacts provide durability and low resistance.
Energy-efficient 24V DC coil with low power consumption. Supports both AC and DC switching voltages with high isolation. Ideal for industrial, electrical, automation, and consumer electronic systems. Explore more power relay solutions and accessories at EnvMart for a wide range of industrial and automation applications.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current rating of 5A.
The coil voltage for this relay is 24V DC.

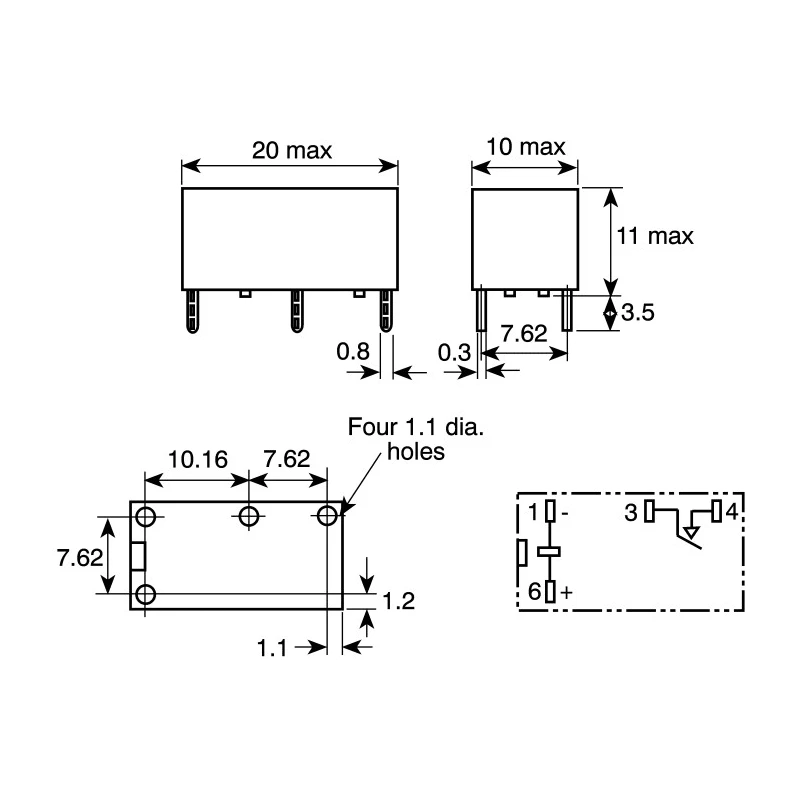

It measures 21mm in length, 10mm in width, and 10mm in height.
The relay supports a maximum switching voltage of 380V AC and 125V DC.
This relay features a single-pole single-throw (SPST) contact configuration.
The contact resistance is 30mΩ, which enhances conductivity.
The coil resistance is 2.9 kΩ and it consumes 200mW of power.
It operates reliably between -25°C and +70°C.
This relay complies with VDE, UL, RoHS, EN, and CSA standards.
The switching power rating is 360W.
It features a solder terminal type for secure PCB mounting.
It is suitable for industrial automation systems, power control circuits, and electronic load switching.
