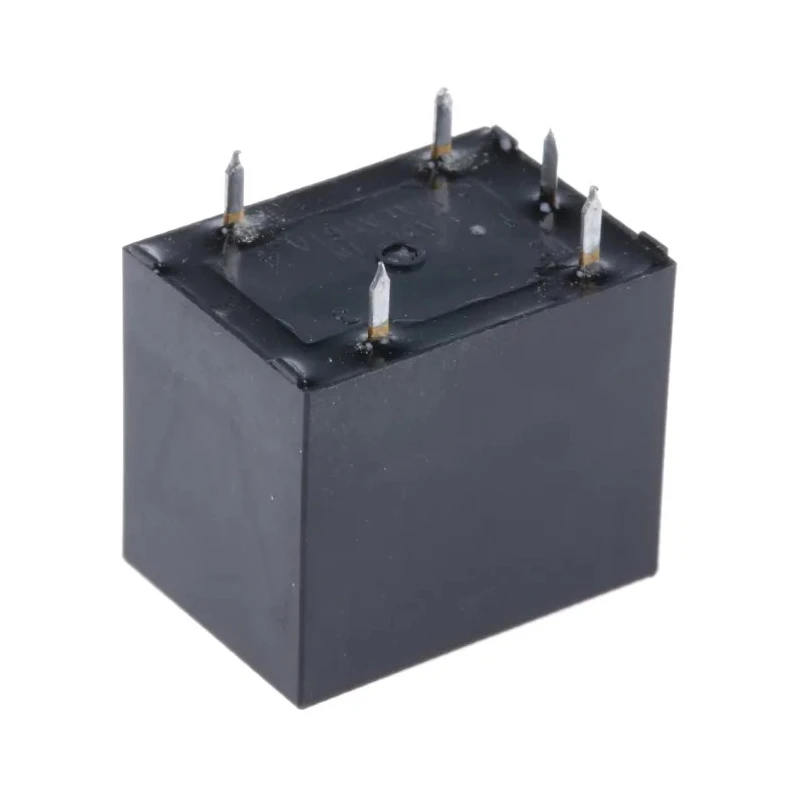

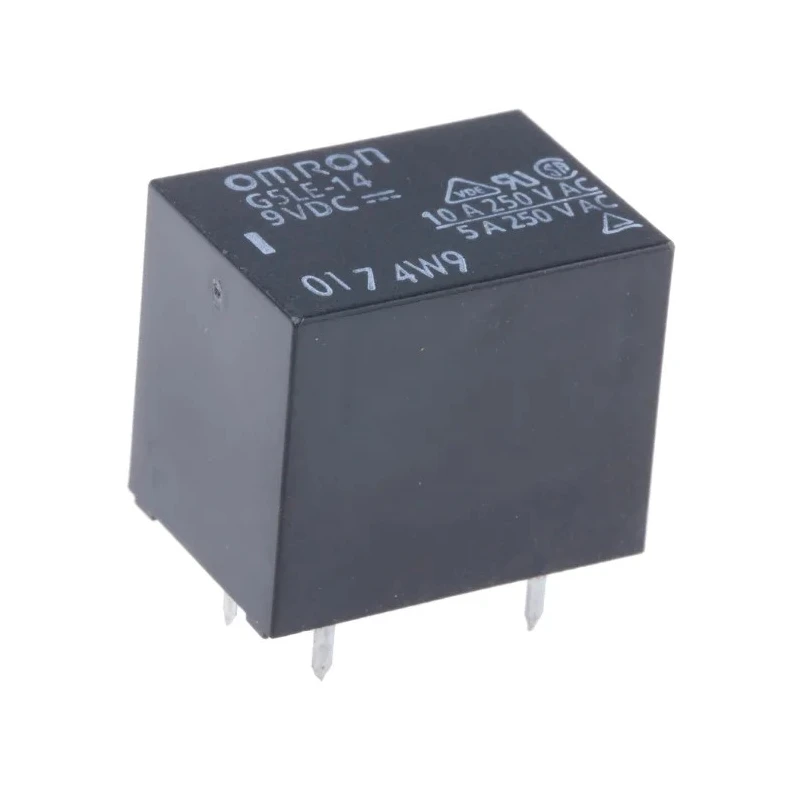

Omron PCB Power Relay 9V DC Coil 10A Switching Current 1 NO G5LE-14 DC9
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 19mm |
| Length | 22.5mm |
| Model | G5LE-14 DC9 |
| Width | 16.5mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G5LE |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | 1 NO |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Standards/Approvals | VDE, UL, RoHS, EN, CSA |
| Coil Resistance | 200Ω |
| Coil Voltage | 9V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 0.4W |
Key Features
- Features a 9V DC coil voltage for reliable control circuit operation.
- 1 Normally Open (NO) contact configuration suitable for switching applications.
- Supports a switching current of up to 10A for high load capability.

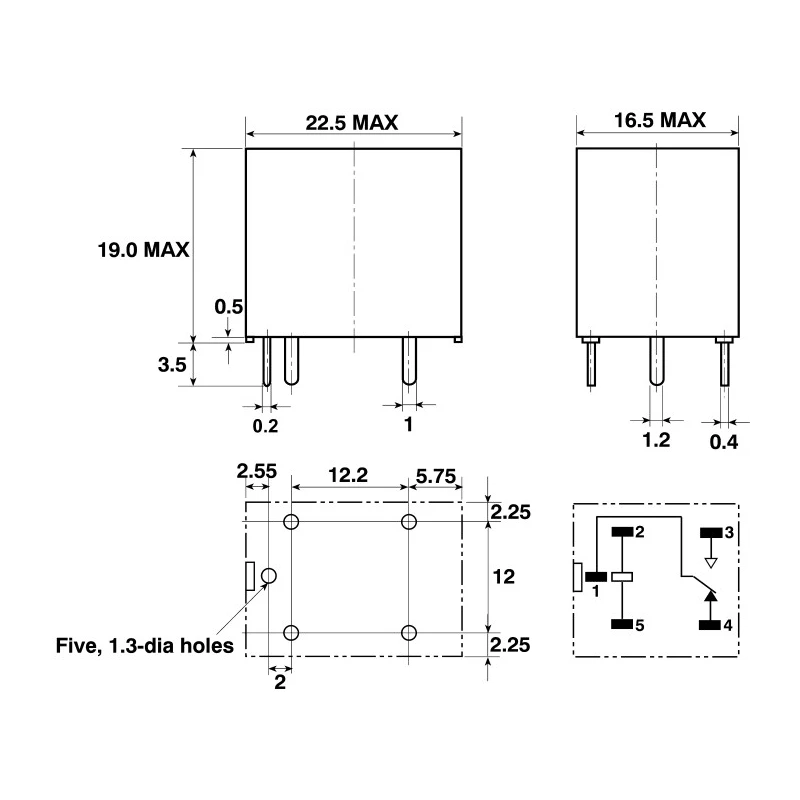

- Compact subminiature sugar cube design measuring 22.5mm length, 16.5mm width, and 19mm height.
- Coil power rating of 0.4W with coil resistance of 200Ω.
- Operating temperature range from -25°C to 85°C for versatile use.
- Switching voltages of 125V DC and 250V AC accommodate various load types.
- Silver alloy contact material ensures durable and low-resistance electrical connections.
Product Description
Omron G5LE-14 DC9 PCB Power Relay is a high-quality, subminiature 'sugar cube' format relay designed for robust electrical control circuit applications. It operates at a coil voltage of 9V DC with a switching current rating of 10A and a single Normally Open contact configuration, ideal for reliable switching performance in various devices.
This relay supports switching voltages of 125V DC and 250V AC, making it suitable for both DC and AC load applications. The coil power consumption is low at 0.4W, with a coil resistance of 200Ω contributing to efficient power usage. Its compact dimensions of 22.5mm (L) x 16.5mm (W) x 19mm (H) allow easy integration on printed circuit boards.
Designed with silver alloy contact material, the relay ensures excellent electrical conductivity and durability under frequent switching. It withstands impulses up to 4500V, enhancing its reliability in industrial and commercial automation systems. Operating temperature range from -25°C to 85°C allows usage in varied environmental conditions.
This product meets international standards including VDE, UL, RoHS, EN, and CSA, confirming its compliance with global safety and environmental regulations.
Omron's G5LE series power relay is ideal for industrial, laboratory, HVAC, manufacturing, and automation use cases. Its PCB pin mounting facilitates secure and compact circuit assembly, improving production efficiency in electrical and electronic device manufacturing.
Features a 9V DC coil voltage for reliable control circuit operation. 1 Normally Open (NO) contact configuration suitable for switching applications. Supports a switching current of up to 10A for high load capability. Compact subminiature sugar cube design measuring 22.5mm length, 16.5mm width, and 19mm height.
Coil power rating of 0.4W with coil resistance of 200Ω. Operating temperature range from -25°C to 85°C for versatile use. Switching voltages of 125V DC and 250V AC accommodate various load types. Silver alloy contact material ensures durable and low-resistance electrical connections.
Compliant with VDE, UL, RoHS, EN, and CSA standards ensuring safety and quality. Explore more high-quality Power Relays and electrical components on EnvMart for your industrial and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of up to 10A, making it suitable for high load applications.
The relay has compact dimensions of 22.5mm in length, 16.5mm in width, and 19mm in height.
It operates at a coil voltage of 9V DC, which is essential for its control circuit operation.
This unit features a Normally Open (NO) contact configuration, suitable for various switching applications.
It can handle switching voltages of 125V DC and 250V AC, accommodating different load types.
The coil power rating for this relay is 0.4W, contributing to efficient power usage.
It operates effectively within a temperature range of -25°C to 85°C, allowing for versatile use in various environments.
The relay is designed with silver alloy contact material, which ensures low-resistance electrical connections.
This product meets several international standards, including VDE, UL, RoHS, EN, and CSA, ensuring compliance with safety and environmental regulations.
It features PCB pin mounting, which allows for secure and compact assembly on printed circuit boards.
The coil resistance for the G5LE-14 DC9 is 200Ω, which is important for its operational efficiency.
This relay is suitable for applications in industrial, laboratory, HVAC, manufacturing, and automation environments.
