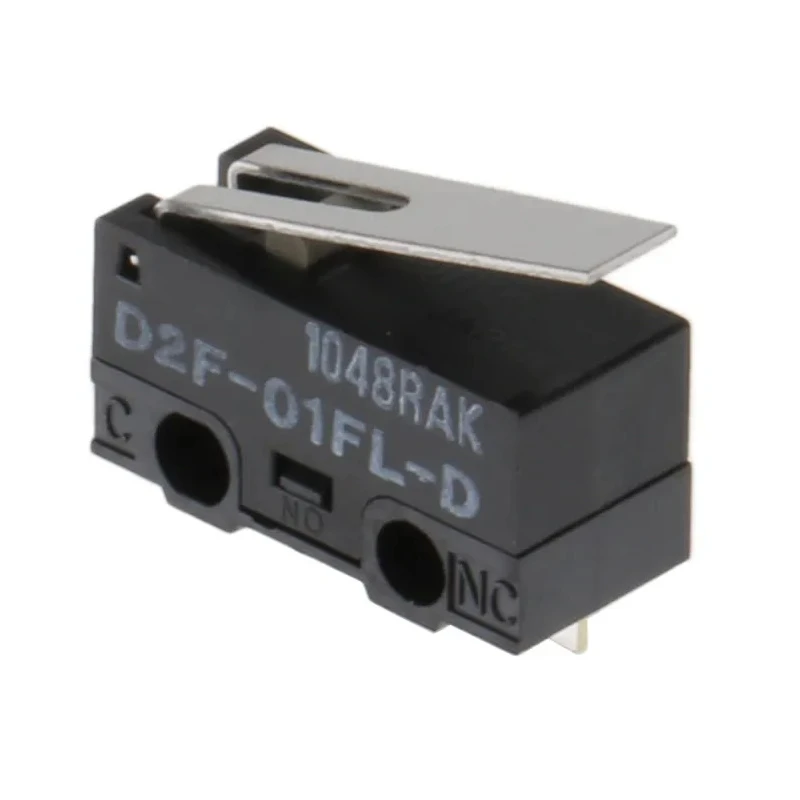

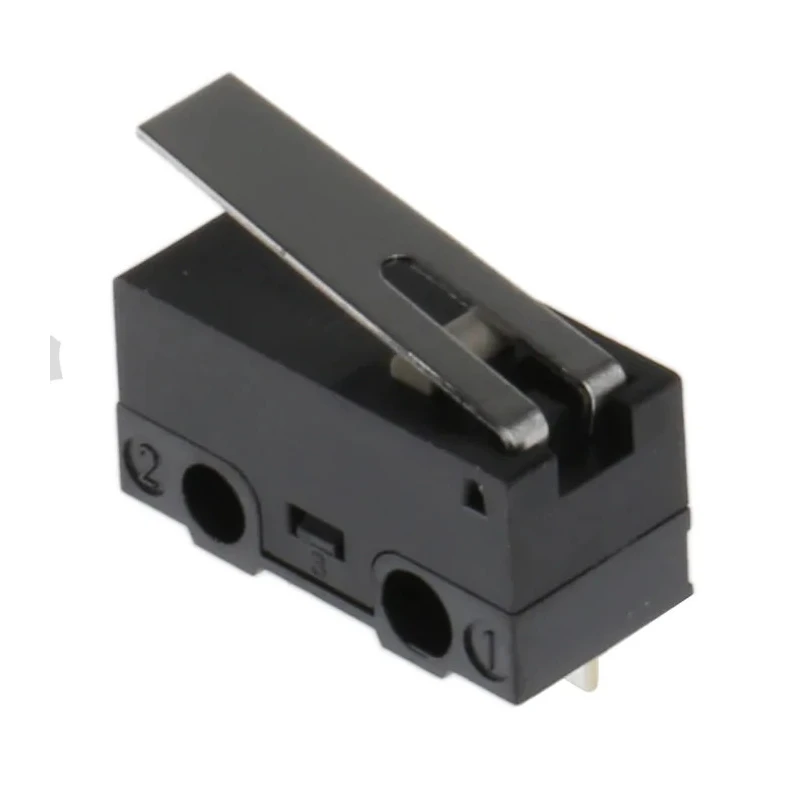

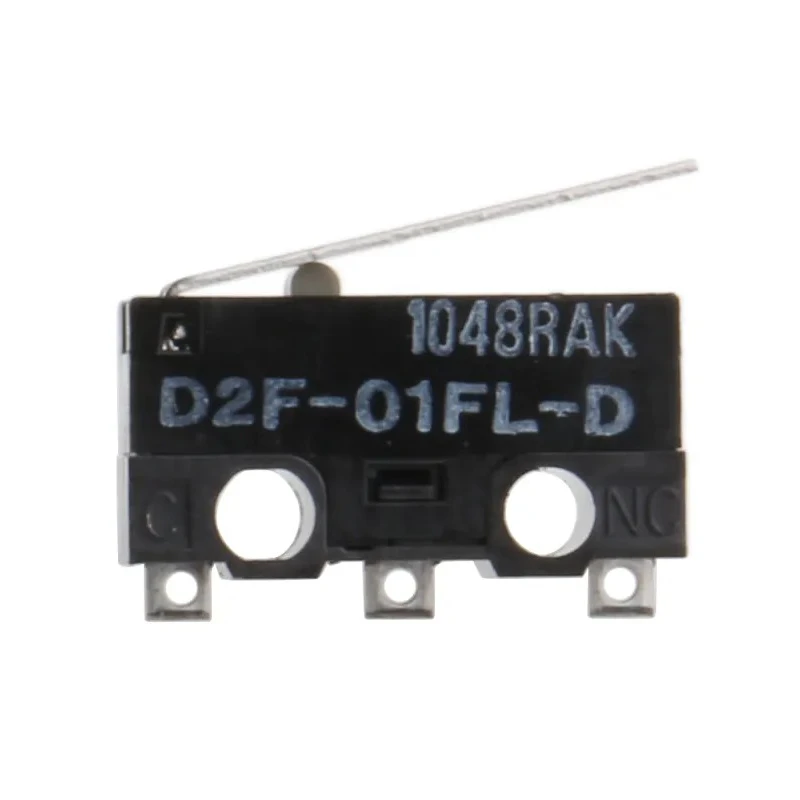

Omron Aratas Hinge Lever Micro Switch, Solder Terminal, 100mA Current, 125 V AC, 30 V DC, SPDT Contact D2F-01FL-D
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Length | 12.8mm |
| Model | D2F-01FL-D |
| Depth | 5.8mm |
| IP Rating | IP40 |
| Series | D2F |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SPDT |
| Actuator Type | Hinge Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 0.25N |
| Mechanical Life | 1000000Operations |
| Contact AC Voltage | 125V ac |
| Microswitch Type | Ultra Subminiature |
Key Features
- Operates at 100mA current rating with SPDT contact configuration.
- Contact voltage of 125 V AC and 30 V DC for versatile use.
- Features a hinge lever actuator type with solder terminal connection.
- Rated IP40 protection for dust resistance.
- Operating force of 0.25N ensures precise actuation.
- Wide operating temperature range from -25°C to 65°C.
- Ultra subminiature microswitch suitable for compact applications.
- Mechanical life rated at 1,000,000 operations for durability.
Product Description
Omron D2F-01FL-D is an ultra subminiature hinge lever micro switch designed for diverse electrical and automation applications. Its solder terminal and SPDT contact configuration provide reliable switching with a rated contact current of 100mA, supporting contact voltages up to 125 V AC and 30 V DC. The IP40 rating protects against dust ingress, enabling use in industrial, commercial, and household equipment.
The switch features a precise operating force of 0.25N and an operating temperature range of -25°C to 65°C, ensuring stable performance under varying environmental conditions. Its mechanical life of 1,000,000 operations underlines its robust design suitable for demanding switching cycles.
Constructed with high-quality gold contacts and a dual spring reverse-action mechanism, the switch prevents flux penetration and enhances longevity. Compact dimensions with a depth of 5.8mm and length of 12.8mm make it ideal for space-constrained installations.
This micro switch finds application in household appliances, office equipment, audio devices, and communication systems where accurate, reliable switching is essential. It is RoHS compliant and manufactured in Japan, affirming high quality standards.
Set contains 1 Pc Omron D2F-01FL-D hinge lever micro switch with solder terminal. Operates at 100mA current rating with SPDT contact configuration. Contact voltage of 125 V AC and 30 V DC for versatile use. Features a hinge lever actuator type with solder terminal connection.
Rated IP40 protection for dust resistance. Operating force of 0.25N ensures precise actuation. Wide operating temperature range from -25°C to 65°C. Ultra subminiature microswitch suitable for compact applications. Mechanical life rated at 1,000,000 operations for durability.
Complies with RoHS standards and is made in Japan. Explore more Micro Switches and electrical components on EnvMart to find the ideal parts for your industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a current rating of 100mA.
This model features a Single Pole Double Throw (SPDT) contact configuration.
It supports contact voltages of up to 125 V AC and 30 V DC.
The operating temperature range is from -25°C to 65°C.
It has a mechanical life rated at 1,000,000 operations.
It features a hinge lever actuator type.
The switch has a depth of 5.8mm and a length of 12.8mm.
It is rated IP40, providing protection against dust ingress.
Yes, it complies with RoHS standards.
It features a solder terminal connection.
The operating force required is 0.25N.
It is suitable for use in household appliances, office equipment, audio devices, and communication systems.
