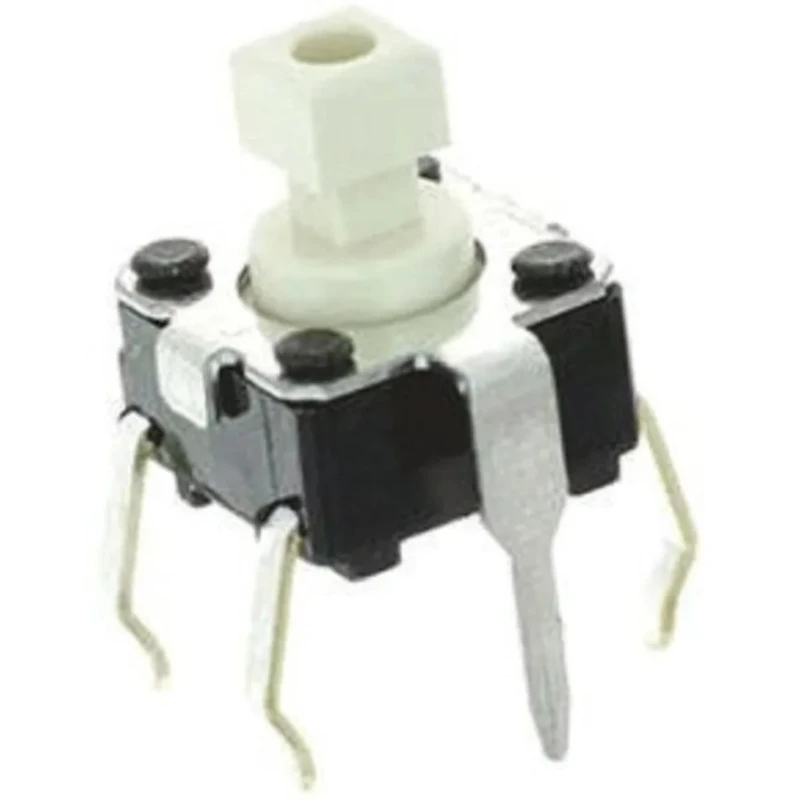

Omron Tactile Switch Plunger 3.9 mm SPST 50mA 24 V dc Through Hole B3F-1056
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 7.3mm |
| Length | 6mm |
| Model | B3F-1056 |
| IP Rating | IP00 |
| Width | 6mm |
| Mount Type | Through Hole |
| Series | B3F |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Actuator Length | 3.9mm |
| Contact DC Voltage | 24V dc |
| Actuator Style | Plunger |
| Switch Contact Current | 50mA |
| Operating Force | 4.9N |
| Mechanical Life | 50000Operations |
Key Features
- Compact 6 mm x 6 mm size ideal for compact applications.
- Plunger actuator providing positive click action and reliable tactile feedback.
- Operating temperature range from -25°C to 70°C for versatile environments.
- Mechanical life of up to 50,000 operations ensuring long-lasting durability.
- IP00 rated for internal use without water or dust protection.
- Solder terminal type suitable for through-hole PCB mounting.
- Not illuminated, intended for standard on/off switching.
- Operating force of 4.9 Newtons for tactile clarity.
Product Description
Omron B3F-1056 tactile switch plunger is a compact, reliable SPST switch designed for use in industrial and electronic applications including audio, office, communication equipment, and measuring instruments. Featuring a 3.9 mm plunger actuator and dimensions of 6 mm length, 6 mm width, and 7.3 mm height, it suits PCB through-hole mounting requiring solder connections.
The switch carries a contact rating of 50mA at 24 V dc, capable of precise low-current control in compact circuitry. Its operating force is 4.9 N, providing a crisp tactile feedback for user interfaces. Designed to operate in a temperature range of -25°C to 70°C, it withstands typical environmental conditions for electronics.
It has a robust mechanical life rated at 50,000 operations, ensuring extended reliability in various industrial and laboratory environments. The IP00 ingress protection indicates it is intended for dry, protected environments without dust or liquid intrusion risk.
This tactile switch meets RoHS compliance requirements, promoting environmental safety. Manufactured in Japan, it reflects high production standards and quality control. Compact 6 x 6 mm size ideal for space-constrained applications.
Plunger actuator style delivers positive mechanical feedback. SPST contact configuration for simple on/off switching. Solder through-hole terminals ensure secure PCB mounting. Operating force of 4.9N offers clear actuation feel.
Temperature range suitable for diverse operating conditions. 50,000 mechanical cycles for lastingdurability. Non-illuminated, suitable for standard switch functions. RoHS compliant for environmental responsibility. Manufactured in Japan with quality assurance.
This tactile switch is ideal for industrial automation, electronics manufacturing, office equipment, and communication device applications requiring reliable low-voltage switching functions. Browse more Omron Tactile Switches and electronic components at EnvMart for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has dimensions of 6 mm in length, 6 mm in width, and 7.3 mm in height.
The switch has a contact rating of 50 mA at 24 V dc, suitable for low-current control.
It has an operating force of 4.9 Newtons, providing a clear tactile feedback during operation.
The mechanical life is rated at up to 50,000 operations, ensuring extended reliability.
It operates effectively in a temperature range from -25°C to 70°C, accommodating various environmental conditions.
This model supports through-hole mounting with solder terminals, suitable for PCB applications.
The switch features a plunger actuator style, which delivers positive mechanical feedback.
No, this tactile switch is not illuminated and is intended for standard on/off switching functions.
The B3F-1056 has an IP00 rating, indicating it is intended for internal use without water or dust protection.
It meets RoHS compliance requirements, promoting environmental safety.
This tactile switch is manufactured in Japan, reflecting high production standards.
It is ideal for use in industrial automation, electronics manufacturing, office equipment, and communication devices requiring reliable low-voltage switching functions.
