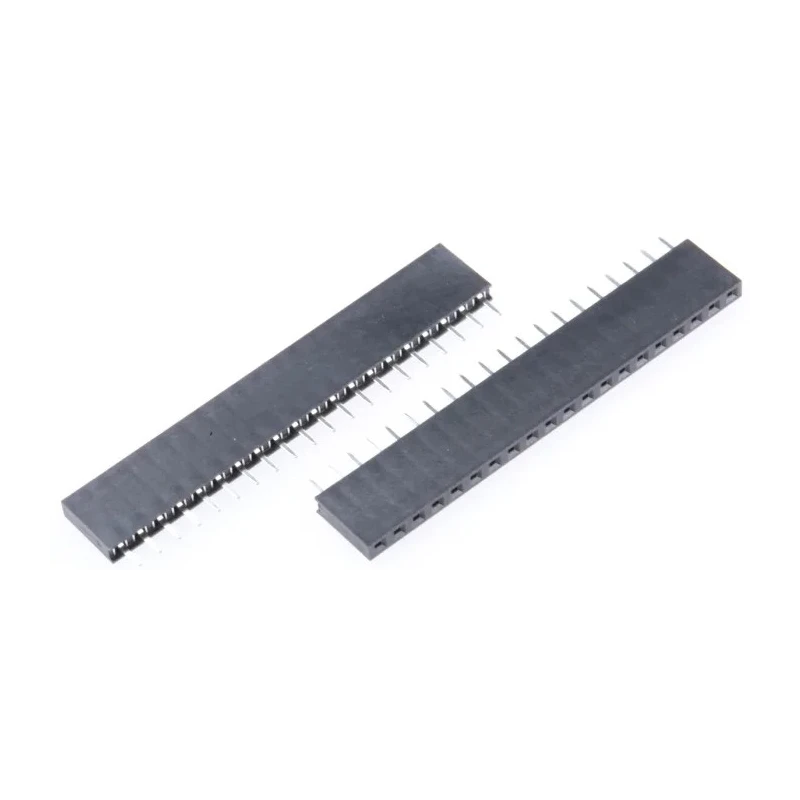

HARWIN PCB Socket 20-Contact, 1 Row, 2.54 mm Pitch Through Hole Solder Nylon Housing M20-7822046
Specifications
| Country of Origin | China |
|---|---|
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M20-7822046 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze |
| Series | M20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Compact design with a 2.54 mm pitch suitable for increased PCB density.
- Housing made of heat-resistant nylon (UL94V-0) ensuring durability under reflow soldering.
- High current rating of 12A per contact with reliable tin over nickel plating on bronze contacts.
- Designed for up to 300 mating cycles with highly durable dual beam contacts.
- Operating temperature range from -55°C to 105°C suitable for harsh industrial environments.
- Solder termination type optimized for through-hole mounting applications.
- Suitable for consumer electronics, communication devices, industrial monitoring, and embedded systems.
- Meets RoHS standards for environmental compliance.
Product Description
The HARWIN M20-7822046 PCB Socket is a precision engineered through hole socket featuring 20 contacts arranged in a single row with a 2.54 mm pitch. Manufactured with durable nylon housing conforming to UL94V-0 standard, this socket maintains high reliability during soldering and operational use.
Its bronze female contacts plated with tin over nickel provide excellent electrical conductivity, supporting currents up to 12A per contact withstanding up to 300 mating cycles. The socket is designed to operate efficiently within temperatures ranging from -55°C to 105°C, making it suitable for a range of industrial and commercial electronics applications.
This board-to-board connector serves critical applications in consumer electronics, communication devices, embedded PCs, and industrial monitoring systems, addressing high-density PCB layout requirements and demanding operational environments. The through hole mounting ensures sturdy mechanical and electrical connections on printed circuit boards.
Its compact footprint and straight orientation support optimized PCB layouts and integration ease. The socket complies with RoHS directives ensuring lead-free, environmentally safe production.
Compact design with 2.54 mm pitch ensures high PCB density integration. Nylon housing withstands reflow soldering temperatures and offers mechanical robustness. Bronze contacts with tin over nickel plating guarantee excellent electrical performance.
High current rating of 12A per contact supports demanding electrical loads. Durable dual beam contacts offer reliable connections over 300 mating cycles. Operating temperature range from -55°C to 105°C suits industrial environments.
Through hole solder termination for secure PCB mounting. Compliant with RoHS standards for environmental safety.
This HARWIN PCB Socket is ideal for industrial, commercial, manufacturing, and electronics assembly use cases. It enables durable connections in embedded systems, motherboards, communication equipment, and control devices.
Explore EnvMart’s comprehensive range of PCB connectors, sockets, and electronic components for professional electronics design and manufacturing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a high current rating of 12A per contact, making it suitable for demanding electrical loads.
The contacts in this socket are arranged with a pitch of 2.54 mm, allowing for high-density PCB integration.
The housing is made of nylon, and the contacts are bronze plated with tin over nickel, ensuring good electrical conductivity.
It operates efficiently within a temperature range of -55°C to 105°C, suitable for harsh industrial environments.
This socket features 20 contacts arranged in a single row, designed for board-to-board connections.
It utilizes a solder termination type optimized for through-hole mounting applications on printed circuit boards.
The socket is designed for up to 300 mating cycles, providing reliable connections over time.
Yes, it meets RoHS standards for environmental compliance, ensuring lead-free and environmentally safe production.
The orientation of this model is straight, which supports optimized PCB layouts and integration ease.
This socket is designed for through-hole mounting, ensuring sturdy mechanical and electrical connections.
It is suitable for various applications including consumer electronics, communication devices, industrial monitoring, and embedded systems.
The connector system for this model is board-to-board, facilitating reliable connections between PCBs.
