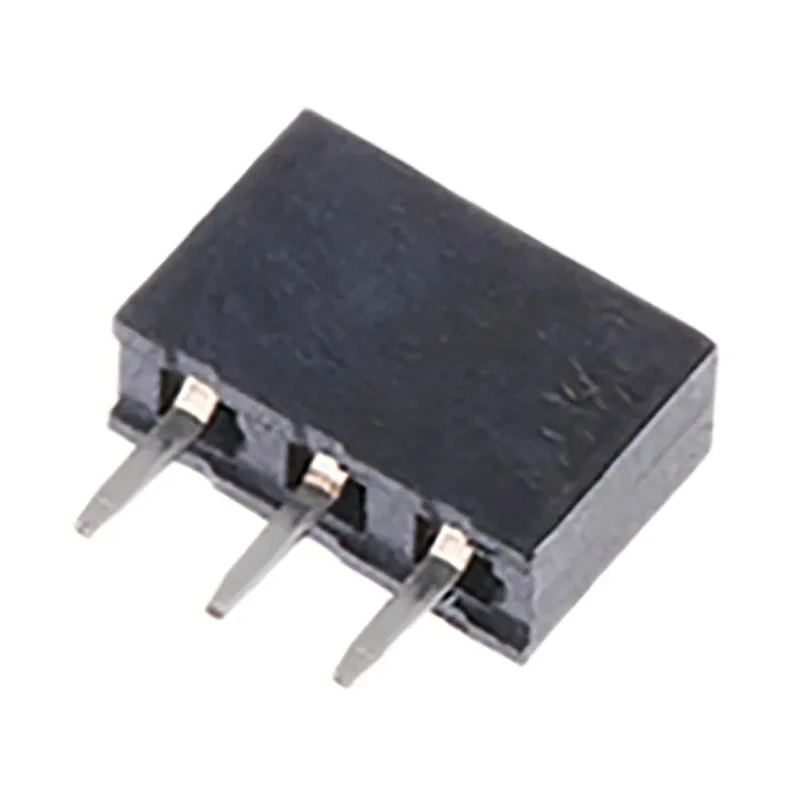

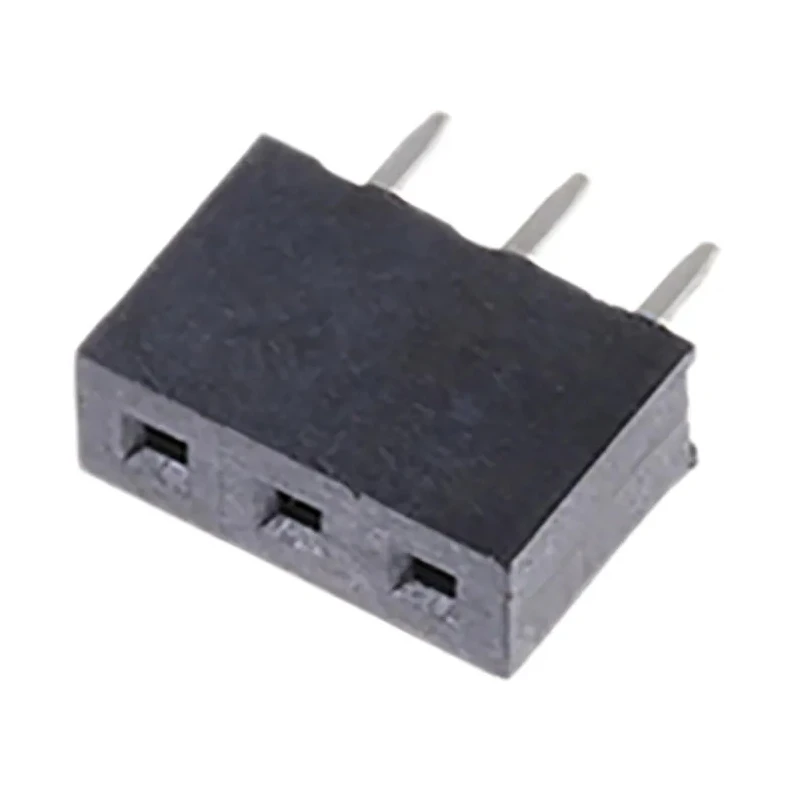

HARWIN M22 Series Straight Through Hole PCB Socket, 3-Contact, 1 Row, 2 mm Pitch, 12A, 500V M22-7130342

HARWIN M22-7130342 is a high-quality 3-contact, 1-row Straight Through Hole PCB Socket with a fine 2 mm pitch designed for board-to-board applications. This connector supports a maximum current of 12A and operates up to 500V, making it ideal for various electronic systems where reliability and compactness are essential.

The housing material is a UL94V-0 rated Liquid Crystal Polymer, ensuring high-temperature resistance suitable for reflow soldering processes. Its robust construction withstands operating temperatures from -25°C to 105°C, supporting demanding industrial and consumer electronics environments.

Contacts are made of bronze with a gold plating providing a durable and highly reliable dual beam design. This design improves electrical connectivity and overall connector longevity, rated for up to 300 mating operations.

Mount type is through hole with straight orientation, facilitating easy and secure solder connections on PCB assemblies. The connector system is board-to-board, supporting a wide range of industrial and embedded applications including communications, control drives, and personal computing.

Compact design enables increased PCB density and reduced height. UL94V-0 high temperature Liquid Crystal Polymer housing. Gold plated bronze dual beam contacts for enhanced performance. Up to 300 mating cycles for reliable repeated connections.

Rated current of 12A and voltage of 500V for robust electronic applications. Operating temperature range from -25°C to 105°C. Through hole solder mounting with straight contact orientation.

This M22 series PCB socket from HARWIN is an industry standard connector that meets design requirements for compactness, durability, and reliable electrical performance in high-density PCB applications.
