| Country of Origin | Taiwan |
|---|---|
| Brand | HARWIN |
| Current | 3A |
| Model | M20-1180046 |
| Gender | Female |
| Contact Material | Brass |
| Series | M20 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| For Use With | M20 Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 20mΩ |
| HARWIN M20 Series Female Crimp TerminalBrand | HARWIN |

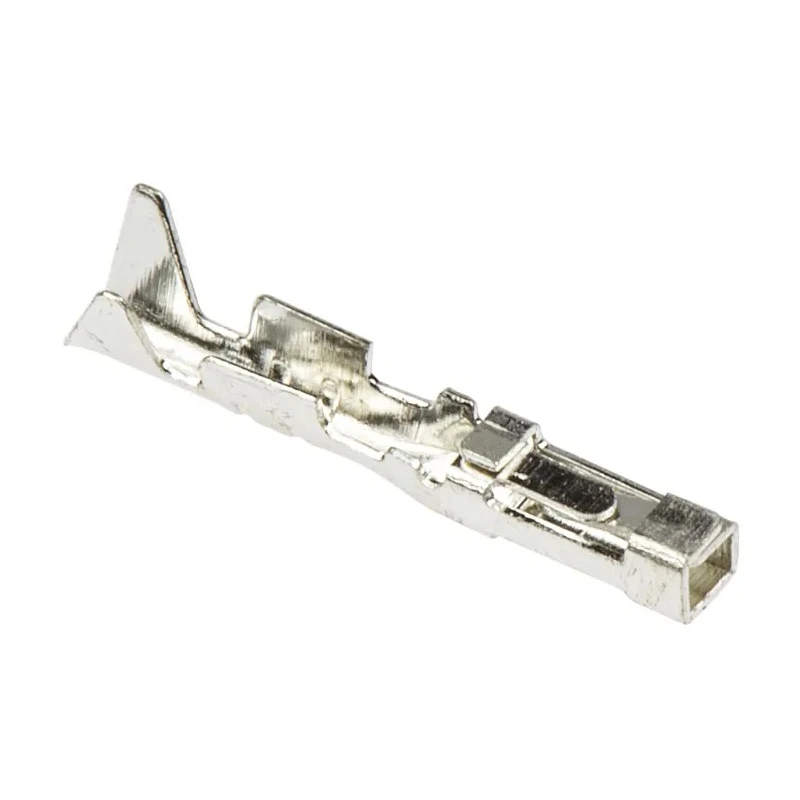

HARWIN M20-1180046 Female Crimp Terminal is engineered specifically for use with M20 series connector housings, accommodating wire sizes ranging from 30 AWG to 22 AWG. This crimp contact terminal is made from high-quality brass with tin plating on the contact area that provides reliable electrical conductivity and resistance to corrosion.
The terminal supports a current capacity of 3A, making it ideal for low voltage electronic applications in industrial, laboratory, and commercial electrical assemblies. It features a crimp termination for secure and efficient wire attachment and maintains a maximum contact resistance of 20 milliohms, ensuring minimal power loss.
Designed to endure operating temperatures from -25°C to 85°C, it is suitable for varied environmental conditions encountered in field or factory settings. The female contact gender facilitates versatile connection options within M20 series wiring and cabling systems.
The dual beam design of the M20 series crimp terminals enhances retention and connection reliability, supporting repeatable use and robust mechanical stability in industrial and manufacturing environments.
These crimp terminals are manufactured in Taiwan with adherence to high-quality standards. For optimal crimping, compatible crimp tools should be used as recommended by HARWIN. Suitable for use in electronics manufacturing, power connectors, and PCB wiring harnesses, this product improves production efficiency and reliability.
Constructed from brass with tin plating for conductivity and corrosion resistance. Current rating of 3 amps for effective power transfer. Crimp termination method ensures secure wire retention. Wide operating temperature range from -25°C to 85°C.
Compatible with M20 series connector housings. Maximum contact resistance is 20 milliohms for low electrical loss. Female gender contact enhances flexibility in wiring applications. Manufactured to meet industry durability and performance standards.
Explore more HARWIN connectors and terminals in the Electronics Components category at EnvMart for enhanced electrical assembly solutions.
Explore more products in our Crimp Contacts category.
