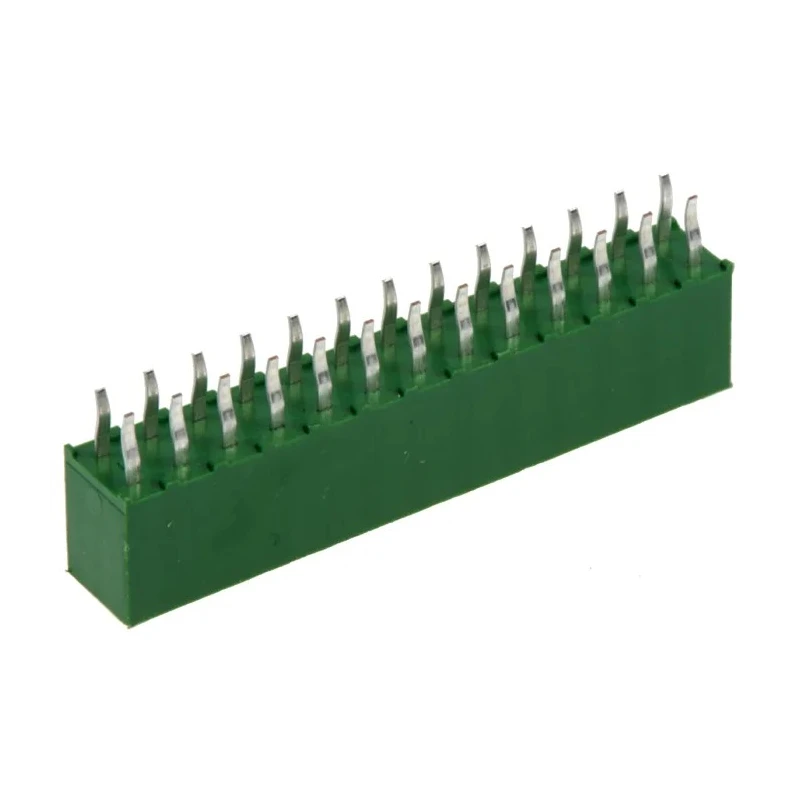

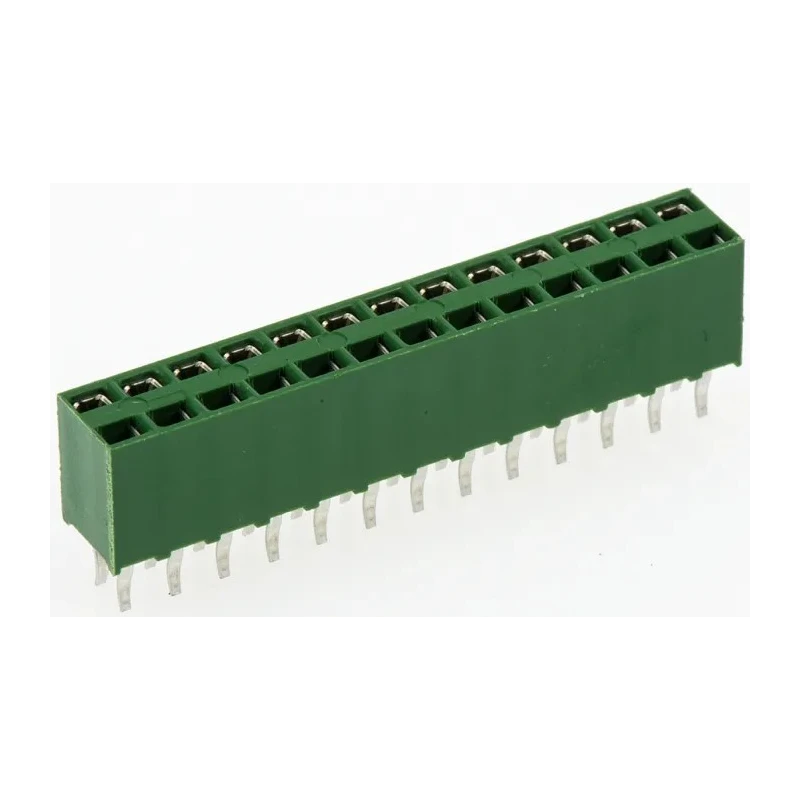

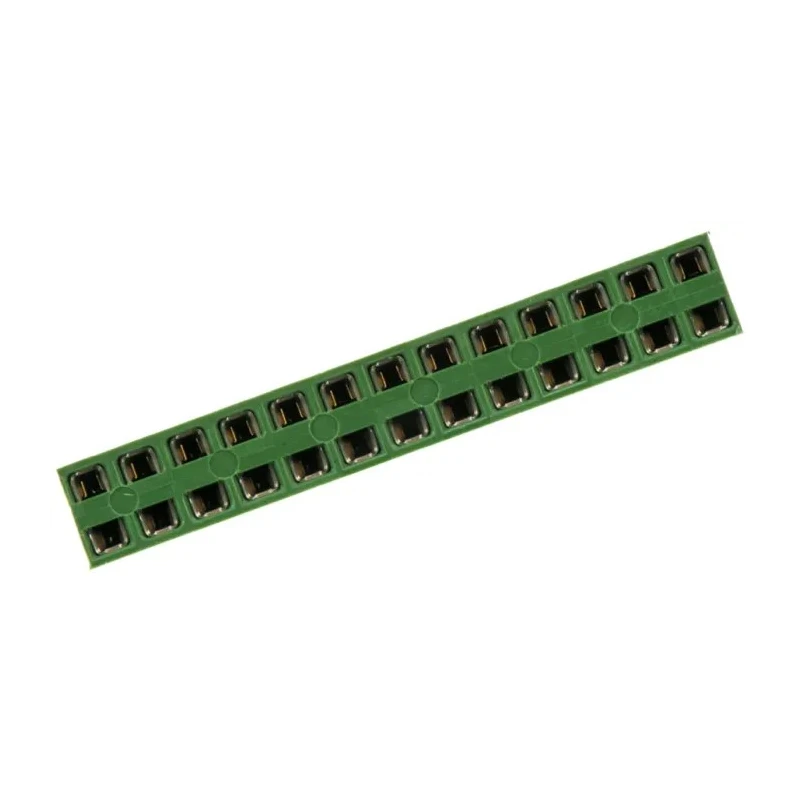

TE Connectivity AMPMODU HV100 Series 26-Contact 2-Row Straight Through Hole PCB Socket, 2.54 mm Pitch
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 12A |
| Model | HV100 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Bronze |
| Series | AMPMODU HV100 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Featuring 26 female contacts across two rows for secure connection.
- Constructed from UL 94V-0 flame retardant polybutylene terephthalate housing.
- Kinked solder legs provide firm and lasting PCB retention.
- Supports 12A current capacity with bronze contacts plated in tin.
- Designed for through-hole mounting with a straight orientation.
- Operating temperature range from -55°C to 105°C ensures durability.
- Available in stacking heights of 7 mm and 8.5 mm for versatile assembly.
- Ideal for industrial electronic equipment and board stacking applications.
Product Description
This PCB socket has a 2.54 mm pitch with female bronze contacts plated in tin, making it suitable for up to 12 amperes current load.
The connector housing is made of flame retardant polybutylene terephthalate (UL 94V-0 rated), offering excellent thermal resistance and safety. The solder termination features kinked legs that ensure secure and stable mounting onto printed circuit boards through through-hole technology.
Designed with two rows and 26 contacts, this socket fits stacking applications with mounting heights of 7 mm and 8.5 mm available in the HV100 series, facilitating compact yet reliable board assemblies.
Operating temperature ranges from -55°C to 105°C, suitable for harsh industrial and manufacturing environments including electronics assembly, automation equipment, and power distribution systems.
Featuring 26 female contacts across two rows for secure connection. Constructed from UL 94V-0 flame retardant polybutylene terephthalate housing. Kinked solder legs provide firm and lasting PCB retention. Supports 12A current capacity with bronze contacts plated in tin.
Designed for through-hole mounting with a straight orientation. Operating temperature range from -55°C to 105°C ensures durability. Available in stacking heights of 7 mm and 8.5 mm for versatile assembly. Ideal for industrial electronic equipment and board stacking applications.
This TE Connectivity AMPMODU HV100 Series PCB Socket is a dependable component for use in industrial electronics, manufacturing lines, automation systems, and other technical applications requiring durable PCB connectivity. Opt for this model to ensure high-quality electrical connections with effective thermal and mechanical stability.
Explore more electronics components and PCB connectors in the EnvMart catalogue for your industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket supports a current capacity of 12A, making it suitable for various industrial applications.
The contacts in this model have a pitch of 2.54 mm, which is standard for many PCB applications.
The housing is made from polybutylene terephthalate, which is UL 94V-0 flame retardant, while the contacts are made of bronze plated in tin.
The operating temperature range for this socket is from -55°C to 105°C, allowing it to function in harsh environments.
This PCB socket features 26 female contacts arranged in two rows, providing secure connectivity.
This model is designed for through-hole mounting, ensuring stable attachment to printed circuit boards.
The socket is available in stacking heights of 7 mm and 8.5 mm, allowing for versatile assembly options.
This socket uses a solder termination type, which provides a reliable connection to the PCB.
The contacts in this PCB socket are oriented straight, facilitating easy installation.
Yes, this model is designed as a board-to-board connector, making it suitable for stacking applications.
The country of origin for this PCB socket is India, indicating its manufacturing location.
This PCB socket is part of the AMPMODU HV100 series, which is known for its reliable performance in electronic applications.
