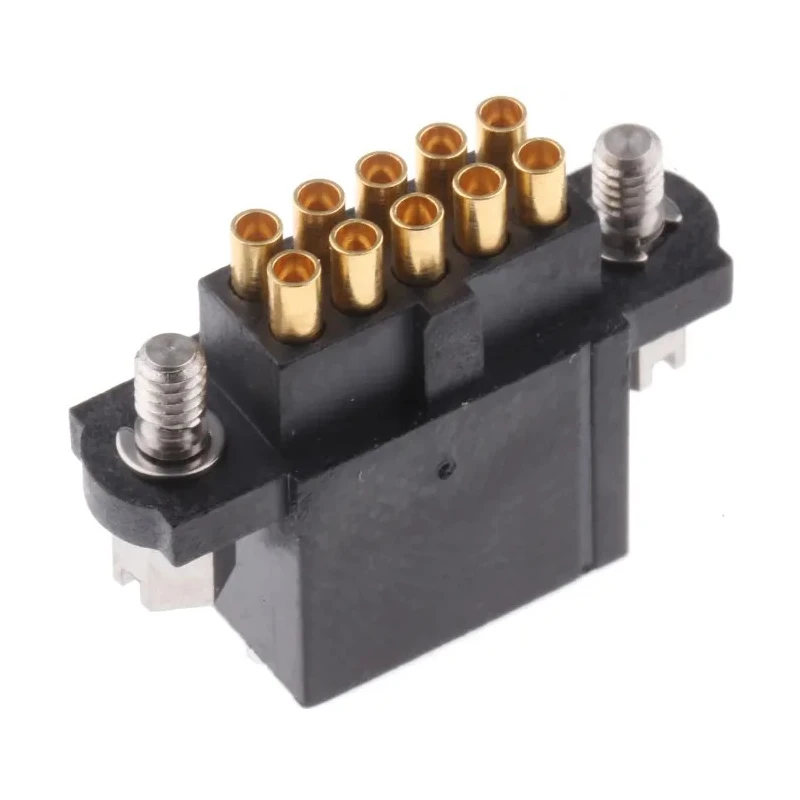

HARWIN Datamate J-Tek Series Straight Panel PCB Socket, 10-Contact, 2 Row, 2 mm Pitch, Crimp Termination M80-4661005

Free Delivery in India | Lowest Global Shipping Charges

HARWIN Datamate J-Tek Series Straight Panel PCB Socket, 10-Contact, 2 Row, 2 mm Pitch, Crimp Termination M80-4661005

Name: HARWIN Datamate J-Tek Series Straight Panel PCB Socket, 10-Contact, 2 Row, 2 mm Pitch, Crimp Termination M80-4661005
Brand: HARWIN
SKU: 210284
Price: 10.96 USD
Availability: InStock



Category PCB Socket Brand HARWIN Condition New

Specifications

Country of Origin	United Kingdom
Voltage	120V
Brand	HARWIN
Orientation	Straight
Current	12A
Model	M80-4661005
Mount Type	Panel
Housing Material	Polyphenylene Sulphide
Contact Material	Beryllium Copper Alloy
Series	Datamate J-Tek
Termination Type	Crimp
Maximum Operating Temperature	125°C
Sub Type	Datamate
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Female
Connector System	Board-to-Board

Key Features

Compact 2 mm pitch design suitable for high-reliability applications.
Features female contacts with gold-plated beryllium copper alloy for durability.
Housing made of polyphenylene sulphide ensures robust panel mounting.
Operates effectively within temperature range -55°C to 125°C.
Supports current rating up to 12A and voltage of 120V.
Polarised moulding prevents mis-mating and enhances connection safety.
Equipped with panel mount type and straight orientation for easy installation.
Ideal for aerospace, military, telecommunications, medical, industrial, and robotics applications.

Product Description

HARWIN M80-4661005 Datamate J-Tek Series Straight Panel PCB Socket is a high-reliability connector designed for industrial and military applications. This 10-contact, 2-row socket with a 2 mm pitch features a robust polyphenylene sulphide housing and gold-plated beryllium copper female contacts that sustain high vibration and shock while maintaining excellent electrical integrity.

The connector operates over a wide temperature range from -55°C to 125°C and supports currents up to 12A with a nominal 120V voltage rating. Its polarized design with panel mount type and straight orientation ensures safety and ease of installation on electronic boards. The housing is fully shrouded to protect contacts and incorporates jackscrews for secure attachment.

Each connector kit consists of the housing with fitted jackscrews and loose crimp contacts that are rear insertable, allowing for flexible assembly. The crimp contacts' 4-finger design guarantees reliable connectivity even under severe environmental conditions.

Applications include aerospace, aeronautics, military, data and telecommunications, medical devices, handheld and industrial equipment, robotics, and oil and gas industries that require durable and high-performance connectors.

Compact 2 mm pitch design suitable for high-reliability applications. Gold-plated beryllium copper alloy female contacts for enhanced conductivity and durability. Polyphenylene sulphide housing ensures resistance to mechanical and thermal stress.

Operating temperature range from -55°C to 125°C supports harsh environments. Current rating of 12A and voltage rating of 120V. Polarized and fully shrouded housing to prevent mis-mating and protect contacts. Panel mount type with straight orientation for reliable installation.

Includes housing with jackscrews and rear insertable crimp contacts. Designed for critical applications in aerospace, military, and industrial sectors. Explore more PCB Sockets by HARWIN and browse other high-quality connectors and electronics components at EnvMart.
