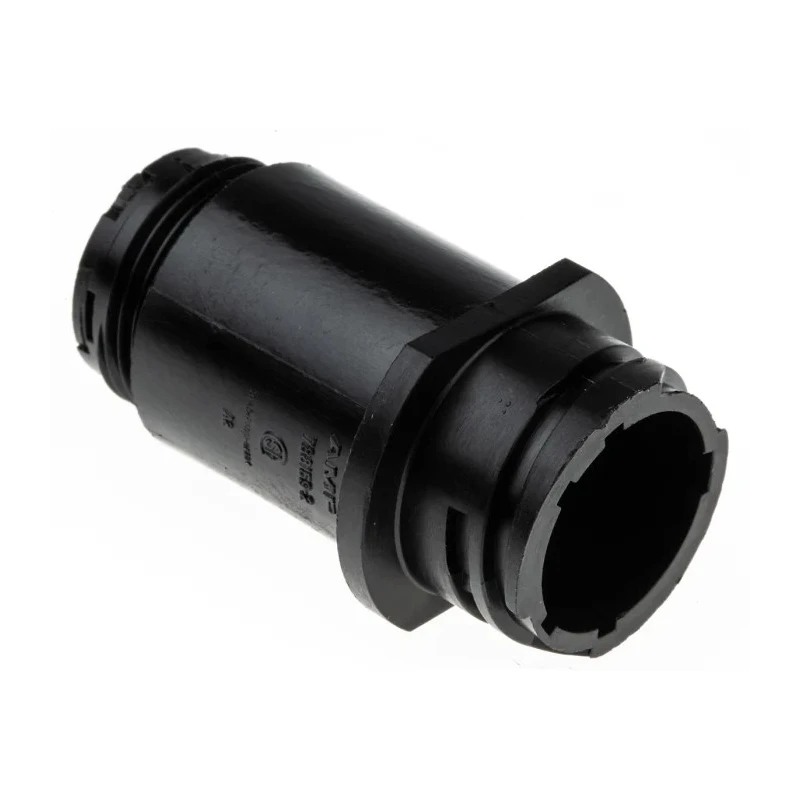

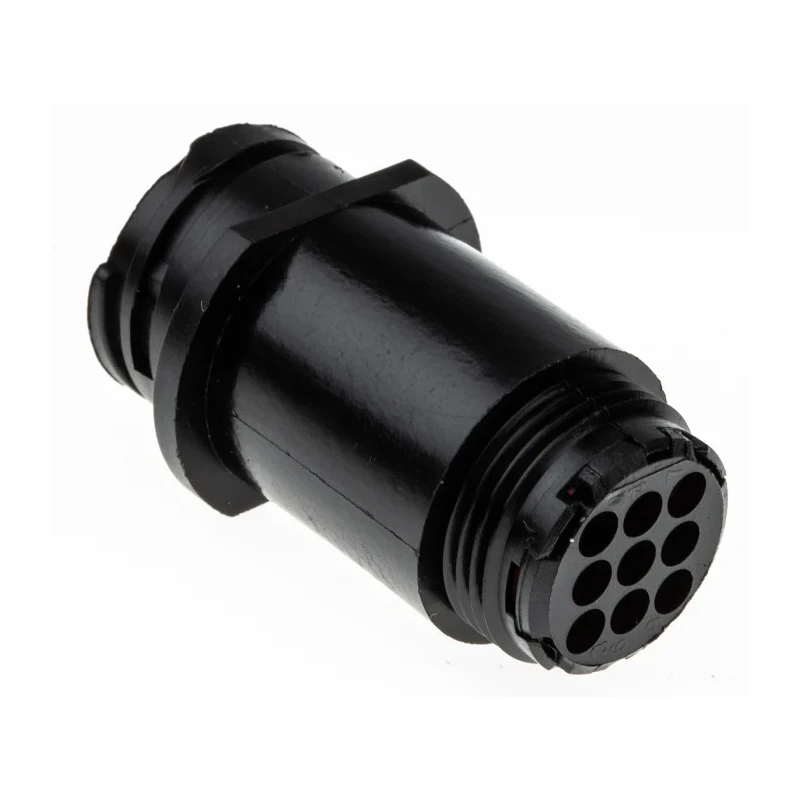

TE Connectivity Circular Connector 9 Contacts Cable Standard Plug Male CPC Series 788159-2

TE Connectivity 788159-2 is a circular connector featuring 9 contacts designed for cable mounting applications in industrial environments. This standard connector is a plug type with male contacts, belonging to the CPC series known for its robust one-piece sealed plastic design.

The housing is made from UL 94V-0 rated black nylon thermoplastic, providing excellent mechanical durability and electrical insulation. A bonded peripheral seal made from grey elastomer ensures environmental sealing and protection against dust and moisture intrusion, enhancing reliability in demanding conditions.

This connector supports a voltage rating of up to 600 V and can operate within a temperature range from -50°C minimum to 125°C maximum, suitable for a wide range of industrial and electronic applications including power and signal transmission.

The keyed mating type and coding A provide foolproof connection orientation, ensuring proper engagement with corresponding parts. The plug features straight orientation and crimp termination for secure and reliable wire attachment.

Assembly and maintenance efficiency is boosted by the one-piece sealed construction, making it ideal for integration into machinery and equipment requiring durable circular connectors. The part is compatible with series 1 CPC connectors, including square flange receptacles and free-hanging receptacles.

Features 9 contacts for secure electrical connection. Cable mount type with standard size plug ensures compatibility. Male contact gender with keyed mating type for orientation assurance. Durable nylon housing material rated UL 94V-0.

Operating temperature range from -50°C to 125°C. Voltage rating up to 600 V. Straight orientation and crimp termination. Shell size 13 with A type coding. Series 1 CPC standard connector.

This product is used extensively in industrial, electronic components, power distribution, and control systems requiring reliable circular connectors. Environmentally sealed design makes it suitable for harsh and outdoor settings. Browse EnvMart's full range of Industrial Circular Connectors and TE Connectivity products for comprehensive solutions.
