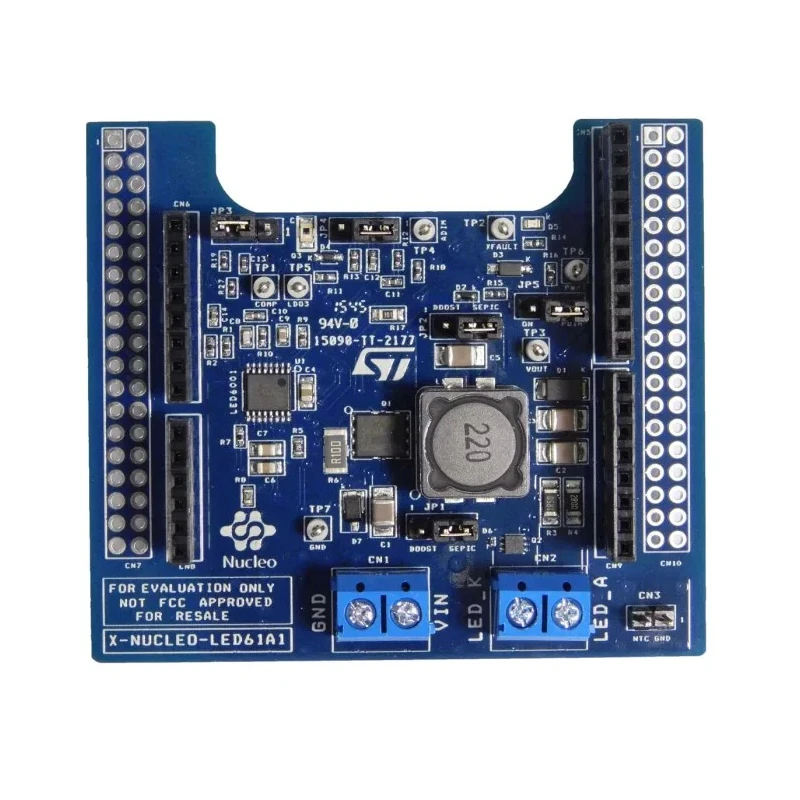

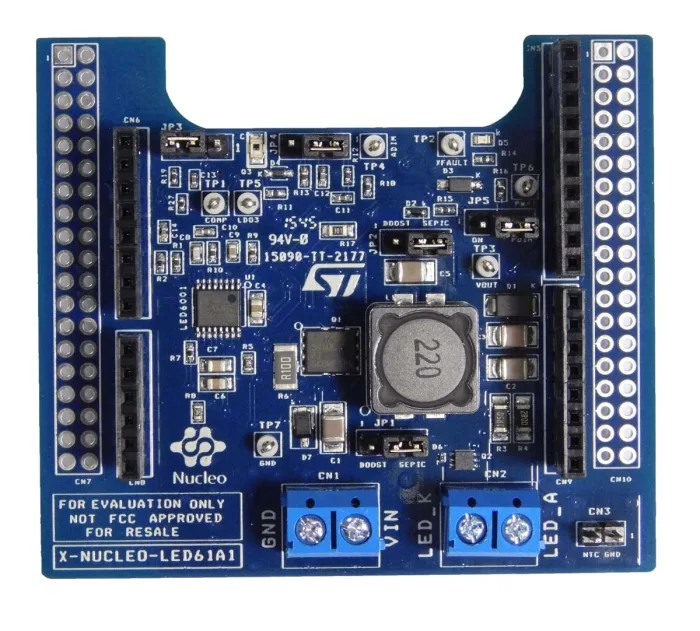

STMicroelectronics LED Driver Expansion Board for LED6001 STM32 Nucleo Compatible X-NUCLEO-LED61A1
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Model | X-NUCLEO-LED61A1 |
| For Use With | STM32 Nucleo |
| Standards/Approvals | RoHS |
| Kit Classification | Expansion Board |
| Featured Device | LED6001 |
| Kit Name | LED Driver |
Key Features
- Operates on DC input voltage range from 8 to 24V.
- Features a 350mA constant-current single-channel driver delivering efficient LED driving.
- Supports selectable boost or SEPIC converter topology for versatile applications.
- Up to 92% efficiency achieved in boost converter mode to optimize power usage.
- Includes analog voltage and digital PWM brightness control options.
- Equipped with an onboard phototransistor for ambient light sensing and switch function.
- Provides open LED, feedback disconnection, and LED over-current fault detection for safety.
- Offers output-to-ground short-circuit fault detection available for SEPIC topology.
Product Description
The STMicroelectronics X-NUCLEO-LED61A1 is an advanced LED driver expansion board designed for LED6001 device use, compatible with STM32 Nucleo development boards. It facilitates efficient LED driving in various industrial and development applications by offering a constant-current output of 350mA across a DC input voltage range of 8 to 24 volts.
This expansion board supports selectable boost or SEPIC converter topologies, enabling it to adapt to different power conversion requirements, while achieving up to 92% efficiency in boost mode. Users can control LED brightness via analogue voltage or digital PWM signals, providing flexible dimming capabilities.
The board incorporates an onboard phototransistor functionality which enables ambient light sensing to provide automatic switching, enhancing energy savings and operational convenience. Safety is enhanced with comprehensive fault detection features including open LED monitoring, feedback disconnection detection, LED over-current fault protection, and output-to-ground short-circuit fault detection specific to SEPIC mode.
Designed with developer usability in mind, the X-NUCLEO-LED61A1 is fully compatible with Arduino Uno R3 shield standard and supports integration with STM32 Nucleo-64 and Nucleo-144 MCU boards, making it ideal for embedded systems, lighting control prototypes, and LED driver evaluations.
Industrial applications include use in embedded lighting systems, electronic prototyping, development kits for advanced LED control, STEM education platforms, and ambient light-responsive lighting solutions.
Operates on DC input voltage range from 8 to 24V. 350mA constant-current single-channel driver provides stable LED current. Selectable boost or SEPIC converter topology for varied power designs. High efficiency up to 92% conserves energy during operation.
Analogue and digital brightness control options. Ambient light sensing via onboard phototransistor. Comprehensive fault detection including open LED and over-current protection. Arduino Uno R3 shield compatible for easy expansion.
Compatible with STM32 Nucleo-64 and -144 MCU boards. Explore more LED Driver Evaluation Kits and development tools at EnvMart to enhance your electronic component solutions.
