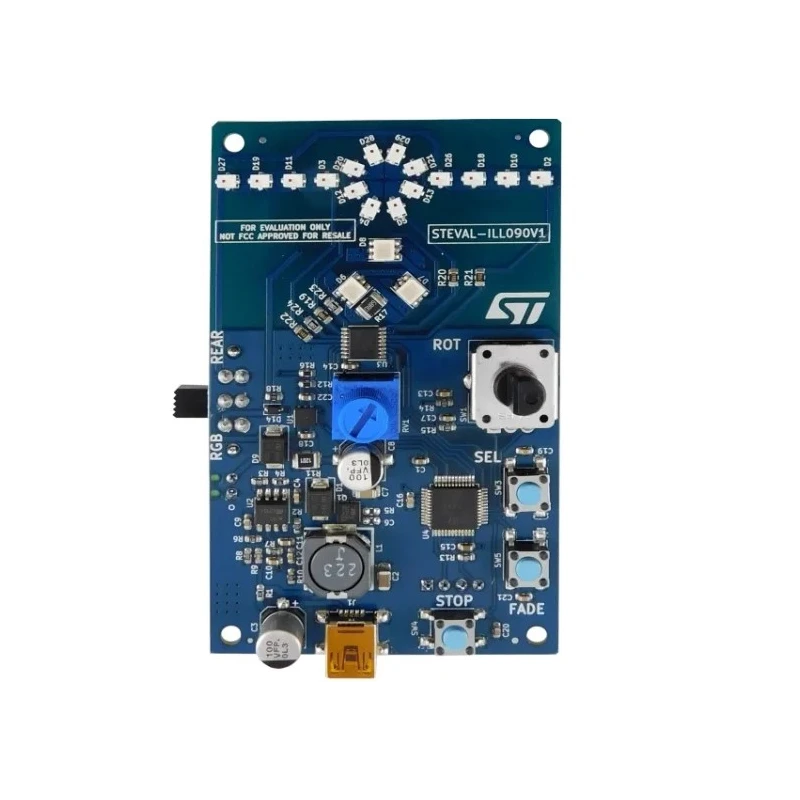

STMicroelectronics LED Driver Evaluation Kit STEVAL-ILL090V1 with STM8 MCU Direct Switch Control STEVAL-ILL090V1

The STMicroelectronics STEVAL-ILL090V1 LED Driver Evaluation Kit STEVAL-ILL090V1 is designed for direct control applications using the STM8 MCU platform. Featuring the ALED8102SXTTR LED driver, this board facilitates the development and testing of automotive lighting scenarios.

The board offers dual operation modes: an ambient light mode utilizing three RGB LEDs with customizable brightness and color, and a motorcycle rear light mode with dual orange LED arrow indicators and a central red LED to simulate position or stop lights. Control is achieved via an intuitive selector switch (SEL) and a rotary switch (SW1), allowing fast and seamless changes of light intensity and channel selection.

Power can be supplied through a USB mini connector or via a dedicated 12 V power input (J2), providing flexibility for various test environments. The board's design complies with important environmental standards including RoHS, China RoHS, and WEEE directives.

This evaluation kit is ideal for developers and engineers working on automotive lighting systems, embedded MCU applications, and LED driver interface designs in industrial, automotive, and commercial development environments.

This evaluation board uses the ALED8102SXTTR LED driver controlled via an STM8 MCU. Powered through USB mini connector or 12 V supply for flexible operation. Two selectable automotive lighting scenarios are implemented via a toggle switch.

Ambient light scenario features three RGB LEDs with configurable brightness and color. Motorcycle rear light simulation with arrow light orange LED strips and a red LED position/stop light. Rotary and selector switches allow intuitive control of light intensity and color channels.

RoHS, China RoHS, and WEEE compliant ensuring environmental and safety standards. Explore more high-quality electronics components and development kits at EnvMart to support your projects and innovations.
