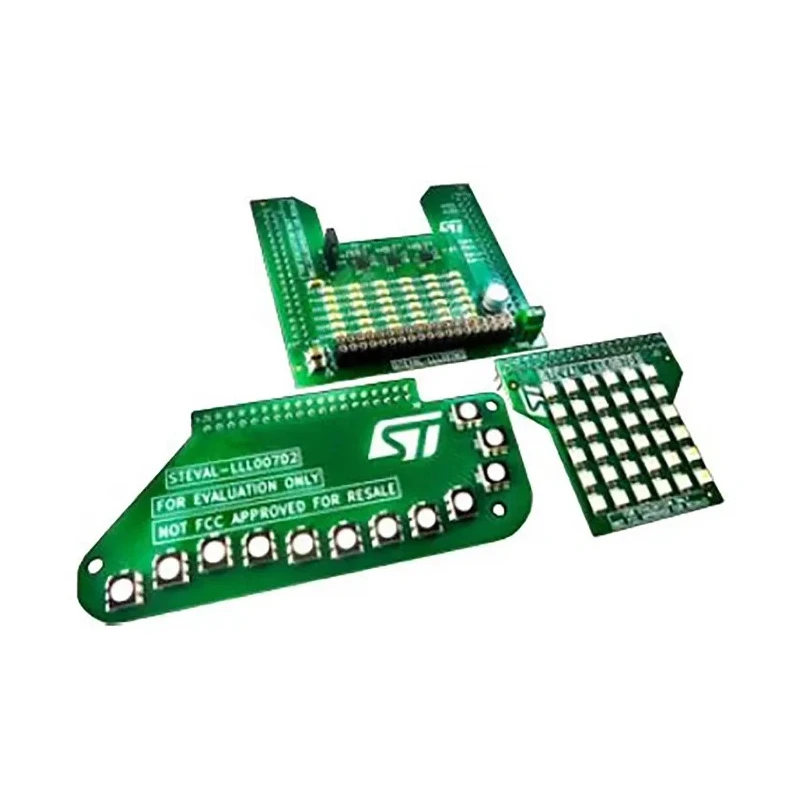

STMicroelectronics LED Driver Evaluation Kit STEVAL-LLL007V1 for LED1202, RoHS, Evaluation Kit Italy STEVAL-LLL007V1
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-LLL007V1 |
| For Use With | LED Driver |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Kit |
| Featured Device | LED1202 |
| Kit Name | STEVAL |
| LED Technology | LED Driver |
Key Features
- The kit includes the STEVAL-LLL007M1 main board along with STEVAL-LLL007D1 and STEVAL-LLL007D2 panel boards.
- Supports connection to NUCLEO-L073RZ with STSW-LLL007FW firmware for standalone operation with random and wave LED patterns.
- Allows development of custom LED pattern sequences via PC GUI interface with full access to LED driver settings.
- Requires external power supply for panel boards through J13 connector on the main board to achieve full luminosity.
- Designed for use in LED driver evaluation, prototyping, and testing applications.
Product Description

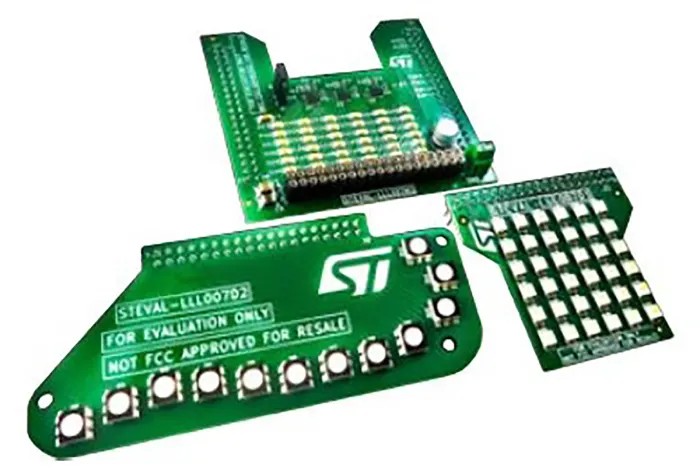

STMicroelectronics STEVAL-LLL007V1 LED Driver Evaluation Kit is designed for versatile evaluation and development with the LED1202 driver. This kit comprises the STEVAL-LLL007M1 main board paired with two panel boards, STEVAL-LLL007D1 and STEVAL-LLL007D2, enabling users to explore and test all features of the LED1202 device.
The main board interfaces with the NUCLEO-L073RZ development platform running the STSW-LLL007FW firmware. This firmware includes pre-configured random and wave LED illumination patterns suitable for standalone operation, facilitating quick setup and testing.
Developers can create custom LED pattern sequences by connecting the NUCLEO platform to a PC with a dedicated graphical user interface (GUI). This enables full access and control over every LED driver parameter to tailor the lighting behavior as needed.
Both panel boards require an external power source, connected via the J13 connector on the main board, to achieve maximum illumination output, allowing flexible power management and usage scenarios.
This evaluation kit is compliant with RoHS standards and is manufactured in Italy, reflecting high product quality. It is ideally suited for industrial, electronic component development, prototyping, and educational applications in LED driver technology.
The kit includes 1 STEVAL-LLL007M1 main board, 1 STEVAL-LLL007D1 panel board, and 1 STEVAL-LLL007D2 panel board. Compatible with the LED1202 LED driver device for comprehensive evaluation. Firmware and GUI software support enable advanced pattern customization and control.
RoHS compliant, ensuring environmentally safe materials. Manufactured in Italy, ensuring stringent quality controls. EnvMart customers can explore a broad range of LED driver and development kits from STMicroelectronics and other leading brands in the Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The kit includes the STEVAL-LLL007M1 main board, along with two panel boards: STEVAL-LLL007D1 and STEVAL-LLL007D2.
This evaluation kit is designed for LED driver evaluation, prototyping, and testing applications, specifically with the LED1202 driver.
The STEVAL-LLL007V1 is compatible with the STSW-LLL007FW firmware, which allows for standalone operation and control of LED patterns.
Developers can create custom LED pattern sequences by connecting the NUCLEO-L073RZ platform to a PC with a dedicated graphical user interface (GUI).
The panel boards require an external power supply connected via the J13 connector on the main board to achieve full luminosity.
Yes, the evaluation kit is compliant with RoHS standards, ensuring it is made with environmentally safe materials.
The STEVAL-LLL007V1 is manufactured in Italy.
This evaluation kit supports LED driver technology, specifically designed for use with the LED1202 driver.
The kit provides a graphical user interface (GUI) for full access and control over LED driver parameters and pattern customization.
The model number of this evaluation kit is STEVAL-LLL007V1.
This kit is classified as an Evaluation Kit for LED drivers.
The featured device in this evaluation kit is the LED1202 LED driver.
