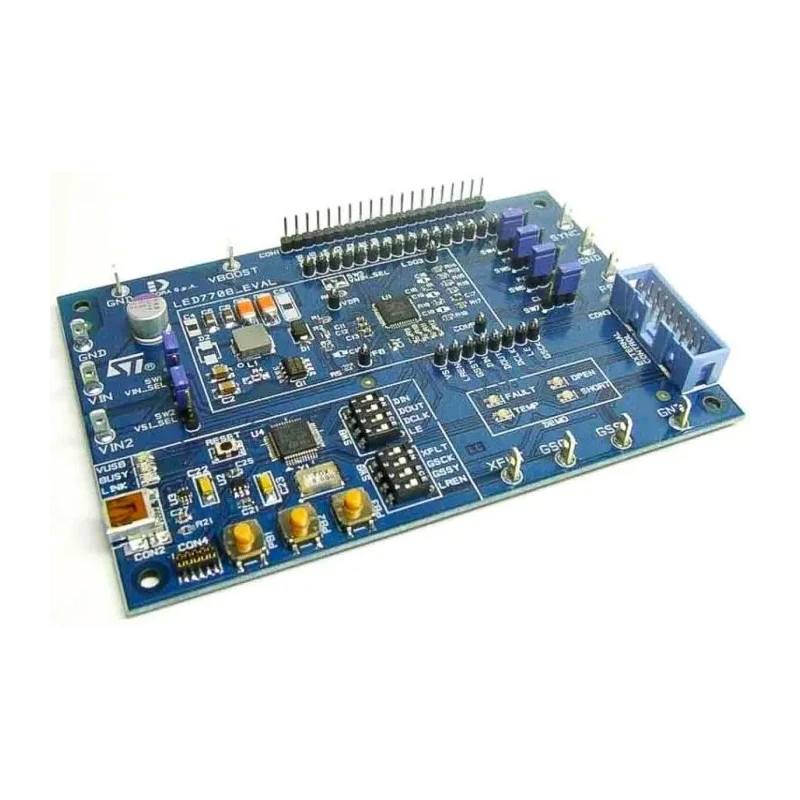

STMicroelectronics Compact LED Driver Demonstration Board with STM32F103C6T6A MCU and LED7708 STEVAL-ILL035V1
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-ILL035V1 |
| For Use With | MCU |
| Standards/Approvals | RoHS |
| Kit Classification | Demonstration Board |
| Featured Device | STM32F103C6T6A, LED7708 |
| Kit Name | STEVAL |
| LED Technology | LED Driver |
Key Features
- The board includes a 16-channel LED driver with integrated boost controller for precise LED string voltage control.
- It offers independent PWM duty cycles for each LED string with 12- or 16-bit dimming resolution.
- Integrated STM32 microcontroller allows easy USB control of the LED driver features.
- Programmable fault detection can automatically disconnect faulty LED channels to protect the system.
- Designed for compact LED backlight applications with low power dissipation and high reliability.
Product Description
The STMicroelectronics STEVAL-ILL035V1 LED Driver Demonstration Board incorporates the LED7708 16-channel LED driver and the STM32F103C6T6A microcontroller to create a compact LED backlight driver solution. Operating from a single input rail, the boost controller dynamically adjusts output voltage to minimize voltage drop and power dissipation across connected LED strings, ensuring energy efficiency.
Each LED channel allows independent PWM duty cycle control with either 12- or 16-bit dimming resolution, enabling fine brightness adjustment and smooth dimming performance. The embedded STM32 microcontroller facilitates full feature control via USB interface, simplifying system integration and configuration.
Safety and reliability are enhanced by embedded programmable fault detection and management circuitry, which can automatically disconnect any faulty LED channels without requiring manual host intervention, providing robust operation in industrial and commercial LED lighting applications.
This demonstration board exemplifies a ready-to-use evaluation kit for developers working with LED backlight systems and MCU-driven LED drivers, suitable for prototyping and optimizing LED lighting designs efficiently.
The board includes a 16-channel LED driver with integrated boost controller for precise LED string voltage control. It offers independent PWM duty cycles for each LED string with 12- or 16-bit dimming resolution. Integrated STM32 microcontroller allows easy USB control of the LED driver features.
Programmable fault detection can automatically disconnect faulty LED channels to protect the system. Designed for compact LED backlight applications with low power dissipation and high reliability.
This LED driver demo kit is ideal for industrial, commercial, and laboratory applications requiring compact, efficient LED backlighting solutions. Explore more LED driver and development tools on EnvMart.
Explore more products in our LED Driver Evaluation Kit category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model includes a 16-channel LED driver with an integrated boost controller for precise LED string voltage control, independent PWM duty cycles for each LED string with 12- or 16-bit dimming resolution, and programmable fault detection to disconnect faulty LED channels automatically.
The STEVAL-ILL035V1 incorporates the STM32F103C6T6A microcontroller, which allows for easy USB control of the LED driver features.
The integrated boost controller dynamically adjusts the output voltage to minimize voltage drop and power dissipation across connected LED strings, ensuring energy efficiency.
Each LED channel offers independent PWM duty cycle control with either 12-bit or 16-bit dimming resolution, allowing for fine brightness adjustment and smooth dimming performance.
It features embedded programmable fault detection and management circuitry that can automatically disconnect any faulty LED channels to enhance safety and reliability.
This demonstration board is designed for compact LED backlight applications in industrial, commercial, and laboratory settings requiring efficient LED lighting solutions.
The STEVAL-ILL035V1 complies with RoHS standards, ensuring it meets environmental and safety requirements.
The board allows full feature control via a USB interface, simplifying system integration and configuration.
The STEVAL-ILL035V1 is manufactured in Italy.
This model supports LED driver technology, specifically designed for controlling LED strings in backlighting applications.
The STEVAL-ILL035V1 is designed for use with microcontrollers (MCUs), facilitating integration into various LED lighting systems.
This product is classified as a demonstration board, making it suitable for evaluation and prototyping of LED driver applications.
