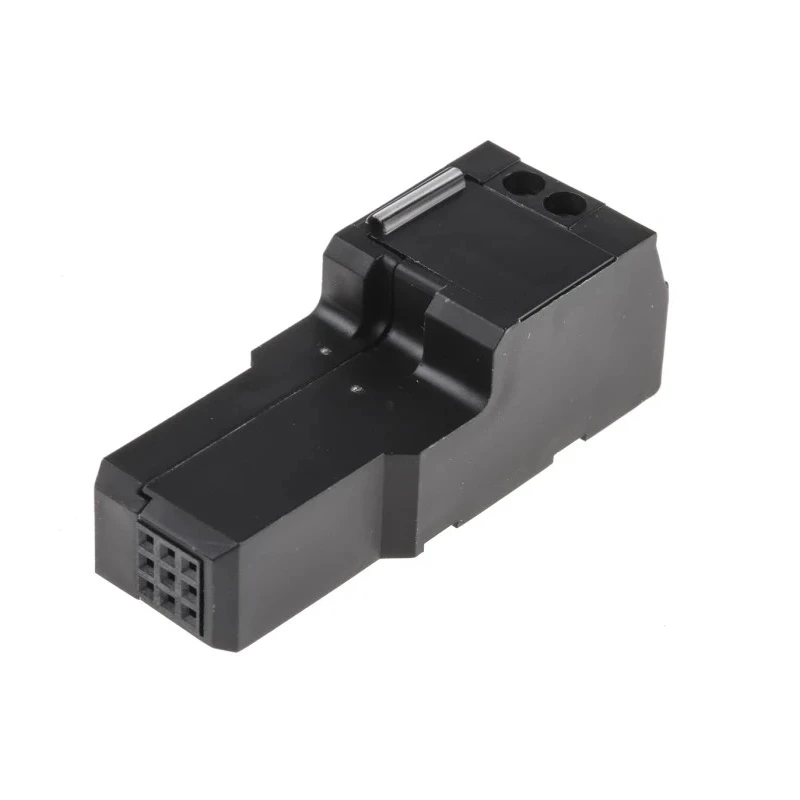

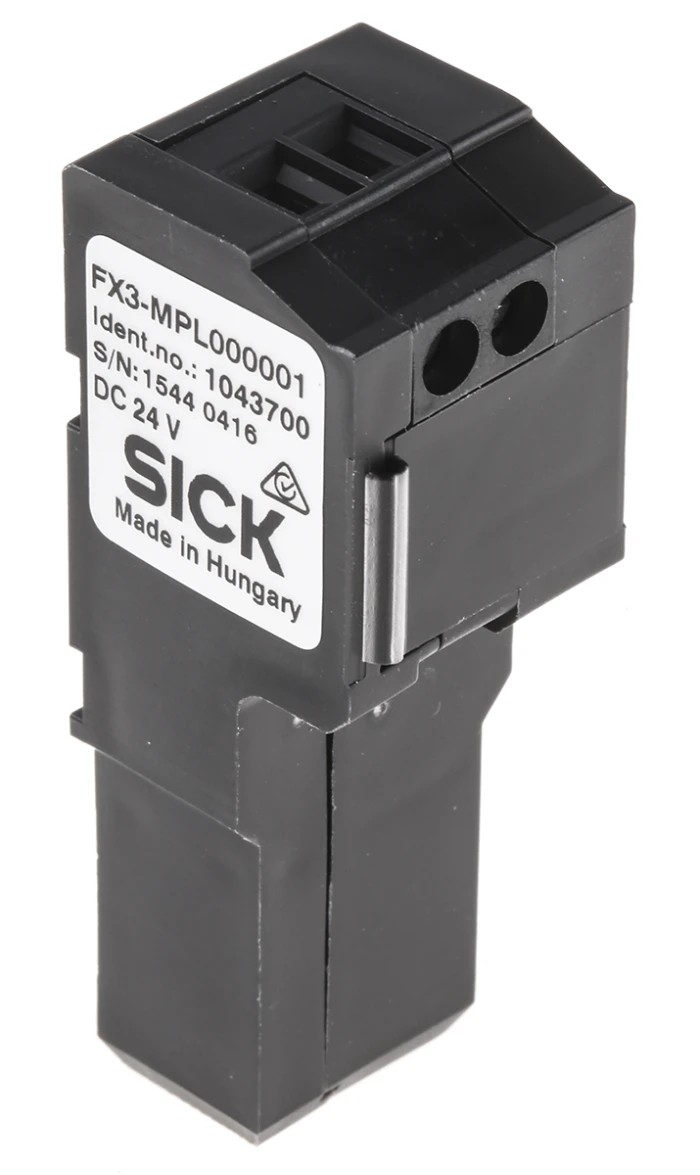

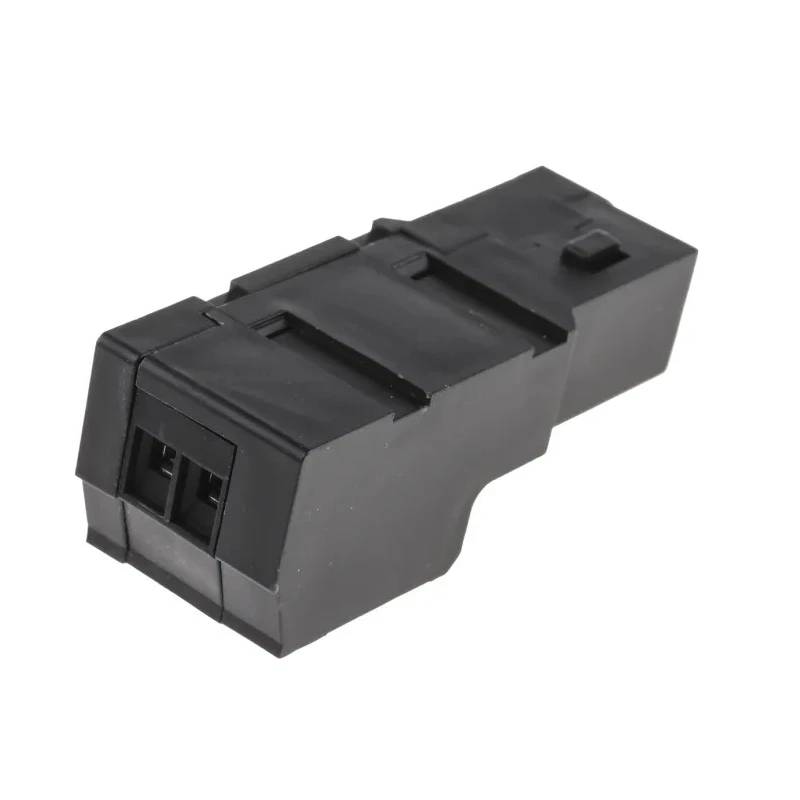

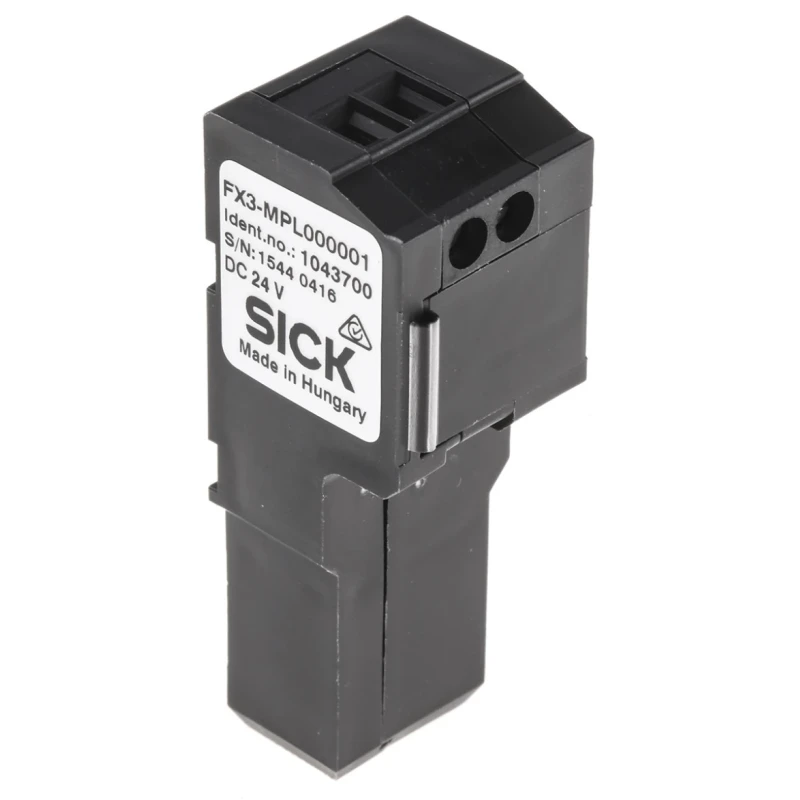

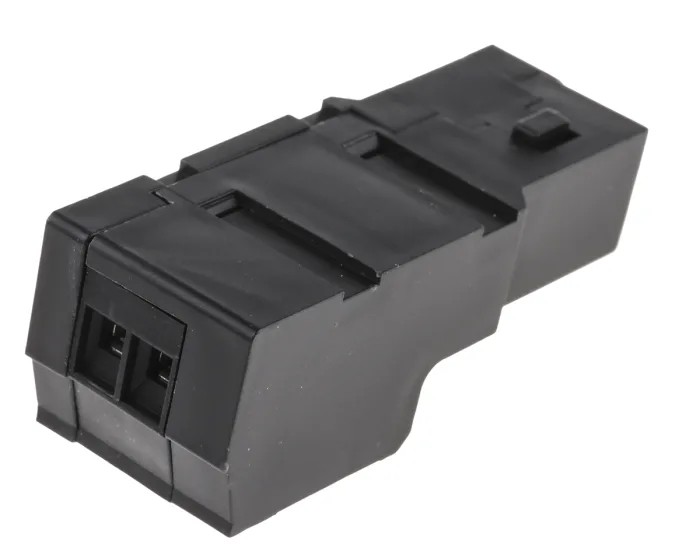

SICK FX3 Series Safety Controller Connector FX3-MPL000001

The SICK FX3-MPL000001 Safety Controller Connector is part of the FX3 series designed for flexible and modular safety control in industrial automation environments. It serves as the main unit's connection interface, facilitating the integration of safety logic across various input/output modules.

The system enables monitoring and processing of input signals stored in a memory plug that executes safety logic and controls output switching through a high-speed FLEX BUS+ interface connecting all units. Its RS-232 interface allows uploading system settings and continuous diagnostics, supporting PLC or HMI connections.

Key functional capabilities include Electronic Device Monitoring (EDM), muting, operating mode switching, and logical functions such as AND, NOT, OR, XNOR, and XOR, as well as application-specific logic for emergency stops and two-hand controls. The controller can be expanded modularly from 12 up to 144 inputs/outputs, catering to complex safety requirements.

The Flexi Soft system supports integration with existing PLCs through up to two gateways, which provide I/O status updates and error/status messaging. This enhances system diagnostics and control. Additionally, the system accommodates non-safety related information transmission from networks.

Power consumption is low at 2.5 W, promoting energy-efficient operation in industrial settings. The use of screw terminals ensures secure electrical connections. The controller is compliant with safety standards category 4 (EN ISO 13849), SIL3 (IEC 61508), SILCL3 (IEC 62061), and PL e (EN ISO 13849), suitable for high-reliability applications.

The Flexi Soft Safety Controller supports modular expansion from 12 to 144 inputs/outputs maximum. Logical functions include AND, NOT, OR, XNOR, XOR. Equipped with an RS-232 interface for system settings upload and diagnostics.

Compliant with Category 4 (EN ISO 13849), SIL3 (IEC 61508), SILCL3 (IEC 62061), and PL e (EN ISO 13849) standards. Power consumption is 2.5 W for efficient performance. Screw terminal type connectors provide reliable connections.

Free-to-download Flexi Soft Designer software allows intuitive configuration. Supports integration with existing PLCs via up to two gateways for monitoring. Manufactured in Hungary for high-quality industrial applications.

This Safety Controller Connector is essential for industrial automation, manufacturing lines, safety automation control systems, and complex machinery requiring modular and programmable safety components. Its compatibility with multiple networks and diagnostic interfaces makes it ideal for industrial use contexts, including laboratories, manufacturing plants, and safety-critical control systems.
