STMicroelectronics STEVAL LED Driver Evaluation Board for LED7708 with Daisy-Chained Configuration STEVAL-ILL035V2
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-ILL035V2 |
| For Use With | LED Driver |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | LED7708 |
| Kit Name | STEVAL |
| LED Technology | LED Driver |
Key Features
- Extension daughterboard for STEVAL-ILL035V1 motherboard based on LED7708 LED driver.
- Configures LED7708 as slave on STEVAL-ILL035V2 and master on STEVAL-ILL035V1.
- Boost controller section is unused; supply voltage is derived from the motherboard.
- Allows connection of multiple daughterboards to expand LED channel count beyond 16.
- Compliant with RoHS environmental standards.
Product Description

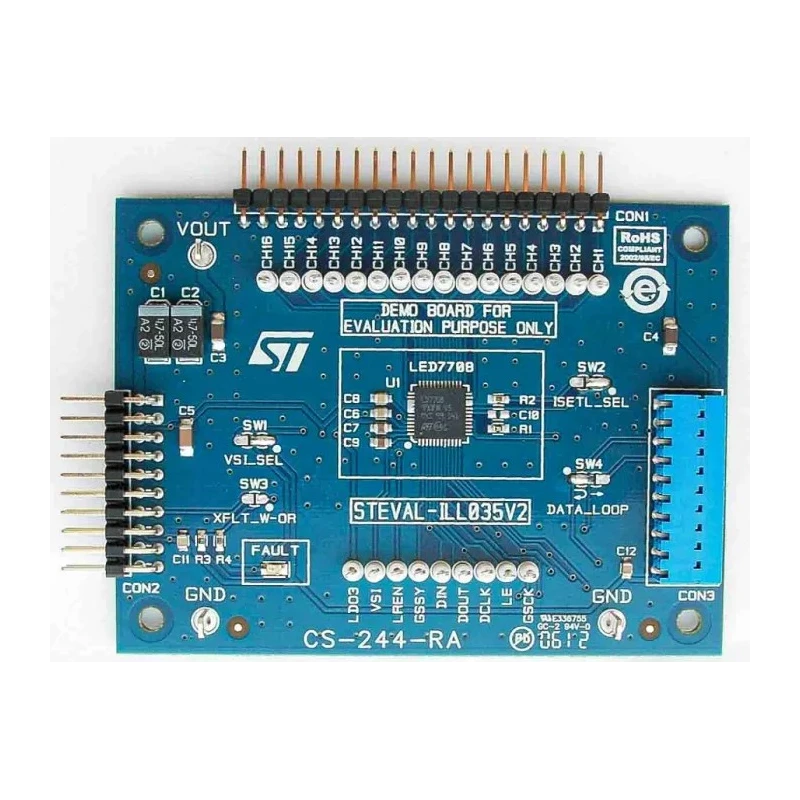

STMicroelectronics STEVAL-ILL035V2 is a specialized LED Driver Evaluation Board designed to extend the STEVAL-ILL035V1 motherboard functionalities by adding support for LED7708 driver IC in a daisy-chained configuration. This setup is ideal for applications that require managing more than 16 LED channels.
The product acts as a daughterboard where the LED7708 chip is configured as a slave device, while the STEVAL-ILL035V1 motherboard acts as the master controller. This hierarchical configuration ensures efficient control and scalability in complex LED driver systems.
The board does not utilize the boost controller section; instead, it draws the supply voltage for the LED strings from the master motherboard. This design optimizes output voltage through dedicated handshake signals, enhancing performance consistency and power management.
Multiple STEVAL-ILL035V2 daughterboards can be connected to a single STEVAL-ILL035V1 motherboard, enabling the expansion of LED channels well beyond 16, suiting sophisticated lighting applications.
The evaluation board conforms to RoHS environmental standards and is produced in Italy, ensuring quality and compliance with international electrical component regulations. Extension daughterboard for the STEVAL-ILL035V1 motherboard using LED7708.
Daisy-chain architecture supports expansion of LED channel control. Supply voltage sourced from master motherboard, optimizing power delivery. RoHS compliant and manufactured in Italy. Suitable for development and evaluation of LED driver applications with scalability.
This evaluation kit is highly suited for industrial, commercial, and research applications in fields such as electronic component development, LED lighting systems, and embedded systems prototyping environments.
EnvMart offers a comprehensive selection of LED Driver Evaluation Kits and related components to support electronics design and testing needs.
