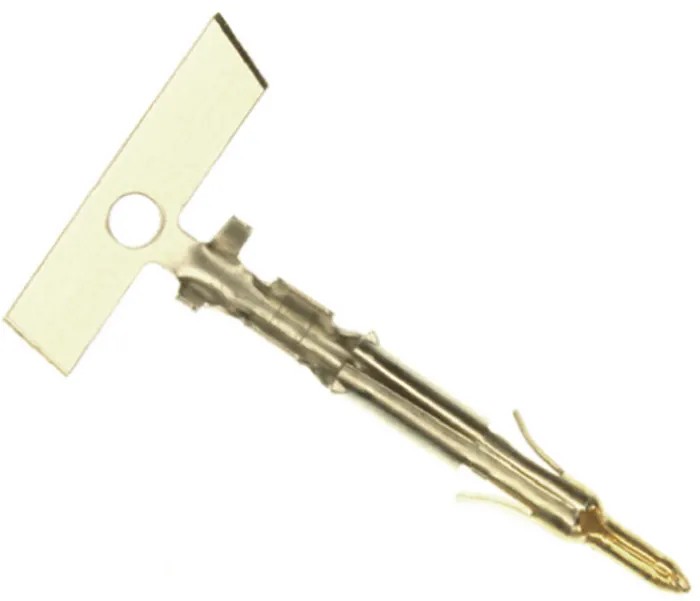

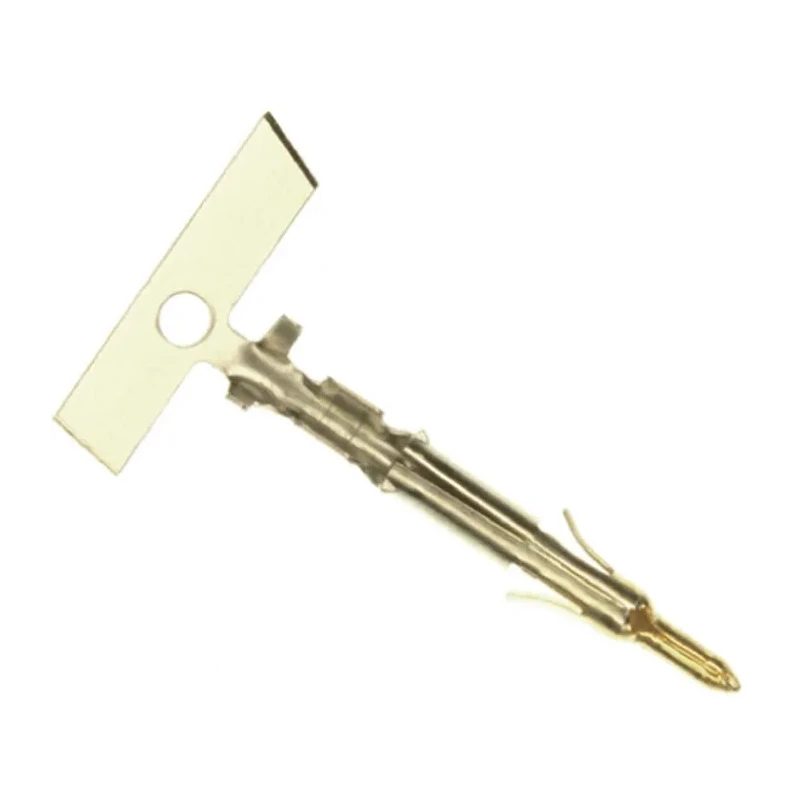

TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal, 22 AWG Min Crimp, 18 AWG Max 1-770987-0

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal, 22 AWG Min Crimp, 18 AWG Max 1-770987-0

Name: TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal, 22 AWG Min Crimp, 18 AWG Max 1-770987-0
Brand: TE Connectivity
SKU: 209497
Price: 0.85 USD
Availability: InStock



Category Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	United States
Brand	TE Connectivity
Current	9.5A
Gender	Male
Contact Material	Brass
Series	Mini-Universal MATE-N-LOK
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
For Use With	Mini-Universal MATE-N-LOK Connector Housing
Contact Plating	Gold
Minimum Wire Size mm²	0.3mm²
Maximum Wire Size mm²	0.9mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	18AWG
Maximum Contact Resistance	20mΩ

Key Features

The connector supports a maximum current of 9.5A for secure electrical performance.
Features gold-plated brass contacts ensuring excellent conductivity and corrosion resistance.
Compatible with Mini-Universal MATE-N-LOK Connector Housing for seamless integration.
Operates reliably between -55°C to 105°C, suitable for diverse environments.
Termination type is crimp, facilitating efficient wire attachment.
Maximum contact resistance is 20 milliohms for low power loss.
Designed and manufactured in the United States guaranteeing quality standards.

Product Description

TE Connectivity 1-770987-0 Mini-Universal MATE-N-LOK Series Male Crimp Terminal is a precisely engineered connector designed for electronic and electrical applications requiring reliable connectivity. It supports wire sizes ranging from 22 AWG minimum to 18 AWG maximum, making it suitable for a variety of wiring configurations.

This crimp terminal offers a current rating of 9.5 amperes, ensuring stable electrical performance under typical operating conditions. It features gold-plated brass contacts that deliver excellent conductivity and provide resistance to corrosion, enhancing durability and longevity in demanding environments.

Suitable for use with Mini-Universal MATE-N-LOK Connector Housings, the terminal seamlessly integrates into complex electrical assemblies for industrial, laboratory, and commercial electronics applications. The product tolerates a wide temperature range from -55°C to 105°C, which allows operation in harsh industrial and outdoor conditions.

The termination type is crimp, facilitating secure and efficient wire connections with minimal tool requirements. Furthermore, the design limits contact resistance to a maximum of 20 milliohms, which helps reduce energy losses and heat generation during operation.

The connector supports a maximum current rating of 9.5A. Contact material is brass with gold plating for corrosion resistance. Wire size range is from 22 AWG to 18 AWG. Operating temperature from -55°C to 105°C ensures robustness.

Termination type is crimp for reliable wire connection. Maintains maximum contact resistance of 20 milliohms. Manufactured in the United States to ensure quality compliance.

This product is ideal for electronic component assemblies in industrial automation, power distribution, control systems, and other electrical equipment. The robust design supports long service life and consistent performance, vital for manufacturing and maintenance operations.
