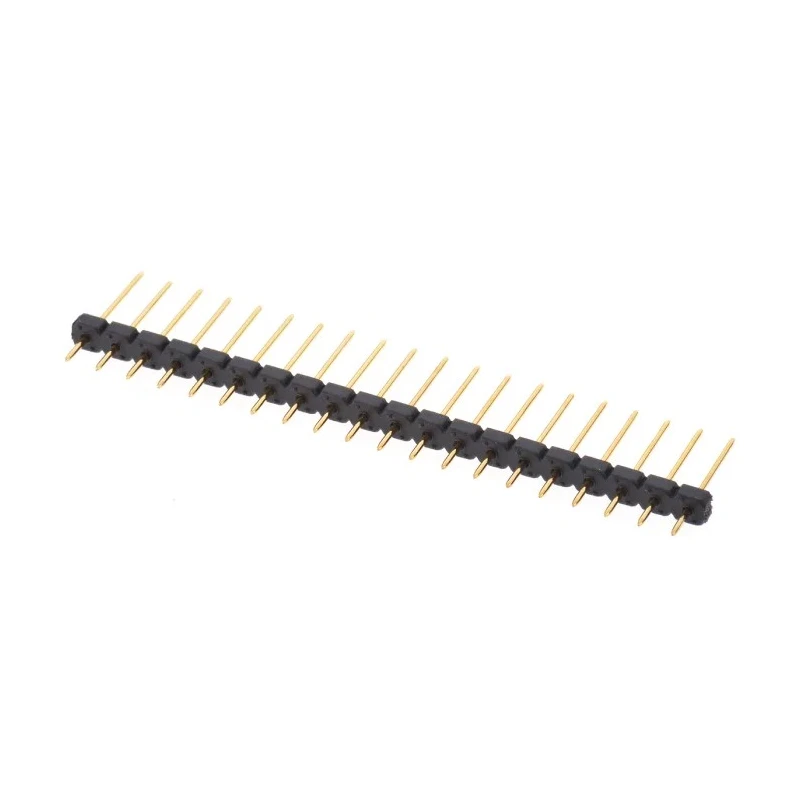

ASSMANN WSW AP Series Straight Through Hole Pin Header, 20 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded AP 119-20/G-N

ASSMANN WSW AP 119-20/G-N Straight Through Hole Pin Header is a high-quality electronic connector with 20 pins, spaced at 2.54 mm pitch. Featuring a single row and unshrouded design, this pin header is intended for board-to-board applications requiring reliable and precise electrical connections.

The pin header’s housing is constructed from durable polyamide material, providing excellent mechanical strength and thermal resistance suitable for industrial and commercial electronic assembly environments. Its gold-plated brass contacts ensure superior conductivity, corrosion resistance, and secure mating integrity.

This component mounts through the PCB using its 3mm tail pin length soldered termination, offering secure mechanical and electrical connections. It supports operating voltages up to 250V and continuous currents up to 3A, making it suitable for a wide range of low-power electronic applications.

The straight orientation and unshrouded configuration allow easy access and flexibility in connector arrangements during PCB design. Temperature tolerance ranges from -40°C to 105°C, ensuring longevity and reliability even under challenging environmental conditions. The mating pin length of 7.9 mm further aids in robust insertion with compatible connectors.

Manufactured in Germany, this AP series header complies with rigorous quality criteria, although there are no explicit certifications or approvals. It serves well in industrial electronics, manufacturing equipment, communication devices, and laboratory instrumentation assemblies that utilize board-to-board connection systems.

20 male contacts in one row for compact PCB connector solutions. Through hole mounting with solder termination for robust mechanical and electrical stability. Gold-plated brass contacts that resist corrosion and ensure superior conductivity.

Durable polyamide housing tolerant to industrial temperature ranges. Rated for 3A current and 250V voltage ensuring dependable electrical performance. Straight orientation design for ease of assembly and flexible PCB layouts.

Operating temperature from -40°C to 105°C supports diverse application environments. Mating pin length of 7.9 mm allows secure connector mating. Manufactured under high standards in Germany for quality assurance.

This ASSMANN WSW AP series pin header is ideal for electronic component assembly in sectors such as industrial control, telecommunications, instrumentation, and general electronics manufacturing. For more products in PCB connectors and headers, explore our Electronics & Electricals category at EnvMart.
