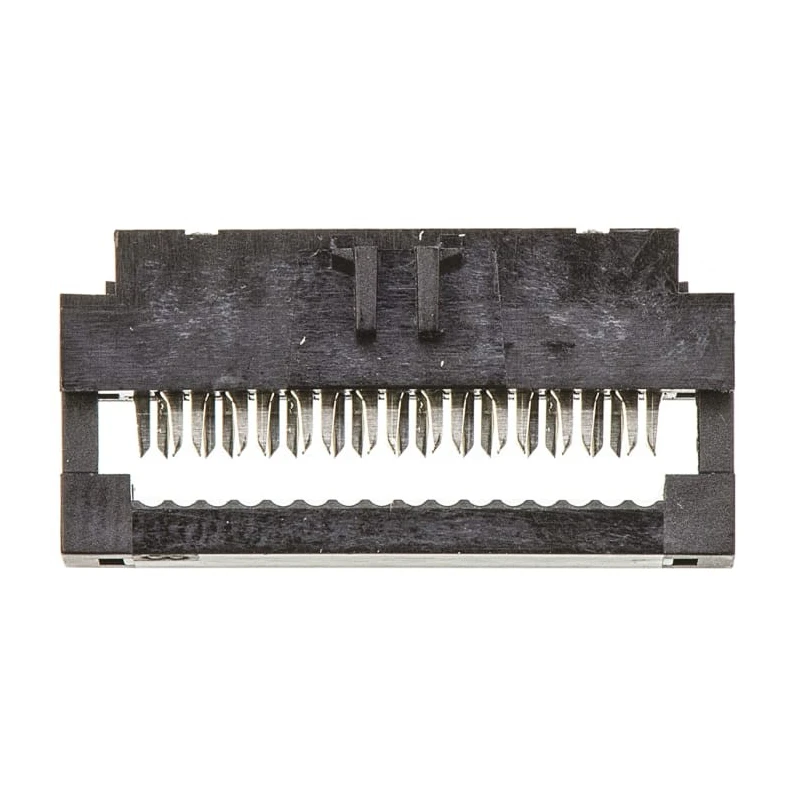

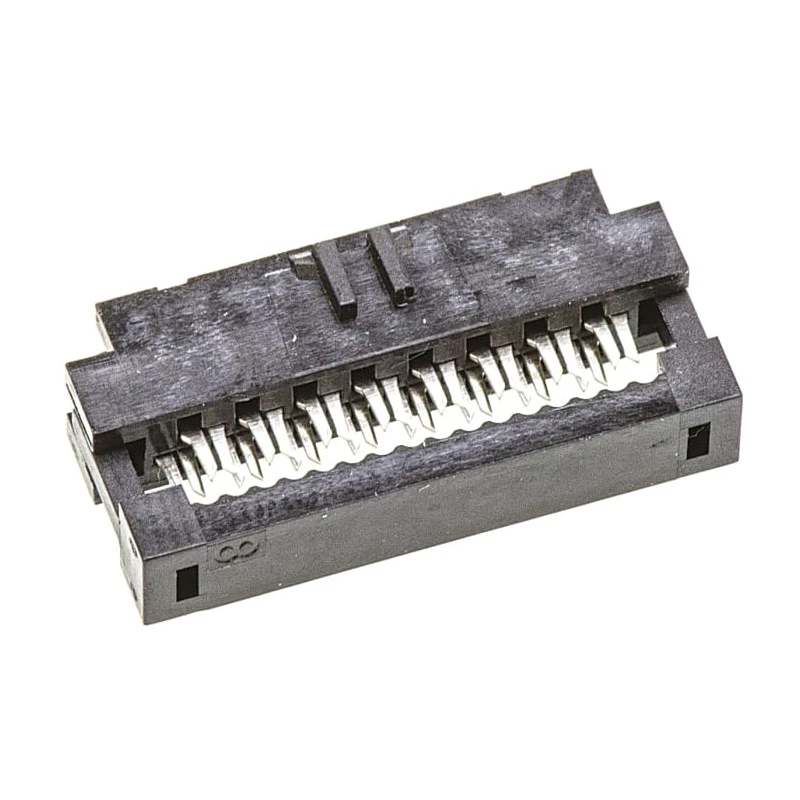

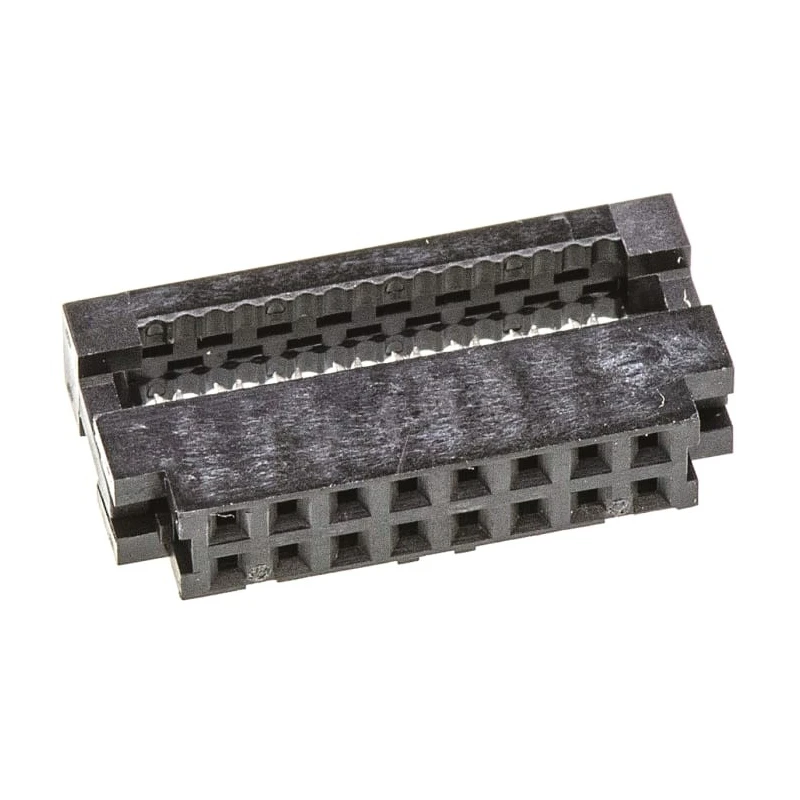

Amphenol Communications Solutions 16-Way IDC Connector Female for Cable, 2 Row 89361-716LF

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Communications Solutions 16-Way IDC Connector Female for Cable, 2 Row 89361-716LF

Name: Amphenol Communications Solutions 16-Way IDC Connector Female for Cable, 2 Row 89361-716LF
Brand: Amphenol Communications Solutions
SKU: 208223
Price: 2.19 USD
Availability: InStock



Category IDC Connector Brand Amphenol Communications Solutions Condition New

Specifications

Country of Origin	France
Voltage	650V ac
Brand	Amphenol Communications Solutions
Orientation	Right Angle
Current	1A
Model	89361-716LF
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Phosphor Bronze
Series	Minitek
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold over Nickel
Number of Contacts	16
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Shrouded

Key Features

Features a shrouded female connector design with 16 contacts arranged in 2 rows.
Gold over nickel plating ensures reliable contact performance and corrosion resistance.
Rated for 650V AC voltage and 1A current carrying capacity.
Constructed with phosphor bronze contacts and a durable polybutylene terephthalate housing.
Operates reliably between -40°C and 105°C for diverse industrial applications.
Right-angle orientation facilitates efficient cable routing in compact spaces.
Termination type is IDC, compatible with AWG 28 stranded wire.
Connector complies with Minitek series standards for intermateability and space saving of up to 38% compared to 2.54mm systems.

Product Description

Amphenol Communications Solutions 89361-716LF 16-Way IDC Connector Female for Cable, 2 Row is a high-quality cable mount IDC ribbon cable connector featuring a 2.0mm pitch. It is engineered to support reliable electrical connections in electronic and industrial applications.

This connector provides 16 contacts arranged in 2 rows, housed in a black PBT glass-filled UL 94V-0 rated housing with a central polarizing key and friction locking mechanism. The gold over nickel plated phosphor bronze contacts optimize conductivity and corrosion resistance.

The connector supports a voltage rating of 650V AC and a current capacity of 1A, suitable for various PCB and cable interconnection requirements. It operates within a wide temperature range from -40°C minimum to a maximum of 105°C, ensuring durability under harsh environmental conditions.

The right-angle orientation along with IDC termination type enables quick and secure cable termination with AWG 28 stranded wires. The connector is fully intermateable across the Minitek Headers and Connectors range, offering up to 38% space savings compared to typical 2.54mm pitch systems.

Shrouded female connector with 16 contacts in 2 rows. Gold over nickel plating for enhanced contact reliability. Voltage rating of 650V AC and current rating of 1A. Phosphor bronze contacts and durable polybutylene terephthalate housing.

Operating temperature range of -40°C to 105°C to support diverse environments. Right angle orientation for efficient cable routing. IDC termination type for AWG 28 stranded wire compatibility. Minitek Series compliant with up to 38% space saving over 2.54mm pitch connectors.

Manufactured in France to the highest quality standards.

This IDC Connector is ideal for use in aerospace, industrial automation, telecommunications, automotive electronics, and other demanding sectors requiring compact, reliable cable to board connections.
