TDK-Lambda DRL-30 Switched Mode DIN Rail Power Supply 264V AC Input 24V DC 1.25A 30W DRL30-24.1

Free Delivery in India | Lowest Global Shipping Charges

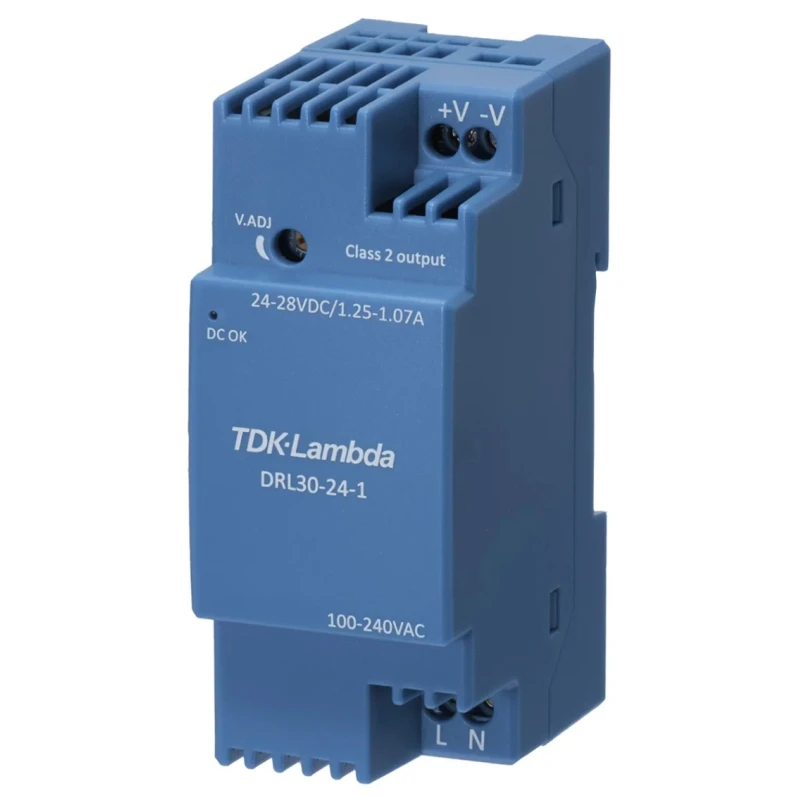

TDK-Lambda DRL-30 Switched Mode DIN Rail Power Supply 264V AC Input 24V DC 1.25A 30W DRL30-24.1

Name: TDK-Lambda DRL-30 Switched Mode DIN Rail Power Supply 264V AC Input 24V DC 1.25A 30W DRL30-24.1
Brand: TDK-Lambda
SKU: 208205



Category DIN Rail Power Supplies Brand TDK-Lambda Condition New

Specifications

Country of Origin	China
Brand	TDK-Lambda
Power	30W
Efficiency	90%
Height	91mm
Model	DRL30-24.1
Depth	55.6mm
Width	36mm
Series	DRL-30
Output Current	1.25A
Maximum Operating Temperature	71°C
Sub Type	Switched Mode
Minimum Operating Temperature	-20°C
Number of outputs	1
Maximum Input Voltage	264V ac
Electrical Phase	1
Maximum Output Voltage	24V dc
Minimum Input Voltage	85V ac

Key Features

Supports universal AC input voltage from 85 to 264V.
Offers high efficiency up to 90% to reduce energy consumption.
Built to operate between -20°C and 71°C ambient temperatures.
Includes LED status indicator for operational feedback.
Features low no-load power consumption less than 0.5W.
Provides output voltage adjustable from 24V to 28V DC for flexibility.
Meets standards UL 60950-1, UL 1310, IEC 60068-2-6, IEC 60068-2-27, and UL 508.
Designed with class II double insulation, requiring no earth ground connection.

Product Description

The TDK-Lambda DRL30-24.1 is a high-performance switched mode DIN rail power supply designed for industrial and commercial applications requiring stable 24V DC power output at 1.25A, totaling 30W.

It accommodates a wide single-phase AC input voltage range of 85VAC to 264VAC, making it suitable for diverse global power environments. Engineered with advanced circuitry, the power supply achieves a high efficiency level of up to 90%, minimizing heat generation and energy waste.

Operating reliably in ambient temperatures from -20°C to 71°C, it suits harsh environments commonly found in building automation and industrial control systems. This unit features a class II double insulation design, negating the need for an earth ground, enhancing installation flexibility and safety.

An LED indicator clearly signals operating status, while the low no-load power consumption under 0.5W promotes energy savings during idle conditions. The output voltage is adjustable within a range of 24V to 28V DC, allowing precise voltage tuning to match application requirements.

Universal AC input voltage from 85 to 264V AC. High efficiency up to 90% reduces energy costs. Class II double insulation simplifies grounding requirements. Wide operating temperature range: -20°C to 71°C. LED status indicator for easy monitoring.

Low no-load consumption below 0.5W conserves power. Adjustable output voltage between 24V and 28V DC. Certified to multiple standards including UL and IEC norms. Compact DIN rail mounting with dimensions 91mm (H) x 36mm (W) x 55.6mm (D).

Applications include building control systems, climate and HVAC control, renewable energy installations, security and surveillance electronics, and smart home automation. Produced under stringent quality controls, this power supply ensures reliable DC power delivery for sophisticated industrial and commercial electronic systems.
