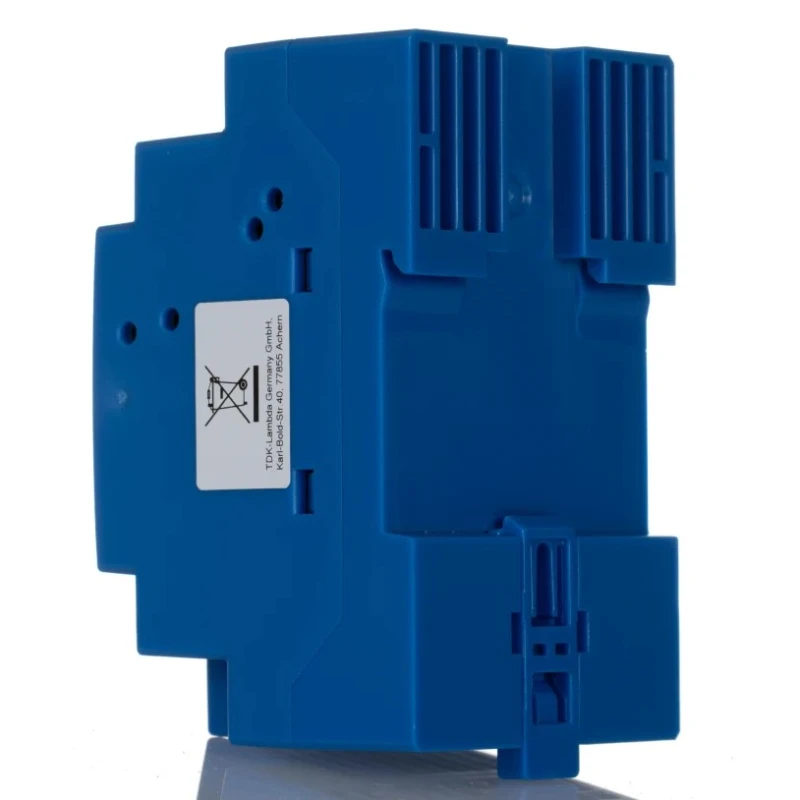

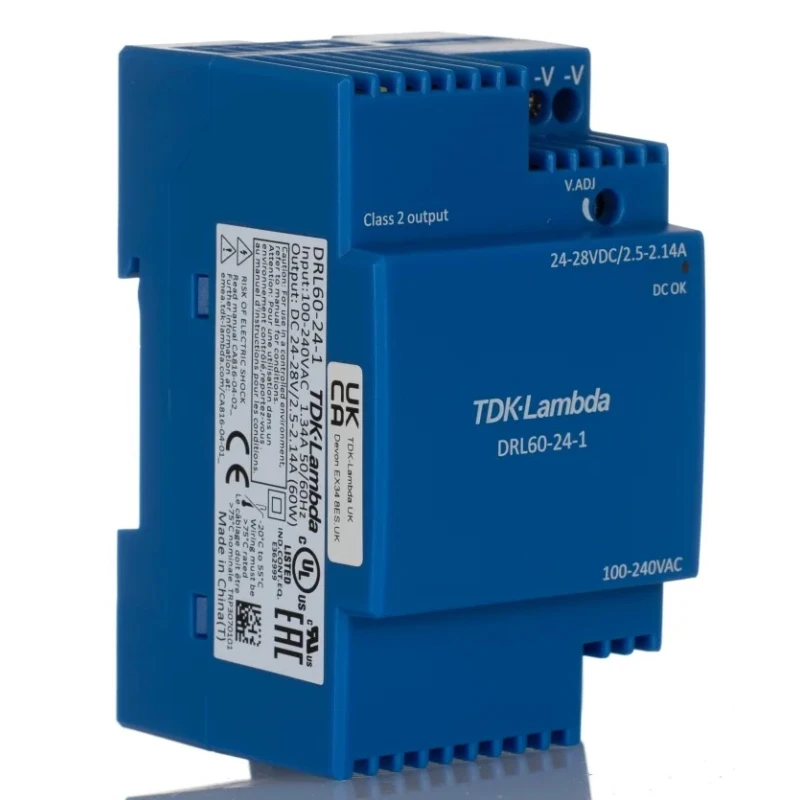

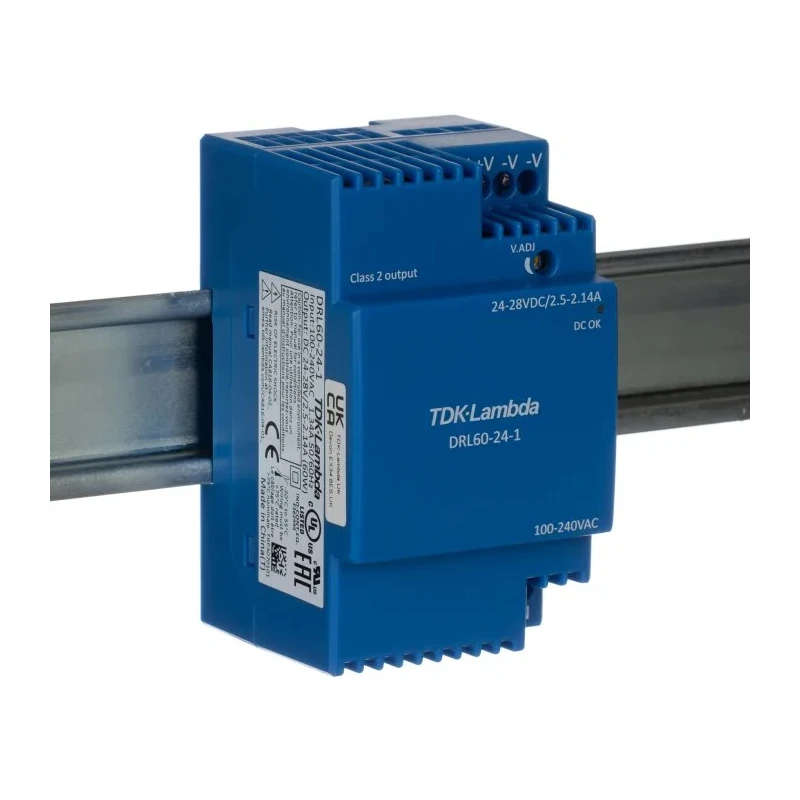

TDK-Lambda DRL-60 Switched Mode DIN Rail Power Supply 264V AC Input 24V DC 2.5A Output 60W DRL60-24-1

TDK-Lambda DRL60-24-1 switched mode DIN rail power supply delivers a reliable 24V DC output at an output current of 2.5A, providing a maximum power of 60 watts. Designed with a universal single-phase input voltage range of 85 to 264V AC, this power supply supports a broad spectrum of industrial power systems. The device incorporates a class II double insulation design, which negates the necessity for an earth ground connection enhancing overall electrical safety. The output voltage is adjustable between 24V DC and 28V DC, allowing customization to suit various applications.

Engineered for industrial, building automation, HVAC, renewable energy, security, and surveillance systems, the DRL60-24-1 offers a high efficiency of up to 90%, which minimizes energy loss and heat generation, thus improving reliability and operational costs. The product can sustain operating temperatures ranging from -20°C to 71°C, making it suitable for demanding environments. The unit features an LED status indicator to provide visible operational feedback and maintains low no-load power consumption between 0.3W and 0.5W, supporting energy-saving initiatives.

The power supply is compact with dimensions of 91mm (height) × 54mm (width) × 55.6mm (depth), optimized for installation on standard DIN rails to conserve space within electrical panels. Its robust design adheres to international safety and performance certifications including UL 60950-1, UL 508, UL 1310, IEC 60068-2-6, and IEC 60068-2-27, ensuring dependable performance and compliance with global standards.

Operating input voltage between 85V AC and 264V AC with single phase operation. Output voltage adjustable from 24V DC to 28V DC at 2.5A output current. High efficiency of 90% reduces power consumption and heat generation.

Class II double insulated design for enhanced electrical safety. Wide operating temperature range from -20°C to 71°C for industrial environments. Compact DIN rail mountable form factor for space saving installations. Low no load power consumption from 0.3W to 0.5W supports energy savings.

Compliant with UL 60950-1, UL 508, UL 1310 and IEC 60068 series certifications. LED status indicator for operational status monitoring.

This TDK-Lambda DIN rail power supply is ideal for use in industrial automation, climate control, building systems, renewable energy installations, security and surveillance setups, and smart home applications. Its universal input voltage range and adjustable output make it a versatile choice for various commercial and industrial electrical requirements. Explore more power supply solutions and industrial products in the Electronics & Electricals category on EnvMart.
