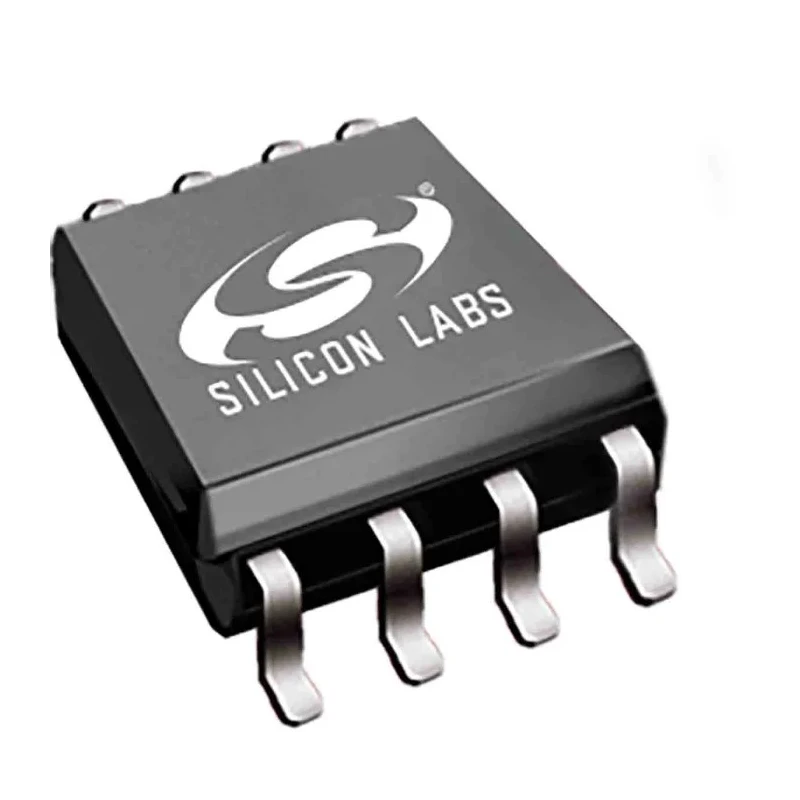

Skyworks Solutions Inc MOSFET Gate Driver 1 Driver 4A Output Current 8-Pin SOIC Package 5.5V-30V Supply Voltage Si8271BBD-IS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Skyworks Solutions Inc |
| Height | 1.5mm |
| Length | 5mm |
| Model | Si8271BBD-IS |
| Width | 4mm |
| Mount Type | Surface |
| Series | Si827x |
| Output Current | 4A |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Rise Time | 16ns |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 5.5V |
| Number of Drivers | 1 |
| Fall Time | 18ns |
| Driver Type | MOSFET |
Key Features
- Operates with a supply voltage range from 5.5V up to 30V.
- Features fast rise time of 16ns and fall time of 18ns.
- Includes a single driver with five outputs for versatile applications.
- Designed for surface mount installation in compact 5mm x 4mm x 1.5mm package.
- Supports automotive standard AEC-Q100 for reliability in harsh environments.
- Robust against noise with 400 kV/μs latch-up immunity and UVLO fault protection.
- Programmable dead time via DT pin enhances efficiency and safety of switching operations.
- Operational temperature range from -40°C to 125°C for wide environmental tolerance.
Product Description
Skyworks Solutions Inc Si8271BBD-IS MOSFET Gate Driver is a high-performance power management IC designed to drive MOSFETs with a robust current capacity of 4A. Encased in an 8-pin SOIC surface mount package measuring 5mm in length, 4mm in width, and 1.5mm in height, it offers compact and reliable integration into electronic systems.
This device supports supply voltages from 5.5V to a maximum of 30V, enabling flexibility for various industrial and automotive applications. It features a single driver with five output pins, providing efficient control over multiple MOSFETs. The rise and fall times of 16ns and 18ns, respectively, facilitate fast switching performance enhancing the overall system responsiveness.
Engineered to meet automotive standard AEC-Q100, the Si8271BBD-IS remains operational within -40°C to 125°C temperature range, guaranteeing durability in demanding conditions. It is built with a high latch-up immunity of 400 kV/μs to prevent damage from high noise transients, ensuring signal integrity and stability even with fast switching speeds.
Additional protections include under-voltage lockout (UVLO) fault protection and a de-glitch circuit for filtering noisy input signals. The device provides precise dead time programmability via a dedicated pin, allowing custom switching timing to optimize system efficiency and safety.
Typical applications include automotive powertrain electronics, industrial power systems, and high-speed, noise-sensitive switching environments. The compact footprint and robust electrical characteristics make the Si8271BBD-IS suitable for advanced power management solutions in semiconductor and electronics industries.
Operates within 5.5V to 30V supply voltage range. High output current capacity of 4A suitable for driving power MOSFETs. Compact 8-pin SOIC package for surface mounting and space-saving PCB design. Provides fast switching times, with 16ns rise and 18ns fall times.
Meets automotive AEC-Q100 reliability standards for harsh environment use. Incorporates UVLO fault protection and noise filtering circuits. Dead time programmability for efficient and safe switching control. Wide operating temperature from -40°C to 125°C for broad application scope.
Explore the range of power management ICs and MOSFET Gate Drivers available at EnvMart for your industrial, automotive, and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an output current capacity of 4A, making it suitable for driving power MOSFETs.
It operates with a supply voltage range from 5.5V to a maximum of 30V.
The dimensions of this unit are 5mm in length, 4mm in width, and 1.5mm in height.
The rise time is 16ns and the fall time is 18ns, facilitating fast switching performance.
It operates within a temperature range of -40°C to 125°C, suitable for various environments.
It is encased in an 8-pin SOIC surface mount package, designed for compact installations.
It includes under-voltage lockout (UVLO) fault protection and a de-glitch circuit for filtering noisy input signals.
Yes, it features programmable dead time via a dedicated DT pin to enhance efficiency and safety during switching operations.
Typical applications include automotive powertrain electronics, industrial power systems, and high-speed, noise-sensitive switching environments.
The country of origin for this model is India.
