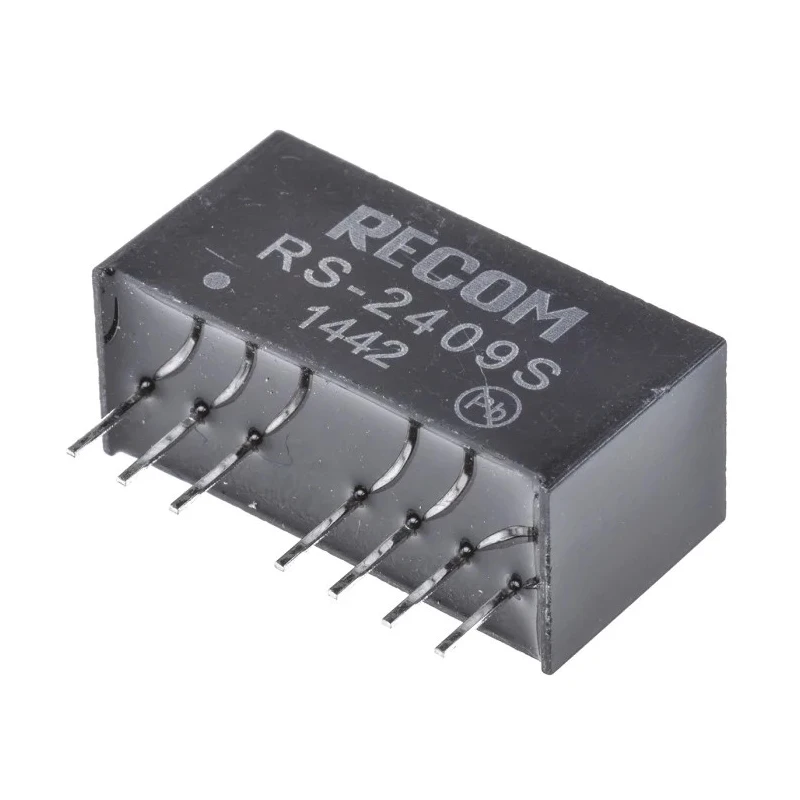

Recom 2W SIP Through Hole DC/DC Converter, 9V DC Output, 222mA, 18-24V DC Input, 85°C Max Temp RS-2409S

Recom RS-2409S is a high power-density 2W DC/DC converter packed in a SIP 8 through hole package, delivering a regulated 9V DC output at 222mA. It functions efficiently within an input voltage range of 18V to 24V DC, supporting a 2:1 input ratio ensuring reliable voltage conversion in industrial environments.

This converter is designed to operate across a wide temperature range from -40°C to 85°C, making it suitable for harsh and demanding industrial applications. The device includes 500V AC electrical isolation, which improves safety and protects downstream circuits.

Featuring continuous short circuit protection and low noise operation, the RS-2409S converter is ideal for use in applications requiring compact, reliable power supplies such as industrial control systems, telecommunications equipment, and embedded systems.

The converter complies with standards CSA, IEC, and UL, providing professional grade safety and quality assurance. Its compact dimensions of 21.8mm x 11.1mm x 11.1mm and a lightweight of 4.7g facilitate easy integration into space-constrained PCB layouts.

Provides a regulated 9V DC output voltage with an output current of 222mA. Operates with a wide input voltage range from 18V to 24V DC. Designed with a 2:1 input voltage ratio for stable conversion. Features a SIP 8 package type suitable for through hole mounting.

Offers 500V AC isolation voltage for electrical safety. Supports operating temperatures from -40°C to 85°C for industrial applications. Includes continuous short circuit protection and low noise operation. Attains up to 81% efficiency with CSA, IEC, and UL approvals.

Compact dimensions of 21.8mm length, 11.1mm width, and 11.1mm depth, weighing only 4.7g.

This DC/DC converter is well-suited for industrial, telecommunications, embedded electronics, and power management equipment where reliable, isolated, and compact power conversion is required.
