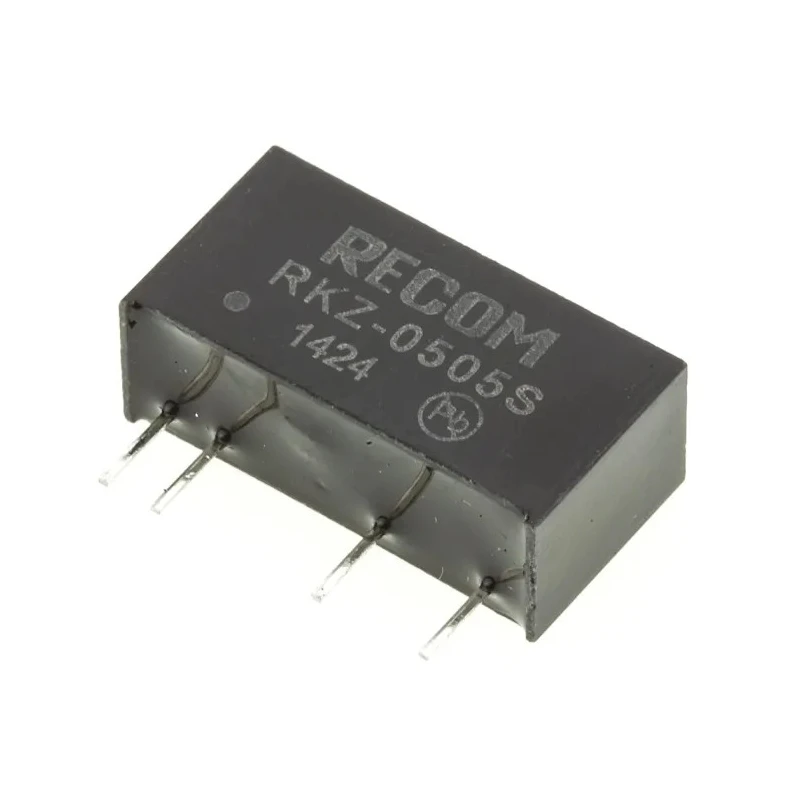

Recom 2W SIP DC/DC Converter, 5V DC Output, 400mA, 5V DC Input, 4.5V Minimum Input, Through Hole Mount RKZ-0505S

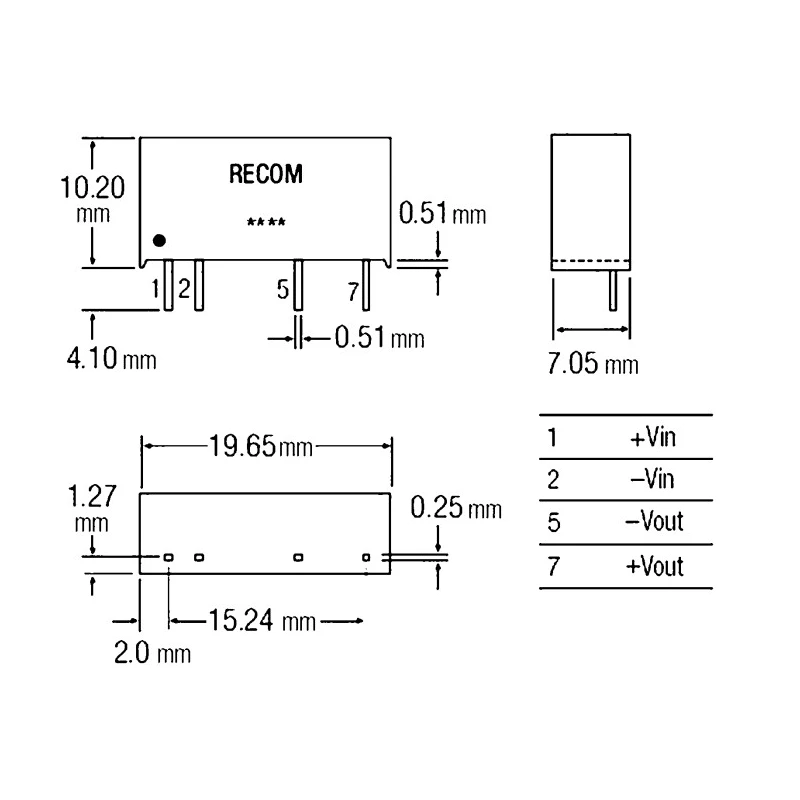

Recom RKZ-0505S is a 2W SIP single output DC/DC converter engineered for medical and industrial applications. This model delivers a regulated 5V DC output at 400 mA and operates efficiently with input voltages ranging between 4.5V and 5V. Its through-hole mount design and small footprint (19.65mm x 10.2mm x 10.2mm) make it suitable for compact PCB layouts.

Designed to meet high safety and reliability standards, the RKZ-0505S complies with both EN 60950-1 for industrial use and EN-60601-1 for medical applications. It supports a wide temperature operation range from -40°C to 85°C without derating, ensuring stable performance in harsh environments.

This converter features an isolation voltage of 3kV DC, which protects sensitive circuitry and reduces electromagnetic interference. The device provides low output ripple and noise (150mV peak-to-peak), suitable for precision electronic applications.

The RKZ series is well-suited for industrial power supply upgrades, especially for IGBT driver circuits and other power electronics where high isolation and reliability are critical. Its electrical durability is supported by a mean time between failures (MTBF) of 135,000 hours, tested according to MIL-HDBK 217F standards.

The compact SIP package uses UL94V-0 rated materials, enhancing fire resistance and safety compliance. Maximum output power of 2W with 84% efficiency. Wide operating temperature range from -40°C to 85°C. 3kV DC isolation voltage provides enhanced safety.

Compliance with EN 60950-1 and EN-60601-1 medical standards. Compact SIP footprint supports through-hole PCB mounting. Low ripple and noise output prevents interference in sensitive circuits. High reliability with MIL-HDBK 217F tested MTBF of 135,000 hours.

Certified to UL, IEC, and CSA standards for quality assurance.

This product is intended for use in industrial, laboratory, medical, and manufacturing electronics where stable, isolated DC power is necessary. The Recom RKZ-0505S bolsters product safety and efficiency, backed by a 3-year warranty.
