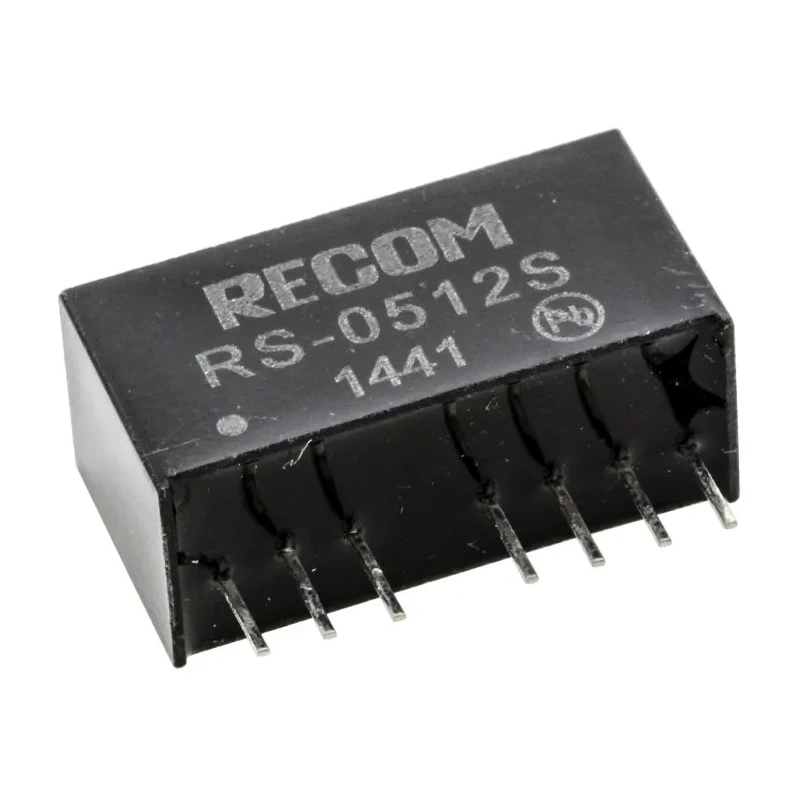

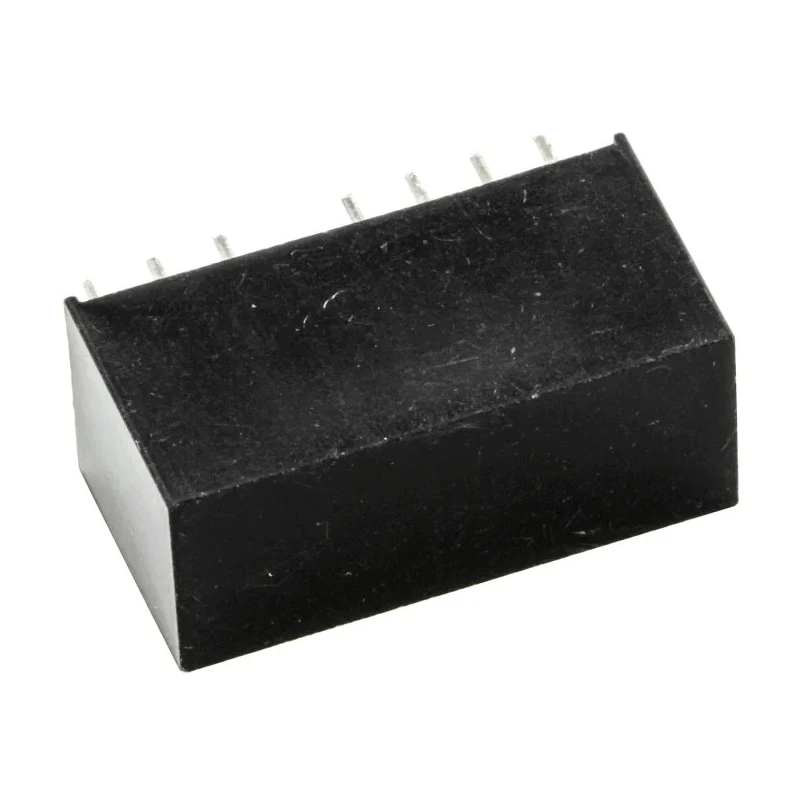

Recom 2W SIP Single Output Regulated Isolated DC-DC Converter, 12V dc Output, 166mA, 9V dc / 4.5V Input, Through RS-0512S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters Recom RS DC/DC Converter, 12V dc/ 166 mA, 9V dc In |
| Brand | Recom |
| Efficiency | 80% |
| Length | 21.8mm |
| Model | RS-0512S |
| Depth | 11.1mm |
| Mount Type | Through Hole |
| Series | RS |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1398000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 9V dc |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 8 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 166mA |
| Isolation Voltage | 500V ac |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
Key Features
- Provides 12V DC output at 166mA current capacity.
- Operates on a wide input voltage range from 4.5V to 9V DC.
- Features a high isolation voltage of 500V AC ensuring safety and signal integrity.
- Supports an industrial operating temperature range from -40°C to 85°C.
- Offers an efficiency of approximately 80% for low power loss.
- Compact SIP 8-pin package with dimensions of 21.8mm length and 11.1mm depth.
- Includes continuous short circuit protection and low noise design.
- Reliable with a mean time between failures (MTBF) of over 1,398,000 hours.
Product Description
Recom RS-0512S is a highly efficient 2W DC-DC converter module that delivers a regulated 12V DC output with a maximum current of 166mA, designed for applications that require stable power supply conversion within industrial and commercial environments.
This converter supports a wide input voltage range from 4.5V to 9V DC, allowing for flexibility in power source variations. Its through-hole SIP 8-pin package enables easy integration into PCB assemblies with reliable mounting.
The device offers 500V AC isolation which protects circuits from voltage surges and eliminates ground loop interference, making it suitable for sensitive electronics and industrial control systems.
Operating within a broad temperature range of -40°C to 85°C ensures robustness in harsh environmental conditions. Additional features include continuous short circuit protection and low electrical noise performance enhancing system reliability and signal quality.
The converter complies with flame retardant UL94V-0 standard package materials and achieves an efficiency rate of 80%, optimizing energy use. The RS series from Recom is known for long service life, with this model guaranteeing an MTBF of approximately 1,398,000 hours, ensuring dependable operation.
Provides regulated 12V output with 166mA current capacity. Wide input range from 4.5V to 9V DC with 2:1 ratio. High isolation voltage of 500V AC ensures electrical safety. Operation in extreme temperature range -40°C to 85°C.
Continuous short circuit and low noise operation. Compact SIP 8-pin through-hole mount package. UL94V-0 package material for flame retardant compliance. 80% efficiency for optimized power consumption. Designed for industrial, laboratory, and commercial power applications.
This Recom DC-DC converter finds use in industrial automation, instrumentation, telecommunications, and power management systems requiring isolated voltage conversion. Its small footprint and robust performance make it ideal for embedded system power supplies and instrumentation isolation tasks.
Explore the breadth of Recom power conversion solutions in our DC/DC Converter category at EnvMart for reliable and efficient components.
