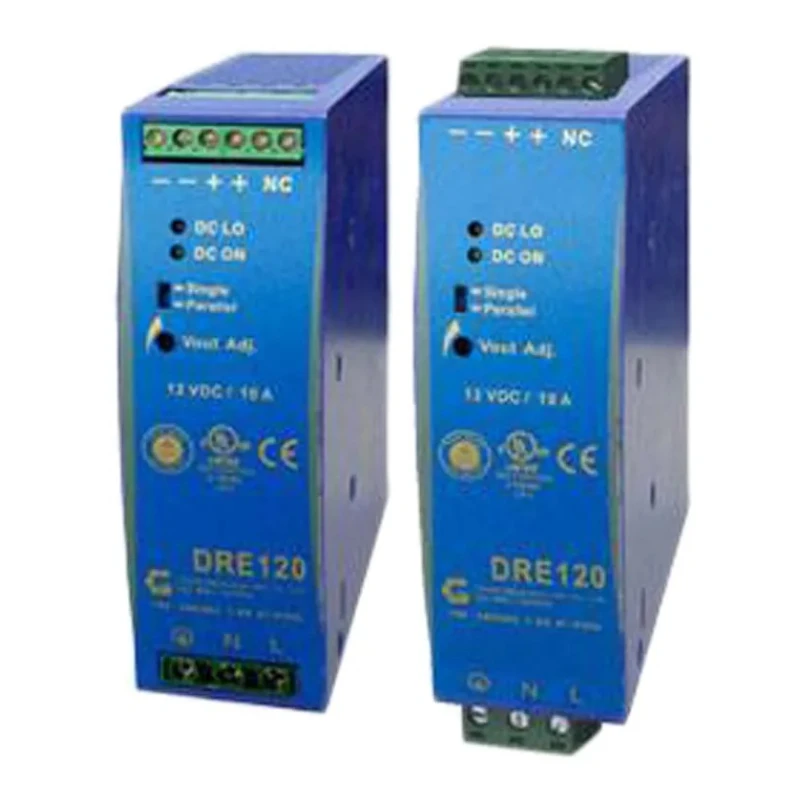

Chinfa DRE120 Switched Mode DIN Rail Power Supply 264V AC Input 12V DC, 10A Output, 120W Power DRE120
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Chinfa |
| Power | 120W |
| Efficiency | 91% |
| Height | 124.5mm |
| Model | DRE120 |
| Depth | 116.6mm |
| IP Rating | IP20 |
| Width | 40mm |
| Series | DRE120 |
| Output Current | 10A |
| Maximum Operating Temperature | 71°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Maximum Output Voltage | 12V dc |
| Minimum Input Voltage | 88V ac |
Key Features
- Compact DIN Rail mountable power supply designed for industrial installations.
- High efficiency of approximately 91% reduces energy loss and heat generation.
- Built-in active power factor correction (PFC) for stable power delivery.
- Wide operating temperature range from -40°C to 71°C for harsh environments.
- Parallel function available via switch selection for increased capacity.
- Includes internal input filter and short circuit protection for device safety.
- SELV design ensures electrical safety standards compliance.
- Standards compliant with UL 62368-1, EN 55032, EN 61558-1, EN 61558-2-16, UL 508, and related certifications.
Product Description
Chinfa DRE120 is a switched mode DIN Rail power supply engineered for industrial and factory automation applications. With a maximum output voltage of 12V DC and output current of 10A, it delivers a stable 120W power supply suitable for building controls, instrumentation, electromagnetic drives, and industrial control systems.
Featuring universal 1-phase AC input voltage ranging from 88V to 264V AC, the DRE120 includes active power factor correction, ensuring reliable and efficient power conversion with efficiency rated at 91%. Its robust construction supports operating temperatures from -40°C to 71°C, enabling use in demanding environments.
The product incorporates internal input filtering and built-in short circuit protection, enhancing its operational reliability. The design conforms to multiple international standards including UL 62368-1 and EN certifications, making it suitable for global industrial deployment.
The compact size with dimensions of 124.5 mm height, 40 mm width, and 116.6 mm depth allows easy mounting on standard DIN rails. Its IP20 rating safeguards against ingress of solid objects while being ideal for indoor electrical panels.
Compact DIN Rail power supply for industrial control and automation. High efficiency and reliability with built-in active PFC circuit. Wide input voltage range from 88 to 264V AC allows universal installation. Output current capacity of 10A and stable 12V DC output voltage.
Compliant with multiple safety and EMC standards for worldwide use. Operating temperature range supports harsh environmental conditions. Short circuit and overload protection for enhanced device safety. SELV components ensure safe low voltage output in control panels.
Dimensions optimize space use in control enclosures. Ideal power supply solution for building controls, factory automation, instrumentation, and electromagnetic drives.
Chinfa's DRE series is trusted for cost-effective, reliable power supplies in industrial, manufacturing, and electrical distribution sectors. Explore more products in the DIN Rail Power Supplies category at EnvMart for your control system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 120W.
This unit has an output current capacity of 10A.
The efficiency of the Chinfa DRE120 is approximately 91%.
The dimensions are 124.5 mm in height, 40 mm in width, and 116.6 mm in depth.
It operates within a temperature range of -40°C to 71°C.
Yes, it includes built-in short circuit protection and an internal input filter for enhanced safety.
It features a SELV design, ensuring compliance with electrical safety standards.
It complies with multiple international standards including UL 62368-1 and EN certifications.
Yes, it has a parallel function available via switch selection for increased capacity.
The DRE120 has an IP20 rating, protecting against the ingress of solid objects.
