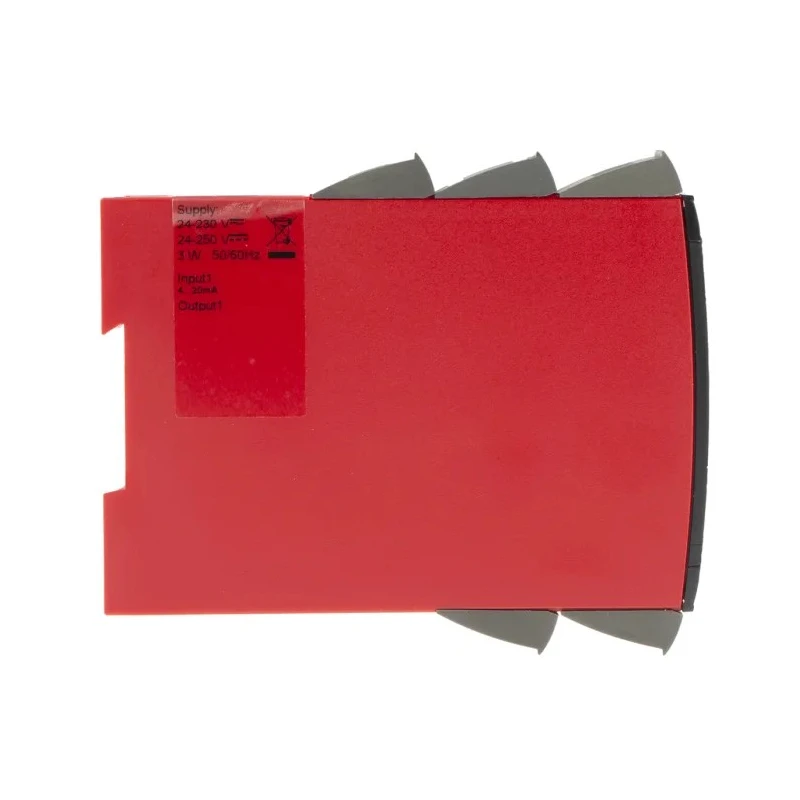

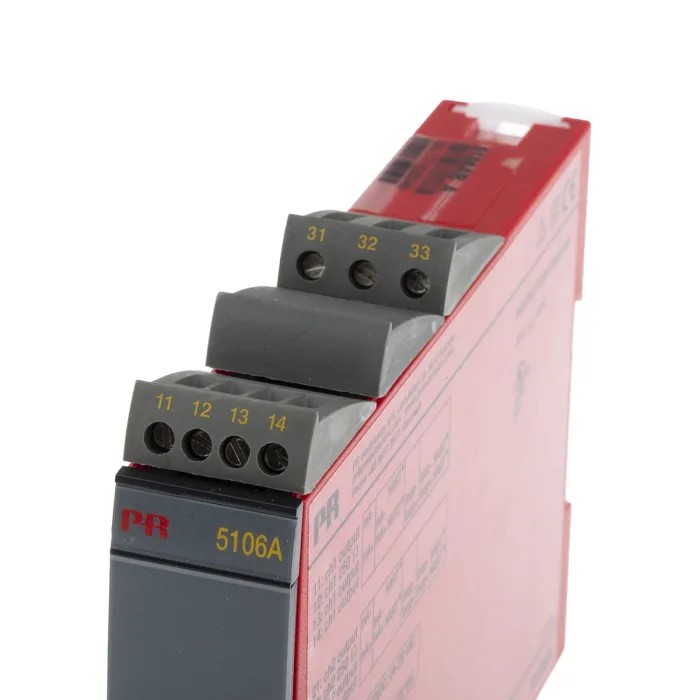

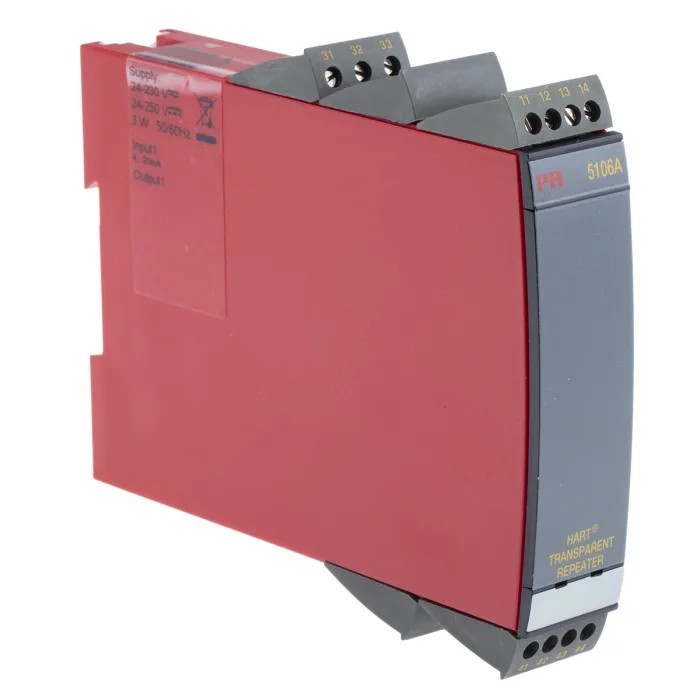

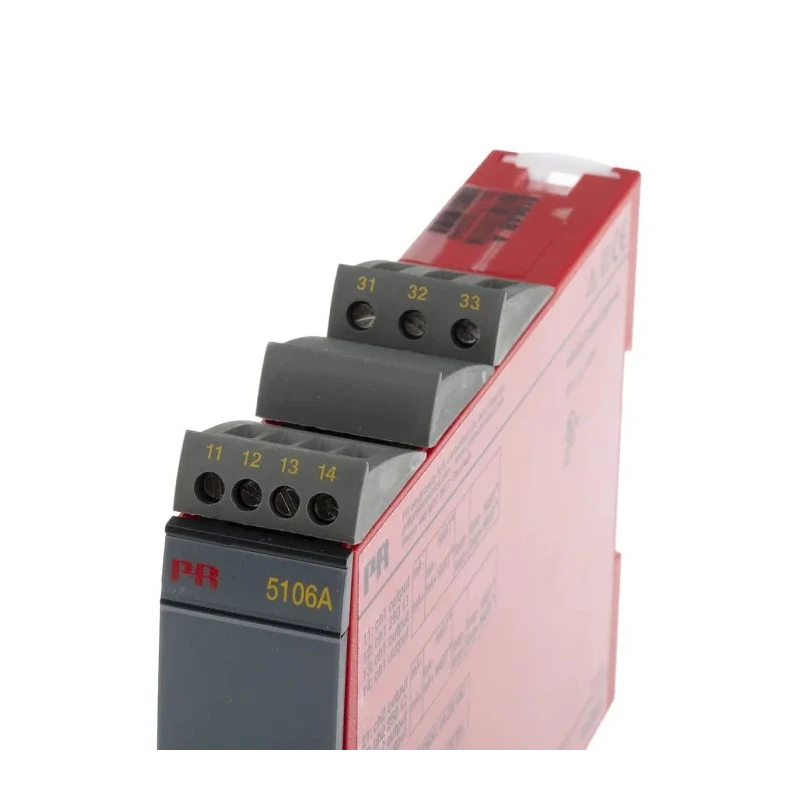

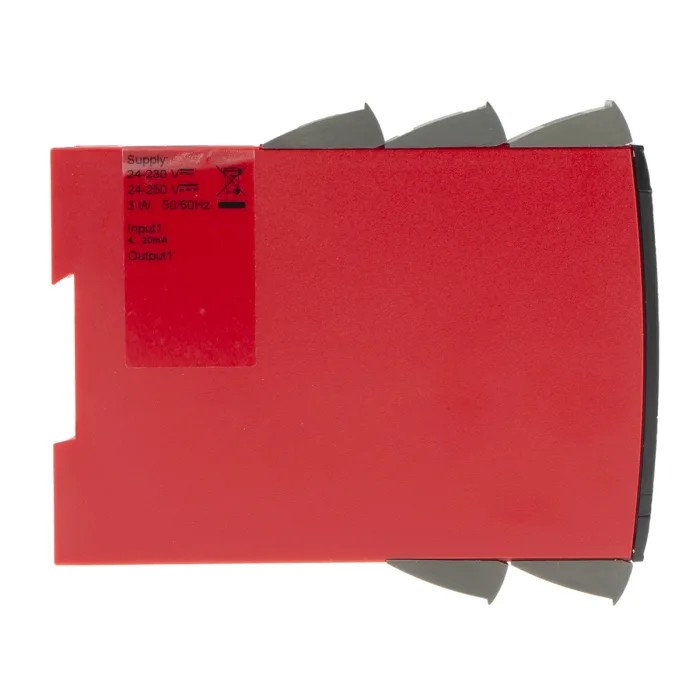

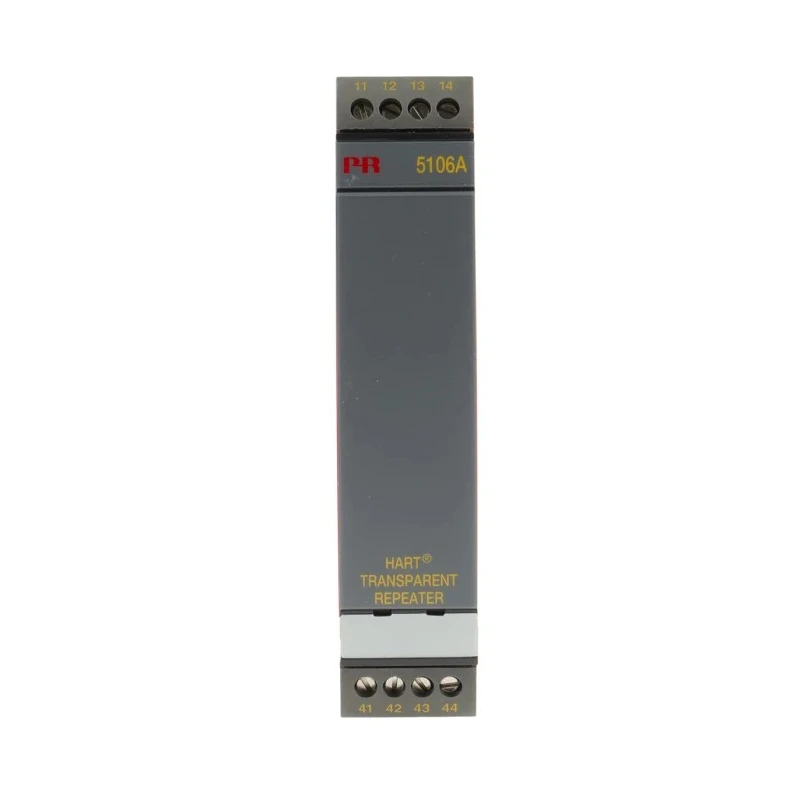

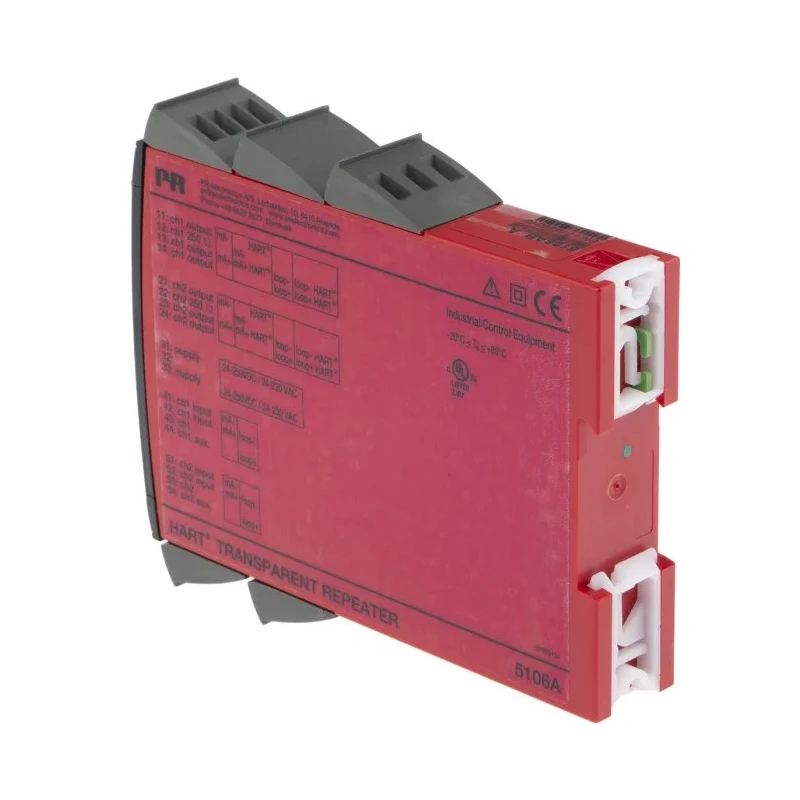

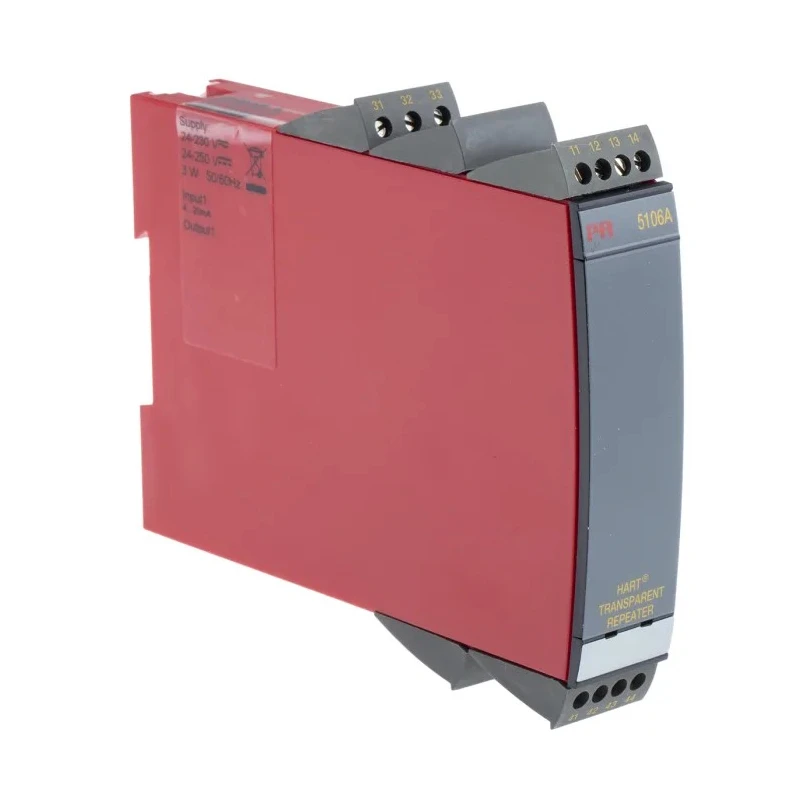

PR Electronics 5106A Series Transparent Repeater, Current Input & Output, 4-20 mA, 3.75kV AC Isolation, DIN Rail 5106ABA

PR Electronics 5106ABA transparent repeater is a high-performance signal isolator designed for industrial and electrical applications requiring accurate current signal transmission and galvanic isolation. Model 5106ABA supports 4 to 20 mA current input and output signals with a fast response time under 25 milliseconds, enhancing signal quality and protecting measurement instruments.

This device offers universal power supply options covering 21.6V AC, 253V AC, 19.2V DC, and 300V DC, allowing versatile installation in diverse environments. The galvanic isolation of 3.75 kV AC electrically separates inputs, outputs, and supply circuits, reducing noise and preventing ground loops.

The repeater is engineered for easy deployment on DIN rails, with vertical or horizontal mounting configurations, maximizing space efficiency by enabling up to 84 channels per meter. Its robust construction includes screw terminal connections and an IP20 rating suitable for protected indoor environments.

Supporting the HART communication protocol allows integration with 2-wire transmitters commonly deployed in hazardous areas, facilitating digital communication over analog current loops without interrupting the signal. This repeater meets pertinent standards including LVD 2014/35/EU, EMC 2014/30/EU, EAC TR-CU 020/2011, and UL 508, ensuring compliance with international safety and electromagnetic compatibility requirements.

The PR Electronics 5106ABA repeater is widely applicable in automation, process control, instrumentation, and monitoring systems across industrial sectors where precise and reliable signal isolation and transmission are critical.

The repeater supports universal supply voltage ranges including 21.6V AC, 253V AC, 19.2V DC, and 300V DC. It provides galvanic isolation between inputs, outputs, and supply to protect equipment and enhance signal integrity.

Low response time with analogue signal transmission under 25 ms ensures fast and reliable operation. Equipped with screw terminal connections for secure wiring. Designed to operate in temperatures from -20°C to 60°C with an IP20 rating for indoor use.

Compact DIN rail mount design allows vertical or horizontal installation without spacing between devices. Implements HART digital communication protocol for 2-wire transmitter systems used in hazardous environments. Complies with multiple international standards including LVD 2014/35/EU and UL 508.

Suitable for industrial automation, electrical and process control applications. Explore PR Electronics products and similar Signal Conditioners at EnvMart for reliable instrumentation solutions.
