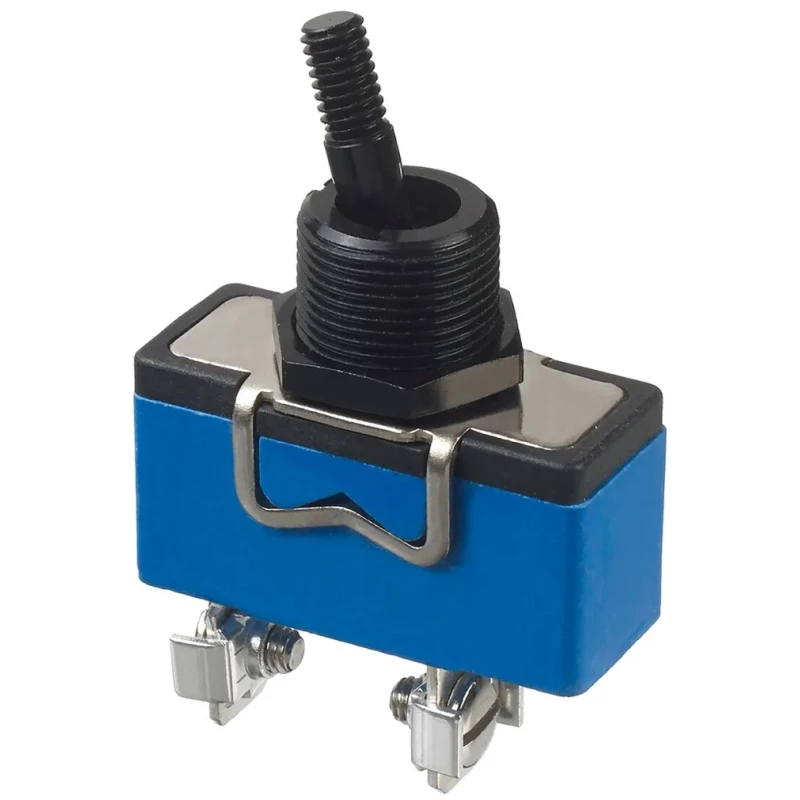

APEM Toggle Switch Panel Mount On-Off-On DPDT 10A 400V AC Screw Terminal Brass Actuator 647H/GX2330
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Model | 647H/GX2330 |
| Mount Type | Panel |
| Construction | Terminal and contact support are manufactured from a single piece of metal. The contacts are resistance-welded to the terminal for increased mechanical strength |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Switch Configuration | (On)-Off-(On) |
| Rating | These switches are suitable for motor loads and power applications up to 15A 250VAC or 10A 400VAC |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 12.2 mm |
| Terminal type | Screw |
| Standards/Approvals | CSA, UL, NF-VDE EN 61058-1 |
| Switch Operation | On-Off-On |
| Actuator Length | 17.5mm |
| Switch Contact Current | 10A |
| Mechanical Life | 10Cycles |
| Contact AC Voltage | 400V ac |
| Actuator Material | Brass |
Key Features
- This toggle switch operates in an On-Off-On switching configuration.
- It supports a double pole double throw (DPDT) contact arrangement.
- The panel cutout size required is 12.2 mm for mounting.
- The actuator length measures 17.5 mm, made from durable brass material.
- The switch has a mechanical life rated at 10 cycles ensuring reliability.
- It is suitable for motor loads and power applications up to 15A 250VAC or 10A 400VAC.
- The switch operates safely within a temperature range of -20°C to 55°C.
- It is panel mountable with screw terminal type connections and is not illuminated.
Product Description
APEM 647H/GX2330 is a high-quality industrial toggle switch designed for panel mount applications, operating at 10A current with an AC voltage rating of 400V. The switch features a robust double pole double throw (DPDT) On-Off-On configuration suitable for diverse electrical and automation systems.
This toggle switch incorporates a brass actuator of 17.5 mm length that provides strength and durability while the panel cutout size is precisely 12.2 mm ensuring a secure fit. Its construction benefits from a single-piece metal terminal and contact support with resistance-welded contacts, offering increased mechanical strength and reliability for heavy-duty motor load applications.
The switch is suitable for use in industrial, manufacturing, electrical control panels, and automation equipment, providing dependable switching capabilities under continuous operation within a temperature range of -20°C to 55°C.
Designed to meet rigorous safety and quality standards, it holds approvals from CSA, UL, and NF-VDE EN 61058-1, ensuring compliance with international certification norms. This toggle switch operates with an On-Off-On switching mechanism allowing versatile control.
The double pole double throw (DPDT) contact configuration supports complex switching circuits. Its rating accommodates motor loads and power applications up to 15A 250VAC or 10A 400VAC. Constructed with a single metal piece terminal and contact support for enhanced strength.
Screw terminal type connections simplify installation and provide secure wiring. Non-illuminated for straightforward switching without indication lights. The mechanical life of 10 cycles demonstrates reliability over repeated operations.
Operating temperature range from -20°C to 55°C suits diverse environmental conditions. Perfectly suited for electrical, industrial, automation, and control panel applications requiring robust toggle switching. This product is manufactured in France, emphasizing quality and European manufacturing standards.
Explore EnvMart’s broad range of professional-grade Toggle Switches and electrical components for advanced industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum AC voltage rating for this toggle switch is 400V.
This model has a current rating of 10A for AC applications.
The required panel cutout size for installation is 12.2 mm.
It uses screw terminal type connections for secure wiring.
The mechanical life of this toggle switch is rated at 10 cycles.
It operates safely within a temperature range of -20°C to 55°C.
The actuator is made of brass and measures 17.5 mm in length.
The contact configuration is double pole double throw (DPDT).
It holds approvals from CSA, UL, and NF-VDE EN 61058-1.
It is suitable for motor loads and power applications up to 15A 250VAC or 10A 400VAC.
This model features an On-Off-On switching operation.
This toggle switch is manufactured in France.
