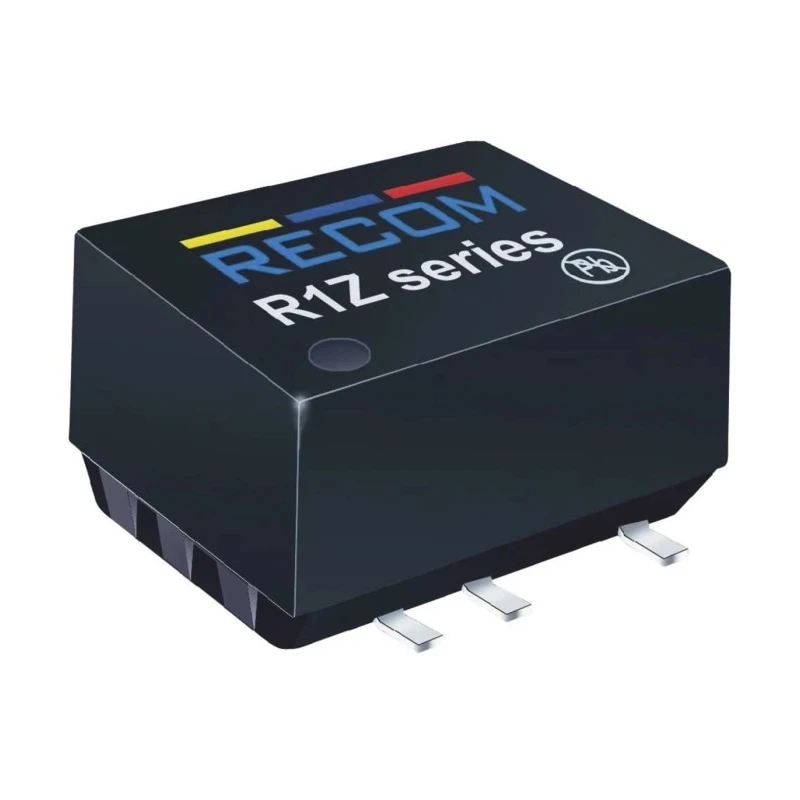

Recom 1W Surface Mount DC/DC Switching Regulator 5V DC Output Voltage 200mA Output Current R1Z-0505/P

Recom R1Z-0505/P is a 1 watt surface mount DC/DC switching regulator designed for regulated and isolated single output applications. Operating with a nominal maximum input voltage of 5.5V DC and output voltage fixed at 5V DC delivering up to 200mA, this module is ideal for converting and isolating DC power rails in compact electronic devices.

This switching regulator series features a miniature Surface Mount Device (SMD) package measuring 15.24mm in length, 10.7mm width and depth, making it suitable for high-density PCB assemblies. The device operates reliably across a wide temperature range from -40 degrees Celsius to 70 degrees Celsius, supporting demanding industrial and commercial environments.

With efficiency ratings of up to 60%, the R1Z-0505/P ensures energy-efficient power conversion. Low ripple and noise of 100mV peak-to-peak maintains signal integrity for sensitive electronics. Its no load power consumption is typically 217 milliwatts, further enhancing system efficiency.

The product uses a UL94V-0 rated package material ensuring flame retardant safety standards. The built-in isolation capability between input and output circuits allows safe integration into complex power supply architectures. This high reliability regulator boasts an MTBF of approximately 2.39 million hours per MIL-HDBK 217F, underscoring its suitability for long-term use in industrial and instrumentation applications.

This module is compliant with RoHS directives, reflecting environmentally conscious manufacturing practices. Applications include power supplies for telecommunications, instrumentation, industrial control, and embedded systems requiring regulated isolated voltage conversion with surface mount assembly.

Delivers 1 watt regulated isolated output at 5V DC voltage and 200mA current. Surface mount design allows compact electronic device integration. Wide operating temperature range suited for industrial use. High efficiency and low power consumption reduce thermal load.

Compliance with RoHS supports environmentally responsible product design. Compact package dimensions optimize PCB space usage. Long MTBF ensures reliable operation in critical applications. UL94V-0 flame retardant packaging enhances safety.

Excellent ripple and noise performance for sensitive electronics. Ideal for use in power supply, instrumentation, and industrial electronics. Explore more Switching Regulators and related power supply components with Recom and other top brands here at EnvMart for your electronics manufacturing and repair projects.
