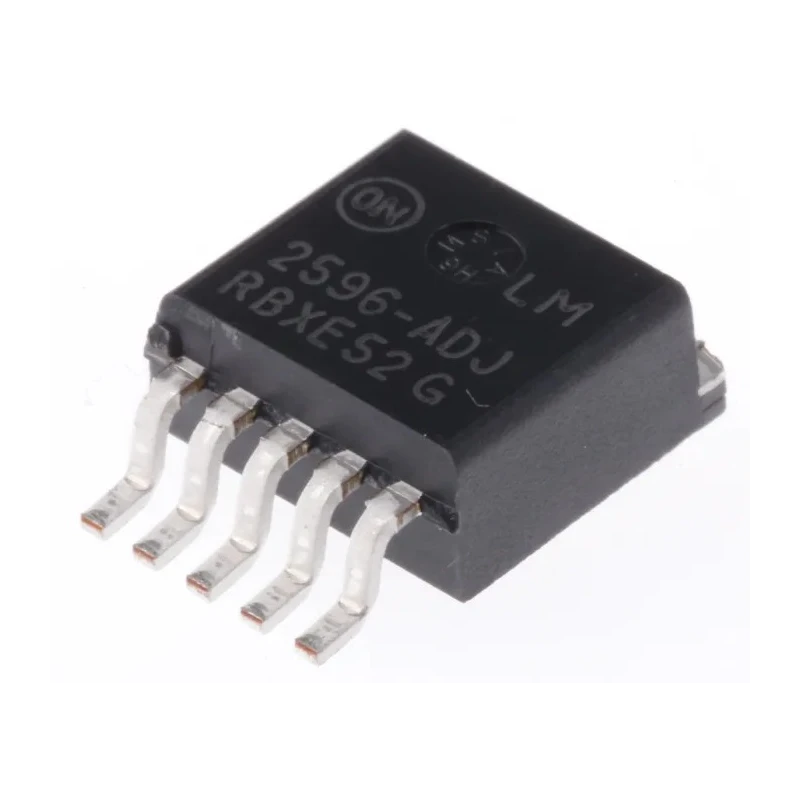

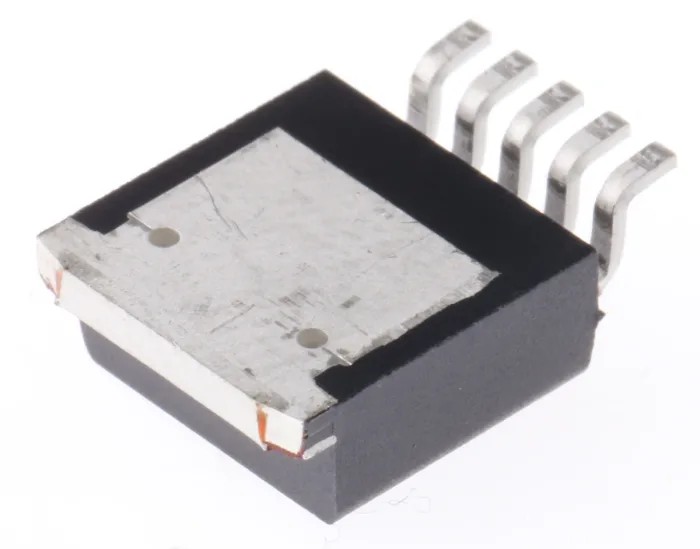

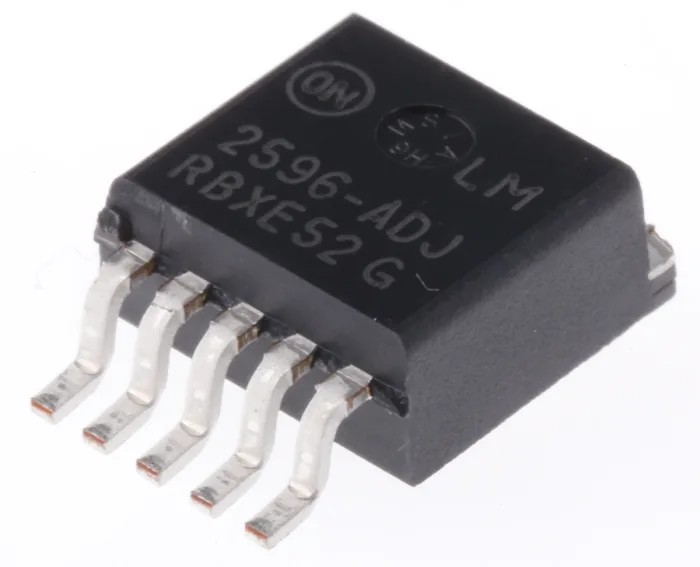

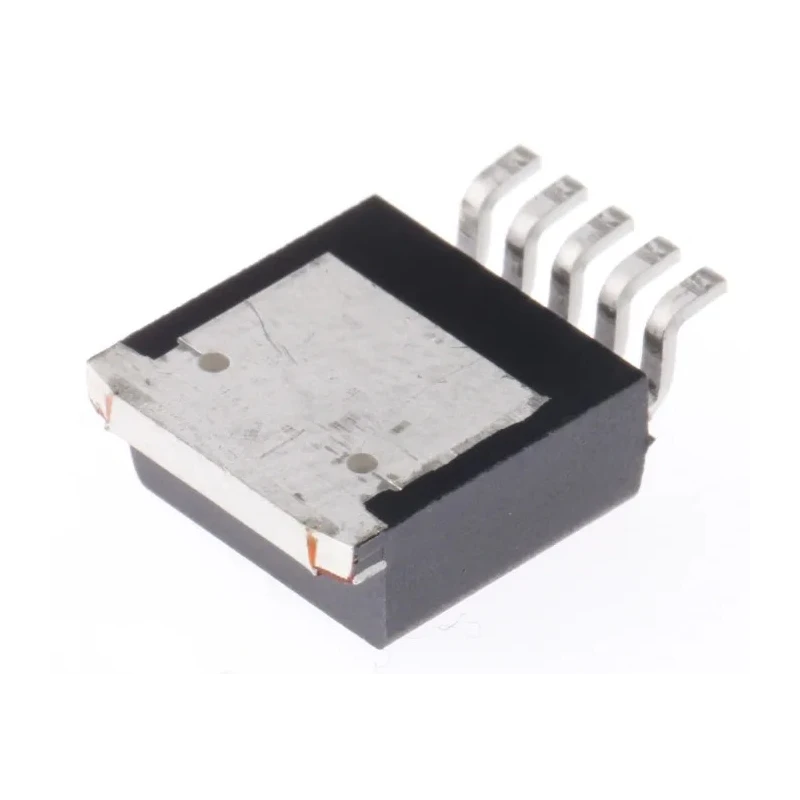

onsemi 5 Outputs Switching Regulator Surface Mount 37V Output Voltage 3 A Output Current LM2596DSADJG
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | onsemi |
| Efficiency | 73% |
| Length | 10.24mm |
| Model | LM2596DSADJG |
| Depth | 4.5mm |
| Width | 4.57mm |
| Mount Type | Surface |
| Series | LM2596 |
| Output Current | 3A |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Ripple and Noise | 50mV |
| Maximum Input Voltage | 40V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 5 |
| Output Voltage 1 | 37V |
Key Features
- Efficient switching regulator with 73% efficiency for power management.
- Supports up to 5 outputs ensuring versatile power supply options.
- Operates over a temperature range of -40°C to 125°C for industrial reliability.
- Low ripple and noise of 50mV for stable output performance.
- Compact TO-263 package with dimensions 10.24mm length, 4.57mm width, and 4.5mm depth.
- Suitable for step-down DC-DC converter applications in electronic systems.
- Compliance with RoHS standards ensures environmental safety.
- Maximum input voltage rating of 40V and minimum input voltage of 4.5V.
Product Description
onsemi LM2596DSADJG is a high-performance 5 outputs switching regulator designed for surface mounting applications. It features a stable 37V output voltage and supports a maximum output current of 3 A, tailored to meet the demands of various power supply requirements in electronic components and systems.
This switching regulator operates efficiently with 73% efficiency, delivering reliable power conversion with minimal energy loss. It maintains low ripple and noise levels at 50mV, ensuring clean output suitable for sensitive electronics.
The device is encapsulated in a compact TO-263 package, measuring 10.24mm in length, 4.57mm in width, and 4.5mm in depth, allowing space-saving on PCBs. It supports a wide operating temperature range from -40°C to 125°C, suitable for industrial and commercial environments.
The LM2596DSADJG is rated for a maximum input voltage of 40V and a minimum input voltage of 4.5V, providing flexibility across diverse power supply conditions. It is compliant with RoHS standards, promoting environmentally friendly manufacturing.
This regulator is ideally applied in step-down DC-DC converter circuits within electronics, power management ICs, and voltage conversion modules used in industrial automation, communications equipment, and embedded systems.
Efficient switching regulator with 73% efficiency for power management. Supports up to 5 outputs ensuring versatile power supply options. Operates over a temperature range of -40°C to 125°C for industrial reliability. Low ripple and noise of 50mV for stable output performance.
Compact TO-263 package with dimensions 10.24mm length, 4.57mm width, and 4.5mm depth. Suitable for step-down DC-DC converter applications in electronic systems. Compliance with RoHS standards ensures environmental safety.
Maximum input voltage rating of 40V and minimum input voltage of 4.5V. This product is part of the onsemi LM2596 series, known for robust power regulation solutions. Explore more Switching Regulators and voltage conversion products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 37V.
The LM2596DSADJG supports a maximum output current of 3 A.
It operates with an efficiency of 73%, ensuring effective power management.
The maximum input voltage rating for this model is 40V.
This switching regulator requires a minimum input voltage of 4.5V to function properly.
It operates over a wide temperature range from -40°C to 125°C, suitable for industrial applications.
The package measures 10.24mm in length, 4.57mm in width, and 4.5mm in depth.
This model supports up to 5 outputs, allowing versatile power supply options.
It maintains low ripple and noise levels of 50mV for stable output performance.
Yes, it is compliant with RoHS standards, promoting environmental safety.
This switching regulator is suitable for step-down DC-DC converter applications in various electronic systems.
It is designed for surface mounting, making it suitable for compact PCB layouts.
